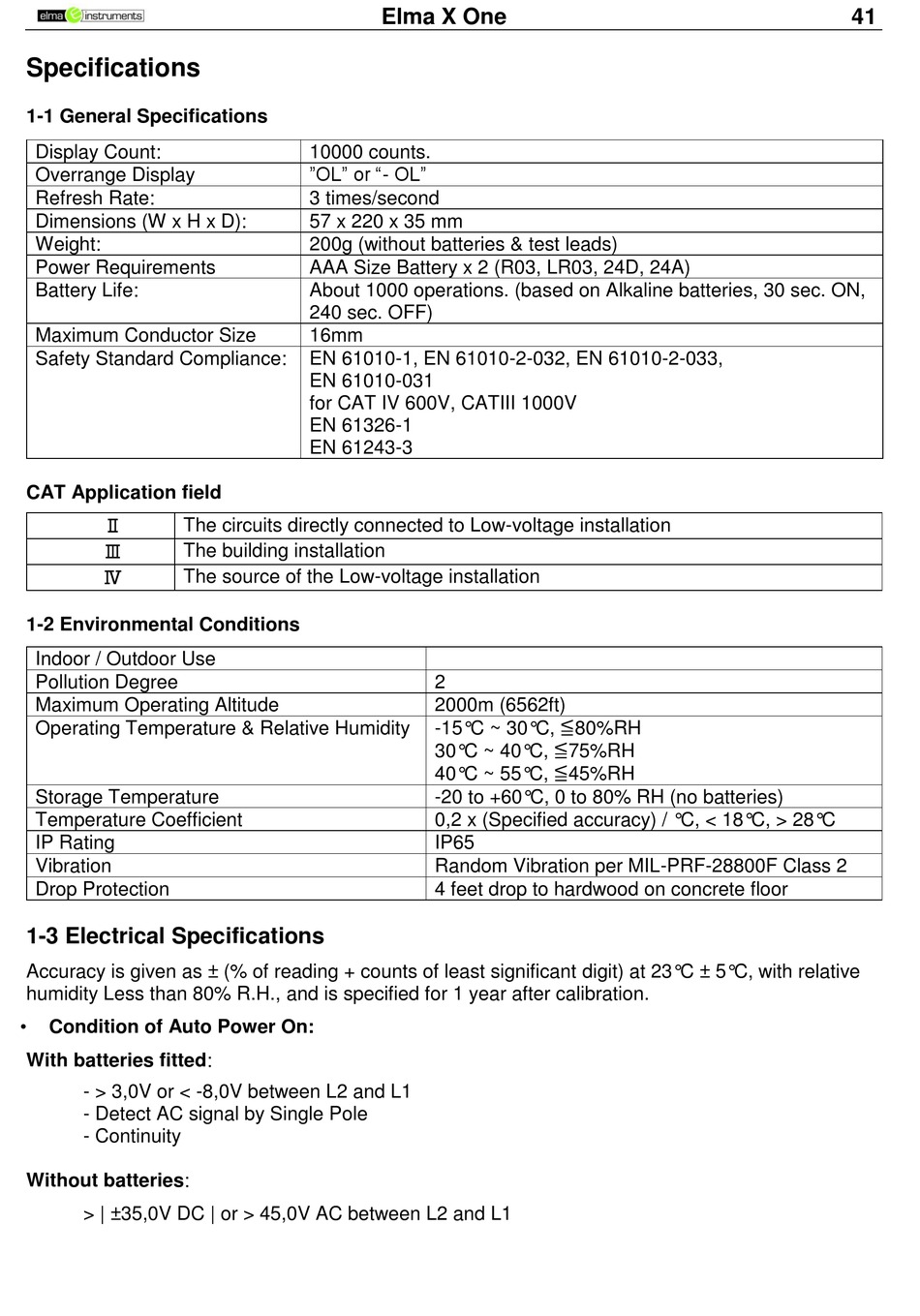

Specifications

1-1 General Specifications
Display Count:
Overrange Display
Refresh Rate:
Dimensions (W x H x D):
Weight:
Power Requirements
Battery Life:
Maximum Conductor Size
Safety Standard Compliance:
CAT Application field
Ⅱ
The circuits directly connected to Low-voltage installation
Ⅲ
The building installation
Ⅳ
The source of the Low-voltage installation
1-2 Environmental Conditions
Indoor / Outdoor Use
Pollution Degree
Maximum Operating Altitude
Operating Temperature & Relative Humidity
Storage Temperature
Temperature Coefficient
IP Rating
Vibration
Drop Protection
1-3 Electrical Specifications
Accuracy is given as ± (% of reading + counts of least significant digit) at 23°C ± 5°C, with relative
humidity Less than 80% R.H., and is specified for 1 year after calibration.
•
Condition of Auto Power On:
With batteries fitted:
- > 3,0V or < -8,0V between L2 and L1
- Detect AC signal by Single Pole
- Continuity
Without batteries:
> | ±35,0V DC | or > 45,0V AC between L2 and L1
Elma X One
10000 counts.
"OL" or "- OL"
3 times/second
57 x 220 x 35 mm
200g (without batteries & test leads)
AAA Size Battery x 2 (R03, LR03, 24D, 24A)
About 1000 operations. (based on Alkaline batteries, 30 sec. ON,
240 sec. OFF)
16mm
EN 61010-1, EN 61010-2-032, EN 61010-2-033,
EN 61010-031
for CAT IV 600V, CATIII 1000V
EN 61326-1
EN 61243-3
2
2000m (6562ft)
-15°C ~ 30°C, ≦80%RH
30°C ~ 40°C, ≦75%RH
40°C ~ 55°C, ≦45%RH
-20 to +60°C, 0 to 80% RH (no batteries)
0,2 x (Specified accuracy) / °C, < 18°C, > 28°C
IP65
Random Vibration per MIL-PRF-28800F Class 2
4 feet drop to hardwood on concrete floor
