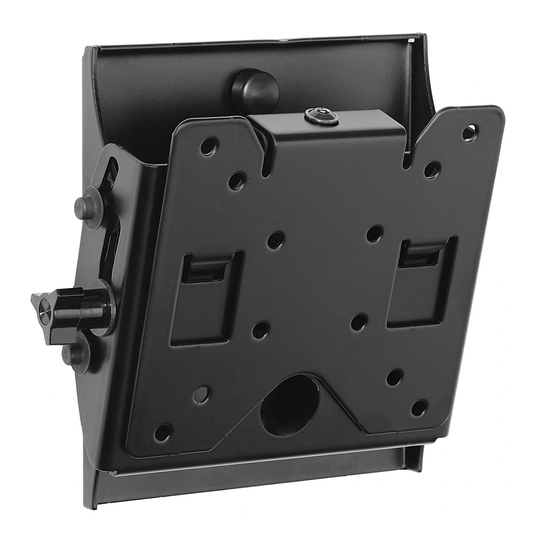

Universal tilt wall mount for 10" - 26" (25 - 66 cm) lcd flat panel screens
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Installation and Assembly:
SmartMount™ Universal Tilt Wall Mount for 10" - 26"
(25 - 66 cm) LCD Flat Panel Screens
Models: ST630P, ST630P-S, ST630, ST630-S, SWV120/BK, SWV120/SI
Features:
• Fits 10" - 26" (25 - 66 cm) LCD flat panel screens
• One-touch tilt for effortless positioning and adjustment of the screen
U L
C
US
©
Max Load Capacity: 80 lb (36.3 kg)
ISSUED: 02-05-09 SHEET #: 202-9336-1

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartMount ST630P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PEERLESS Mounts SmartMount ST630P

  • Page 1 Installation and Assembly: SmartMount™ Universal Tilt Wall Mount for 10" - 26" (25 - 66 cm) LCD Flat Panel Screens Models: ST630P, ST630P-S, ST630, ST630-S, SWV120/BK, SWV120/SI Features: • Fits 10" - 26" (25 - 66 cm) LCD flat panel screens ©...
  • Page 2: Table Of Contents

    Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts List ST630P ST630P-S ST630 ST630-S SWV120/BK SWV120/SI Description Qty Part # Part # Part # Part # Part # Part # adapter plate 095-1346 095-4346 095-1346 095-4346 095-1346 095-4346...
  • Page 4: Installation To Single Wood Stud Wall

    Installation to Single Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
  • Page 5: Installation To Solid Concrete Or Cinder Block

    Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
  • Page 6: Attaching Adapter Plate To Flat Panel Screen

    Attaching VESA 200 x 100 mm Plate to Hook Plate Attach adapter plates (J) to hook plate (B) using four M5 x 6 mm screws (K) and four #10 flat washers (L). Attaching Adapter Plate to Flat Panel Screen WARNING •...
  • Page 7 WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. FOR VESA ® 200 x 100 MOUNTING PATTERN: Choose hole pattern as shown.
  • Page 8: Installing And Removing Flat Panel Screen

    Installing and Removing Flat Panel Screen Attach screen to tilt assembly (B). Tighten M5 x 6 mm screw (H) to lock screen to tilt assembly. SCREEN Note: For security models, use security driver (I) to tighten M5 x 6 mm screws (H). To remove screen from mount, loosen screw (H) and lift screen off of mount.
  • Page 9 Anbringung und Zusammenbau: SmartMount™-Universal-Wandkipphalter für LCD-Flachbild- schirme von 10 - 26 Zoll (25 - 66 cm) Modelle: ST630P, ST630P-S, ST630, ST630-S, SWV120/BK, SWV120/SI Merkmale: • Für LCD-Flachbildschirme von 10" - 26" Zoll (25 - 66 cm) © • Mühelose Positionierung und Einstellung des Bildschirms durch einmaliges Antippen Maximale Tragfähigkeit: 80lb (36 kg) AUSGEGEBEN: 02-05-09 BLATT NR.: 202-9336-1...
  • Page 10 HINWEIS: Lesen Sie bitte das gesamte Anleitungsblatt durch, bevor Sie mit Anbringung und Zusammenbau beginnen. ACHTUNG • Beginnen Sie mit der Anbringung Ihres Peerless-Produkts erst, nachdem Sie die in dieser Montageanleitung enthaltenen Anleitungen und Achtungshinweise gelesen und sich gründlich mit ihnen vertraut gemacht haben. Falls Sie Fragen hinsichtlich irgendeiner der Anleitungen oder Achtungshinweise haben, wenden Sie sich in den USA bitte an den Peerless-Kundendienst unter der Rufnummer 1-800-865-2112.
  • Page 11: Teileliste

    Vergewissern Sie sich vor Beginn der Arbeiten, dass alle dargestellten Teile mit Ihrem Produkt mitgeliefert wurden. Teileliste ST630P ST630P-S ST630 ST630-S SWV120/BK SWV120/SI Beschreibung Anz. Teile Nr. Teile Nr. Teile Nr. Teile Nr. Teile Nr. Teile Nr. Adapterplatte 095-1346 095-4346 095-1346 095-4346 095-1346...
  • Page 12: Anbringung An Wand Mit Einer Holzständerreihe

    Anbringung an Wänden mit einer Holzständerreihe ACHTUNG • Bei der Anbringung muss darauf geachtet werden, dass die Wand die kombinierte Last von Bildschirm und allen Befestigungsteilen und -komponenten tragen kann. • Ziehen Sie die Schrauben fest genug an, dass die Wandplatte sicher befestigt ist, doch ohne sie zu überdrehen. Durch Überdrehen können die Schrauben beschädigt werden, wodurch ihr Haltevermögen stark reduziert wird.
  • Page 13: Anbringung An Massivbeton Oder Porenbetonstein

    Anbringung an Massivbeton und Porenbetonstein ACHTUNG • Bei der Anbringung von Peerless-Wandhaltern an Porenbetonstein muss sichergestellt werden, dass die tatsächliche Stärke des Betons, in den das Loch für die Betondübel gebohrt wird, mindestens 35 mm (1 3/8 Zoll) beträgt. Bohren Sie nicht in Mörtelfugen! Achten Sie darauf, dass die Anbringung an einem massiven Teil des Blocks erfolgt, im Allgemeinen mindestens 25 mm (1 Zoll) von der Blockseite entfernt.
  • Page 14: Anbringung Der Adapterplatte Am Flachbildschirm

    Befestigung der Adapterplatte an Hakenhalterung Verwendung der Montagemuster VESA 200 und 100 mm. Bringen Sie die Adapterplatten (J) mit den M5 x 6 mm Schrauben (K) und vier Unterlegscheiben Nr. 10 (L) an der Hakenplatte (B) an. Anbringung der Adapterplatte am Flachbildschirm ACHTUNG •...
  • Page 15 ACHTUNG • Sind die Schrauben nicht um drei volle Umdrehungen in die Löcher des Bildschirms eingeschraubt oder stoßen sie unten an und die Halterung ist noch immer nicht sicher befestigt, kann der Bildschirm beschädigt werden oder das Produkt kann versagen. BEI MONTAGEMUSTER VESA 200 x 100 Wählen Sie das Lochmuster (siehe Abbildung).
  • Page 16: Anbringung Und Abnahme Des Flachbildschirms

    Anbringung und Abnahme des Flachbildschirms Bringen Sie den Bildschirm an der Kippeinheit (B) an. Ziehen Sie die M5 x 6 mm Schraube (H) fest, um den Bildschirm an BILDSCHIRM der Kippeinheit zu befestigen. Hinweis: Verwenden Sie bei Sicherheitsmodellen den Sicherheitstreiber (I) zum Festziehen der M5 x 6 mm Schrauben (H).
