Installation and Assembly

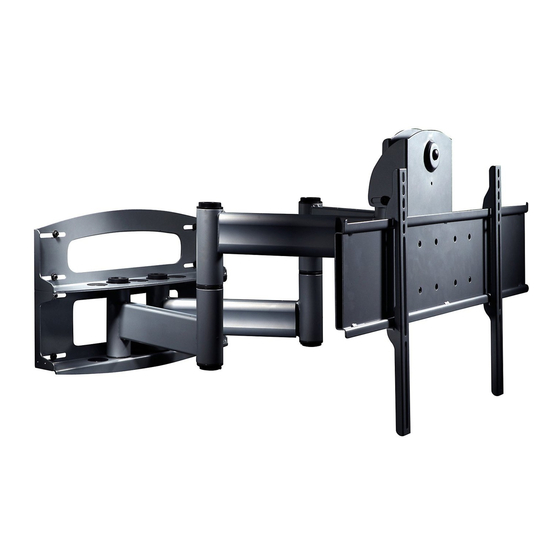

Swivel Double-Arm for 42" - 60" Plasma Screens
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
- Universal Articulating
Models: PLAV 70-UNL, PLAV 70-UNL-S
PLAV 70-UNLP, PLAV 70-UNLP-S
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Maximum UL Load Capacity: 200 lb (91 kg)
ISSUED: 06-05-06 SHEET #: 202-9142-4 12-06-06
Advertisement
Table of Contents
Related Manuals for PEERLESS Mounts PLAV 70-UNL
Summary of Contents for PEERLESS Mounts PLAV 70-UNL
- Page 1 Installation and Assembly - Universal Articulating Models: PLAV 70-UNL, PLAV 70-UNL-S Swivel Double-Arm for 42" - 60" Plasma Screens PLAV 70-UNLP, PLAV 70-UNLP-S This product is UL Listed. It must be installed by a qualified professional installer. Maximum UL Load Capacity: 200 lb (91 kg) 3215 W.
-
Page 2: Tools Needed For Assembly
Read instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307. -
Page 3: Wall Mount Parts List
Wall Mount Parts List PLAV 70-UNL PLAV 70-UNL-S Before you start make sure all parts listed are included with your product. PLAV 70-UNLP PLAV 70-UNLP-S DESCRIPTION QTY. PART # PART # A wall plate 201-1040 201-4040 B tilt-roll assembly 201-1042... - Page 4 Before you begin, make sure all parts shown are included with your product. Adapter Bracket Parts List PLAV 70-UNL PLAV 70-UNL-S PLAV 70-UNLP PLAV 70-UNLP-S Description Qty Part # Part # Part # Part # AA adapter bracket 201-1110 201-4110...
- Page 5 Security Adapter Bracket Fasteners M4 x 12 mm (6) M6 x 12 mm (4) M5 x 12 mm (4) M8 x 15 mm (6) 510-1079 520-1050 520-1064 M6 x 20 mm (4) 520-1068 520-9554 M5 x 25 mm (4) 520-1122 M8 x 25 mm (4) M4 x 25 mm (4) M6 x 25 mm (4)
-
Page 6: Installation To Wood Stud Wall
Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. - Page 7 Installation to Concrete Wall WARNING • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
- Page 8 WARNING • If you are uncertain that product is properly installed, call customer care. Note: There are three mounting positions. The center position is shown right. Arm assemblies must be mounted with one mounting hole separating them. Slide washers (J) over wall support arm axles (D).
- Page 9 Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on arm assembly (C). Insert one finishing cap (L) into each unused hole of wall plate (A). SWIVEL BOX Insert and tape carriage bolt (I) into top hole of tilt-roll assembly (B).
- Page 10 WARNING • Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV. Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed thread. SWIVEL BOX .25" Hook tilt-roll assembly (B) onto M10 screws (F).
-
Page 11: Installing Adapter Brackets
Installing Adapter Brackets Refer to Screen Compatibility Chart to determine the proper fasteners to use. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached. Place adapter brackets (BB or CC) on back of screen, align to holes, and center on back of screen as shown in figure 7.1. -
Page 12: Mounting And Removing Flat Panel Screen
Mounting and Removing Flat Panel Screen Refer to mount instruction sheet for attachment of adapter bracket to mount. Hook adapter brackets (BB or CC) onto adapter bracket (AA), then slowly swing screen in as shown. Turn screws clockwise at least six times to prevent screen from being removed as shown in detail 4. Tighten using allen wrench (DD). Screen can be adjusted horizontally if desired. - Page 13 Depending on the specific size & weight of the plasma, If it is too difficult to adjust roll of plasma, loosen articulating swing arm may be angled at different screws shown in figure 9.1 using a phillips screw- positions, causing plasma to appear to lean sideways driver.
