Installation and Assembly:

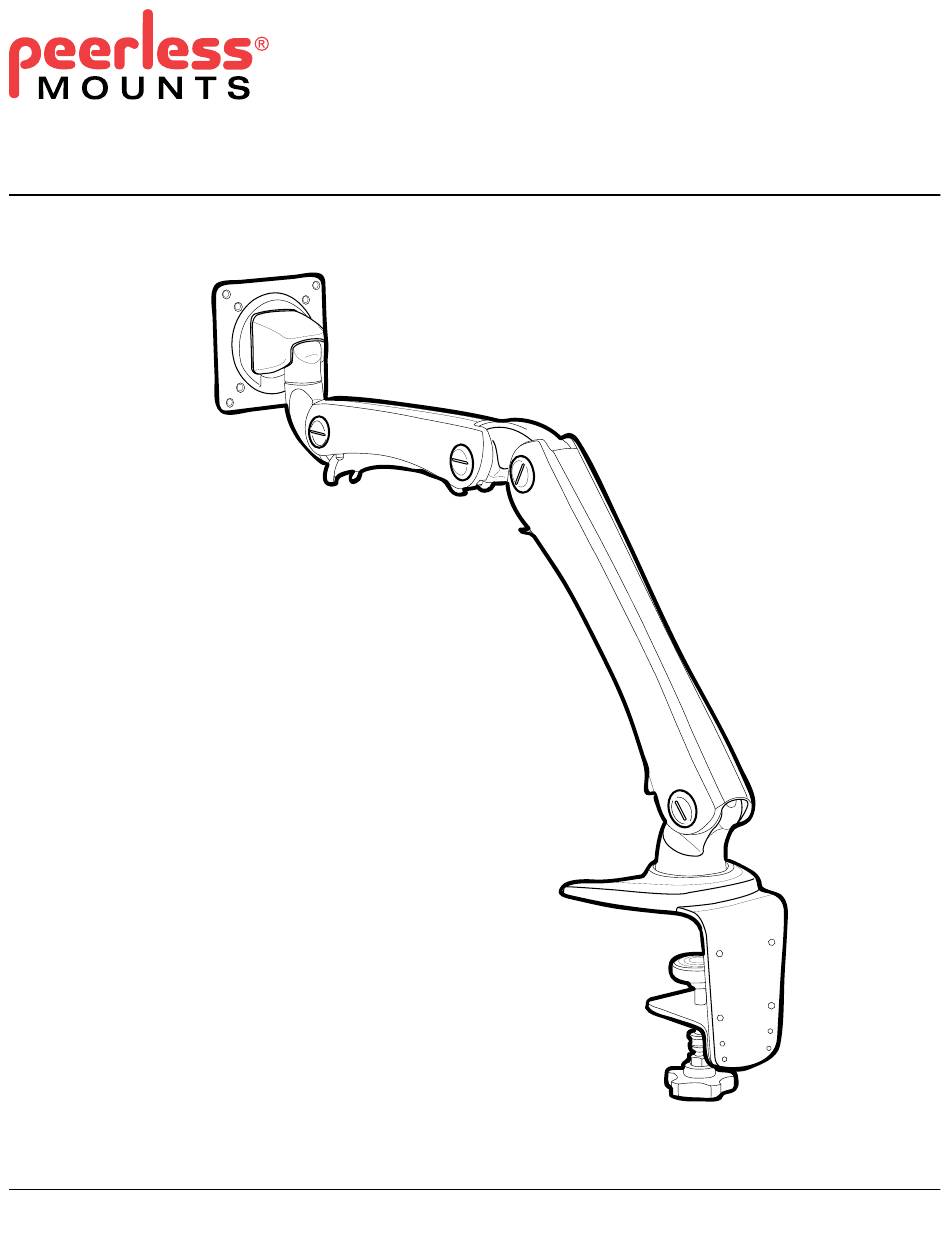

Desktop Two-Link Arm for 15" to 24" LCD monitors
Models: LCT-A1B1C, LCT-A1B1H
Max Load Capacity: 17.6 lb (8 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 02-18-09 SHEET #: 090-9163-1
Advertisement
Related Manuals for PEERLESS Mounts LCT-A1B1C
Summary of Contents for PEERLESS Mounts LCT-A1B1C
- Page 1 Installation and Assembly: Desktop Two-Link Arm for 15" to 24" LCD monitors Models: LCT-A1B1C, LCT-A1B1H Max Load Capacity: 17.6 lb (8 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com...
-
Page 2: Table Of Contents
NoTe: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List LCT-A1B1C LCT-A1B1H Description arm assembly small screen screw large screen screw 4 mm wrench bolt spring washer flat washer bottom washer 8 mm wrench Parts may appear slightly different than illustrated. -
Page 4: Installation To Mounting Surface
Clamp Installation Method NoTe: Do not remove safety band until installation Turn handle to tighten arm assembly (A) to is complete. mounting surface until firmly attached. Arm assembly (A) can be mounted to mounting surface with a thickness of 1/3" - 3.5" (10 - 89 mm). Insert the clamp onto mounting surface as shown below. -
Page 5: Installation To Screen
Installation to Screen When screws (B or C) are securely fastened to Attach front of arm assembly (A) to back of screen arm assembly (A), remove safety band. with four screws (B or C) as shown in detail 2 using VESA 75 or VESA 100 mounting pattern as shown in figure 3.1. -
Page 6: Control Bolt Tension Adjustment
Control Bolt Tension Adjustment NoTe: This product is factory set for a 19" (483 mm) monitor. When changing the size of the monitor, adjust the control bolt with M4 wrench as shown in figure 4.1. Adjust control bolt at top of arm assembly (A) with M4 wrench (D) as shown in figure 4.2. Bend upper arm to access control bolt cover.
