Installation and Assembly:

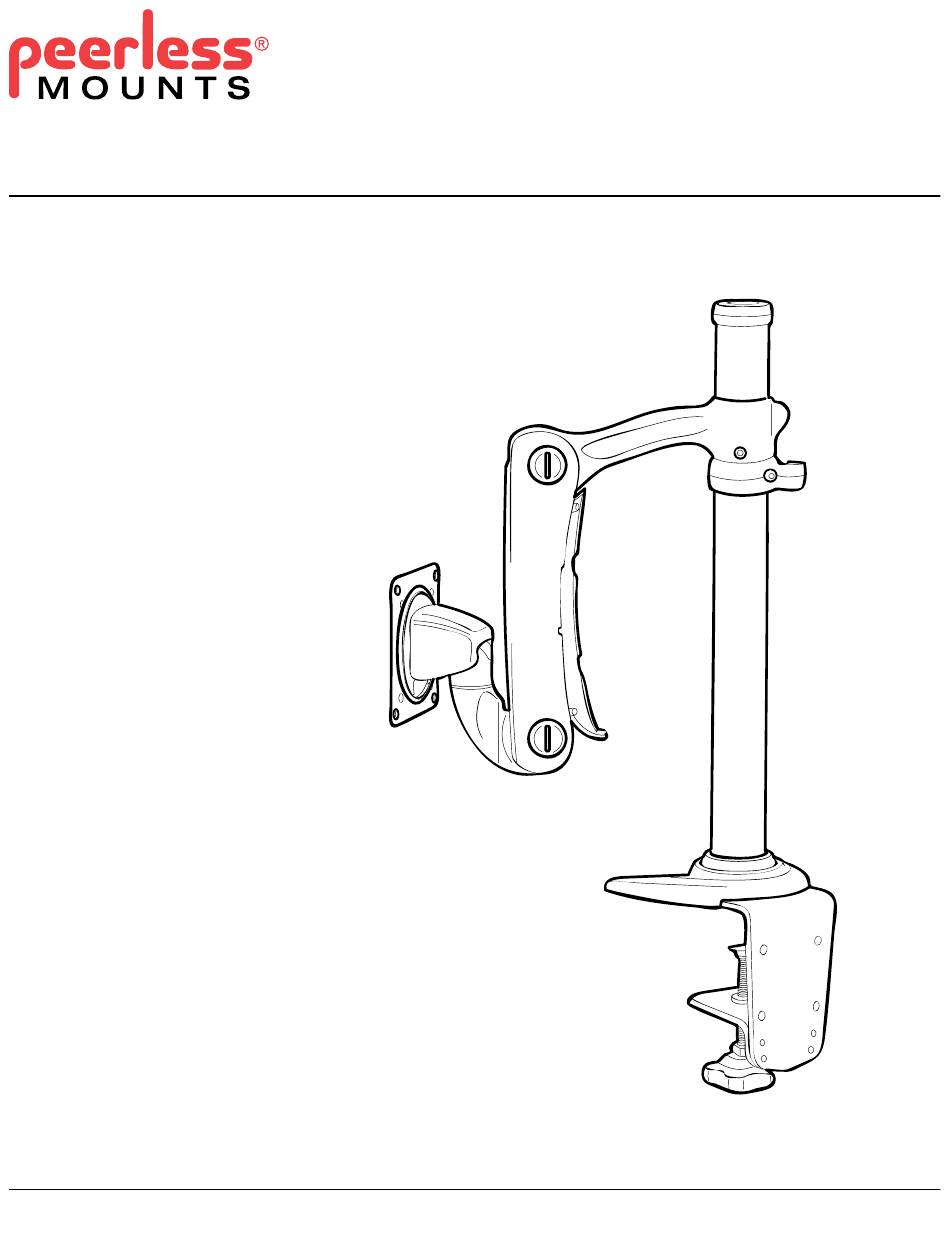

Desktop Two-Link Pole for 15" - 24" LCD monitors
Models: LCT-A1B3C, LCT-A1B3H
Max Load Capacity: 17.6 lb (8 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 02-18-09 SHEET #: 090-9165-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PEERLESS Mounts LCT-A1B3C
Summary of Contents for PEERLESS Mounts LCT-A1B3C
- Page 1 Installation and Assembly: Desktop Two-Link Pole for 15" - 24" LCD monitors Models: LCT-A1B3C, LCT-A1B3H Max Load Capacity: 17.6 lb (8 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com...
-
Page 2: Table Of Contents
NoTe: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List LCT-A1B3C LCT-A1B3H Description pipe assembly arm assembly M4 x 10 mm screws M4 x 16 mm screws bar bushing cable guide lower pipe cap upper pipe cap... -
Page 4: Installation To Mounting Surface
Clamp Installation Method Pipe assembly (A) can be mounted to mounting Turn handle to tighten pipe assembly (A) to surface with a thickness of 1/3" - 3.5" (10 - 89 mm). mounting surface until firmly attached. Insert the clamp onto mounting surface as shown below. - Page 5 Place bar bushing (e) through pipe and align with Attach lower pipe cap (G) to top of pipe set screw, then place arm assembly (B) onto pipe assembly (A) using two M4 x 8 mm screws (J). assembly (A). Attach upper pipe cap (H) to lower pipe cap as Adjust arm to desired height and tighten set screw shown below until click sound is heard.
-
Page 6: Control Bolt Tension Adjustment
Control Bolt Tension Adjustment NoTe: This product is factory set for a 19" (483 mm) monitor. When changing the size of the monitor, adjust the control bolt with 4 mm allen wrench (K) as shown in figure 7.1. Adjust control bolt at top of arm assembly (B) with 4 mm allen wrench (K) as shown in figure 7.2. Bend lower arm to access control bolt. -
Page 7: Installation To Screen
Installation to Screen Attach front of arm assembly (B) to back of screen with four screws (C or D) as shown in detail 3 using VESA 75 or VESA 100 mounting pattern as shown in figure 9.1. C or D fig. -
Page 8: Cable Management
Cable Management Loop cords through cable guide (F) and attach to arm using one M4 x 8 mm screw (J) as shown below. Cords may also route through arm assembly. Open gap to press fit cables as shown in detail 4. CABLE CABLE DeTAIL 4...
