Parts

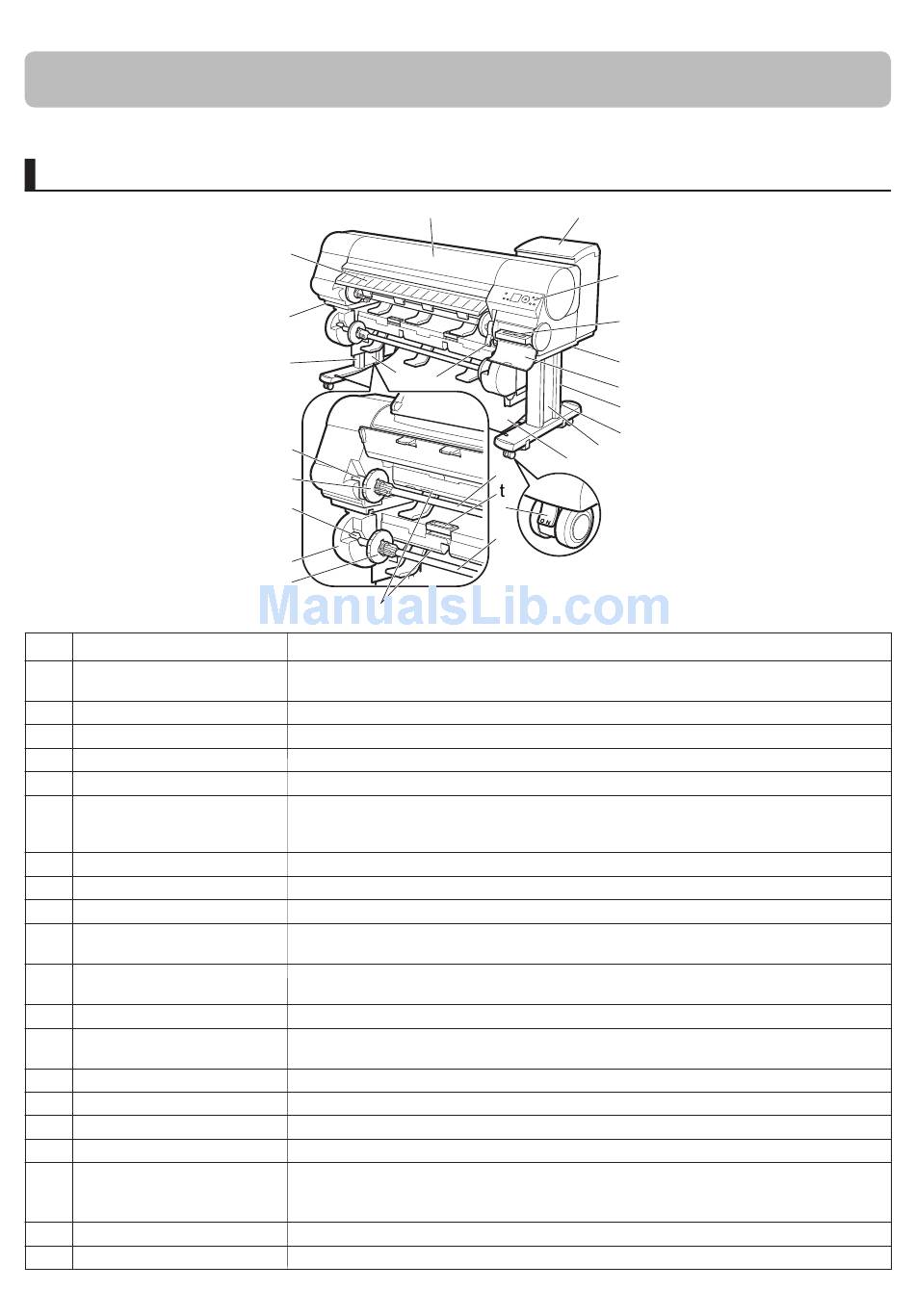

Names and functions of printer parts are as follows.
iPF825
Name
a Top Cover
b Ejection Guide
c Roll Holder Slot
d Roll Holder
e Protective Cloth for Sheets
f Paper Feed Slot
g Holder Stopper
h Ink Tank Cover
i Control Panel
j Release Lever
k Maintenance Cartridge
l Carrying Handles
m Maintenance Cartridge
Cover
n Stand
o Stand L
p Stand R
q Leg Covers
r Stopper
s Roll Unit
t Roll Unit Lever
a
b
l
o
q
j
c
g
c
s
g
f
Open this cover to install the Printhead , load paper, and remove any jammed paper from
inside the printer as needed.
Guides printed documents as they are ejected. Open this guide when loading a roll.
Slide the Roll Holder into this slot.
Load the roll on this holder.
A cloth tray that catches ejected sheets.
When loading a roll, insert the edge of the roll paper here. You can load rolls in two
positions, on the printer side in the Roll 1 (Upper) position and on the roll unit side in the
Roll 2 (Lower) position.
Secure rolls on the Roll Holder with this part.
Open this cover to replace an Ink Tank .
Use this panel to operate the printer and check the printer status.
Releases the Paper Retainer . Lift this lever toward the front of the printer when loading
paper.
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the
cartridge when it is full.)
When carrying the printer, have six people hold it by these handles under both sides.
Open this cover to replace the Maintenance Cartridge .
A stand that holds the printer. Equipped with casters to facilitate moving it.
The left leg of the Stand .
The right leg of the Stand .
Covers for Stand L and Stand R .
Locks the Stand casters.
Always release the Stopper before moving the printer. Moving the printer while the
Stopper is locked may scratch the casters or the floor.
A unit for loading a second roll.
Hold this lever to pull out the Roll Unit .
h
i
k
l
m
p
n
q
e
d
r
d
Operation
