Summary of Contents for Guldmann GLS5
-
Page 2: Table Of Contents

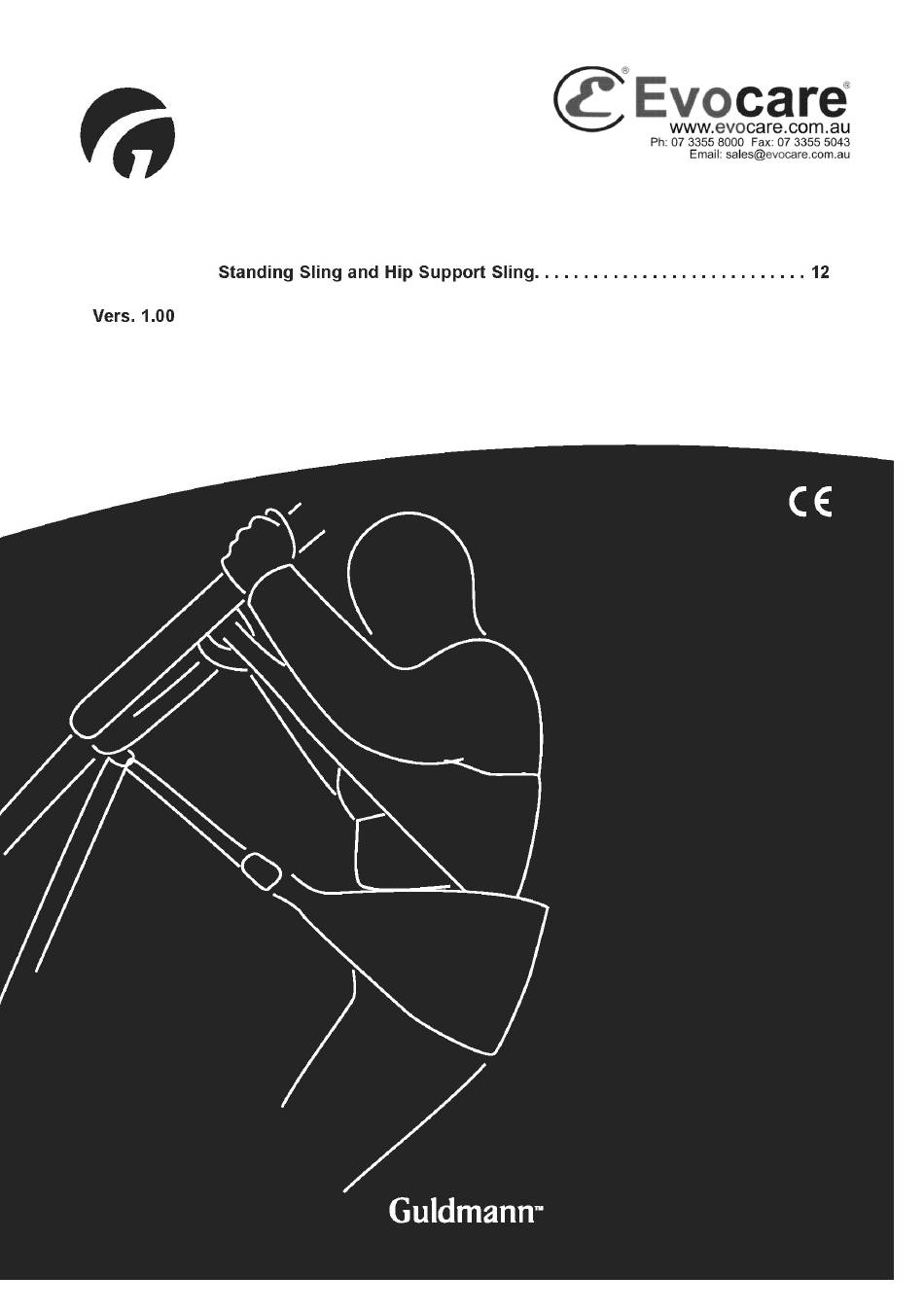

GB . . . . . . . . Standing .Sling .and .Hip .Support .Sling Vers. 1.00 Item nos: Standing Sling 28336 28337 L/XL Hip Support Sling 28338 One size 1 .00 . . . . . . . . . . Purpose .and .use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.01 . -
Page 3: Purpose .And .Use

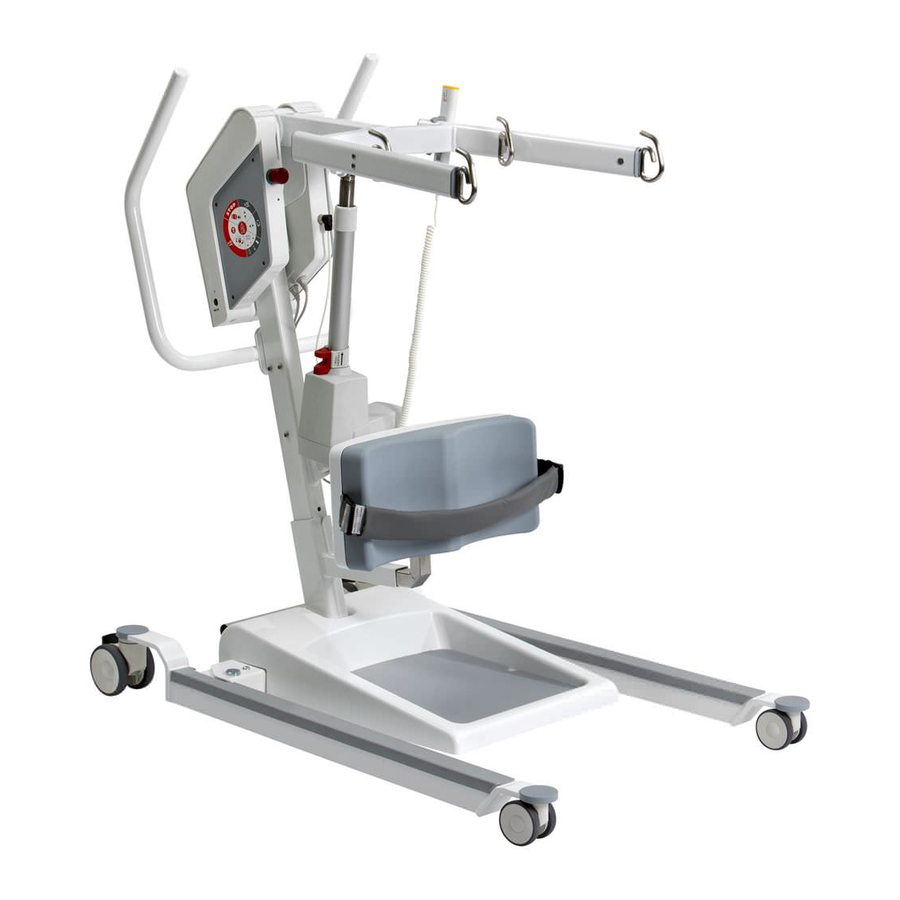

The maximum nominal load of 205 kg must not be exceeded. • The helper pays attention to the well-being of the user when using the sling. • The sling is used with the active lifter from Guldmann. 1 .03 . Important/Precautions •... -
Page 4: Use
Guldmann shall not be liable for faults or accidents due to incorrect use of the standing sling, or for reasons of inadequate attention on the part of the helper or user. -
Page 5: Disposal Of Slings
Is .the .sling’s .label .present, .legible .and .complete? Missing, illegible or incomplete sling label(s) could make identification of appropriate size of the sling, function of sling, and or weight limit capacity of the sling impossible. Are .the .lifting .straps .and .stitches .intact? •... - Page 6 Safe .Operating .Practices .with .Slings Considerations for damaged or defective slings and taking them out of service: Withdraw the sling from service if one or more of the following conditions are present: 1. chemical or caustic burns 2. melting or charring of any part of the sling 3.
- Page 7 condition of the sling. Not intended to represent all potential inspection steps or all potential aspects of product management program. Judgment of inspec- tor/site prevails. Sling .inspection .technique The sling inspection procedure should be thorough, systematic and con- sistent; both visual and “hands on” inspection techniques are recommen- ded.
-
Page 8: Lifetime
(the “Warranty Period”). If a valid claim is made during the Warranty Period for malfunction or equipment defect, Guldmann will repair or replace the equipment at no additional cost to you. Guldmann retains sole discretion as to whether the equipment will be repaired or repla-... - Page 9 The warranty does not cover any part of the equipment which has been altered or changed in any way by the user or others. Guldmann does not warrant that the lifting device functions will meet your requirements, be uninterrupted or error free.
-
Page 10: Placing .The .Slings .- .Standing .Sling
6 .00 . Placing .the .slings .– .Standing .Sling Note: Label must be facing away from the user and must not be turned upside down. Place the sling on the user’s shoulders and / or the chair’s backrest. Ask the user to lean forward and let the sling go behind the user’s back positioning the sling two fingers beneath the shoulder blade and above the... - Page 11 Place the user’s feet onto the foot plate and adjust the knee pad - the top of the knee pad should be level with the top of the shin on a distance of two fingers below the knee joint. Optional – if the user has a tendency to have involuntary movements you can use the calf strap to ensure the user’s feet do not come off the foot plate.
-
Page 12: Placing .The .Slings .- .Hip .Support .Sling .With .The .Standing .Sling
7 .00 . Placing .the .slings .– .Hip .Support .Sling .with .the .Standing .Sling Attachment .of .the .hip .support .straps The support straps are looped at one end and have a buckle at the other. Thread the looped end through the gate on the boom and attach over the push handle bar as seen in the figure below. - Page 13 Attach the hip support sling to the straps snapping the buckle together. Raise the lifting boom to gain tension on both slings – Ensure that the sling is secure and attached before continuing with the lift. Adjust the hip support straps through the buckle and continue.
