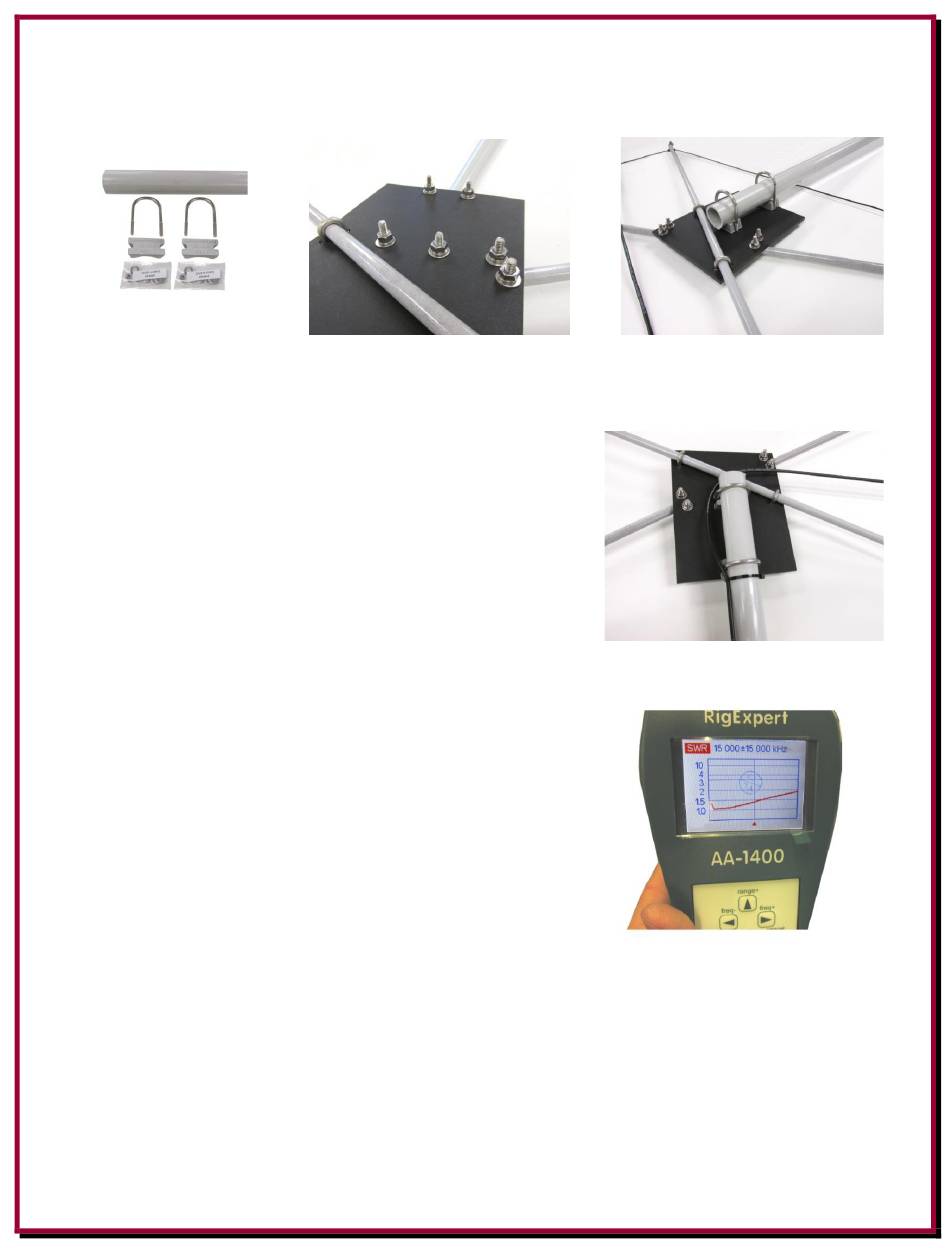

20. Install the 1-1/2" fiberglass rod (handle for the antenna) to the center board using the saddle
clamps as shown below. Evenly tighten the U-Bolts in place. Do not over tighten.
21. Route the coaxial cable as shown and use a zip tie to hold it
in place. Do not over tighten the zip tie, you just want it
snug.
22. Use an antenna analyzer to verify the antenna is properly
assembled and tunes and there is no shorted coaxial cable.
The reading is typically 1:1 to 2:1 when swept as shown in
the photo.
