DX Engineering DXE-NOISELOOP-INS Series Quick Start Manual page 7

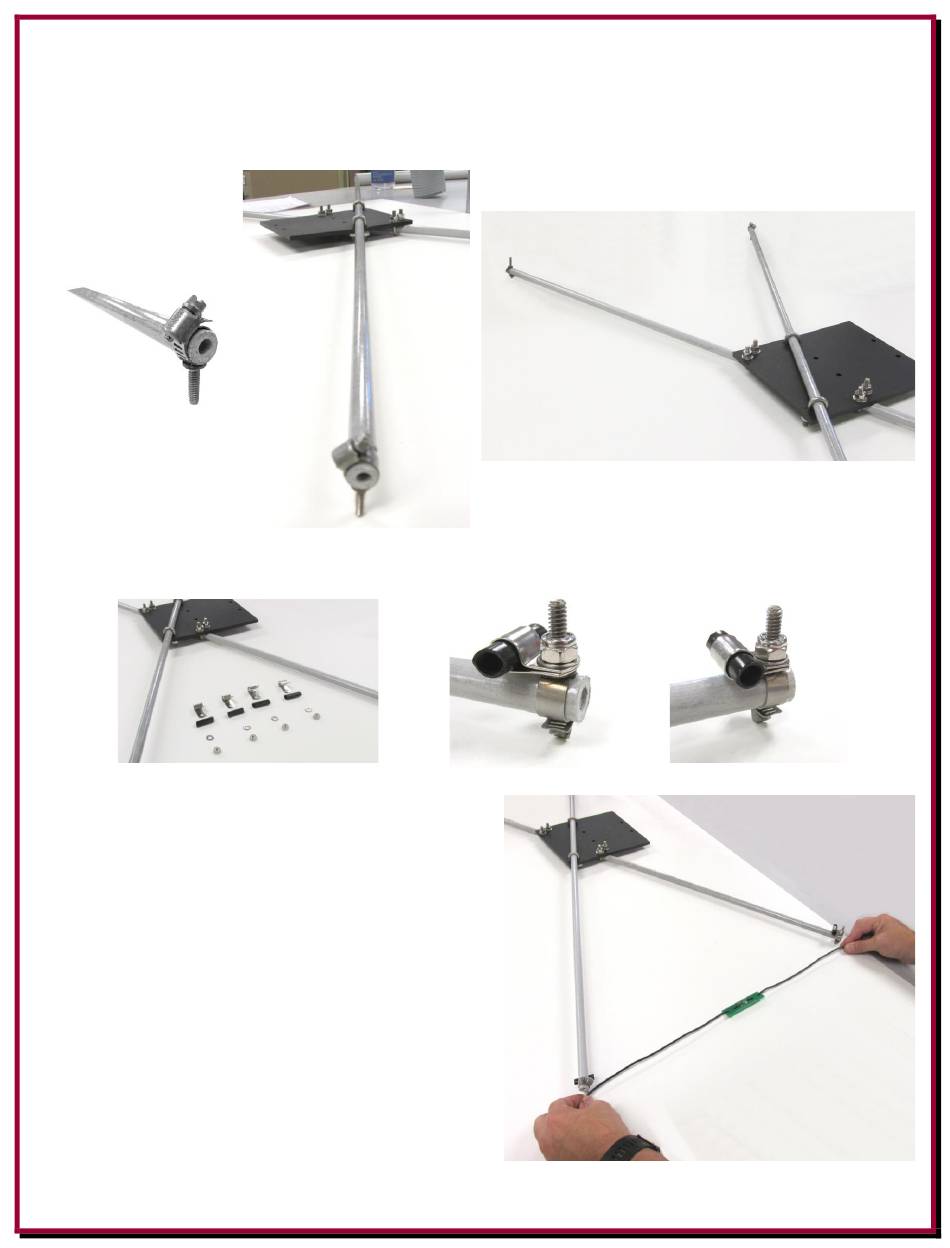

15. Using the element clamp with mounting stud, install one to the each of the ends of the 1/2" OD
fiberglass rods as shown. Note the direction of the mounting studs. One set is the opposite
direction than the other. This keeps the antenna wire centered front to back. Tighten the
element clamps in place.
16. Install one p-clamp, wire guide, flat washer and Nyloc hex nut onto each of the element stud
clamps as shown. Tighten in place.
17. Take the resistor PCB that has the two antenna
wires soldered in place and run each wire
through the wire guides as shown. Note the
position of the center board. Keep the resistor
PCB centered between the two rods as shown.
- 6 -
