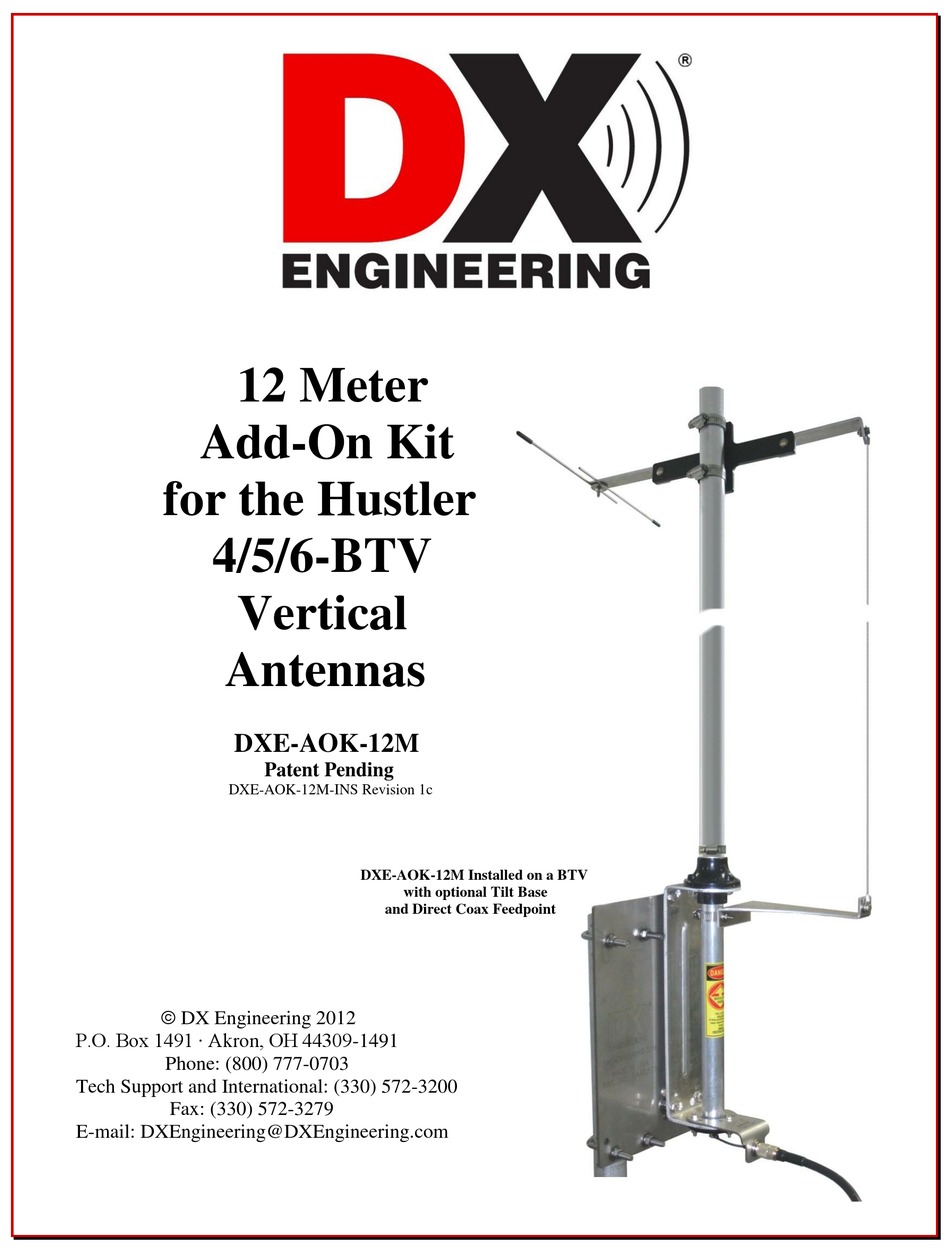

12 Meter
Add-On Kit
for the Hustler
4/5/6-BTV
Vertical
Antennas
DXE-AOK-12M
DXE-AOK-12M-INS Revision 1c
DX Engineering 2012
P.O. Box 1491 ∙ Akron, OH 44309-1491
Phone: (800) 777-0703
Tech Support and International: (330) 572-3200
Fax: (330) 572-3279
E-mail: DXEngineering@DXEngineering.com
Patent Pending

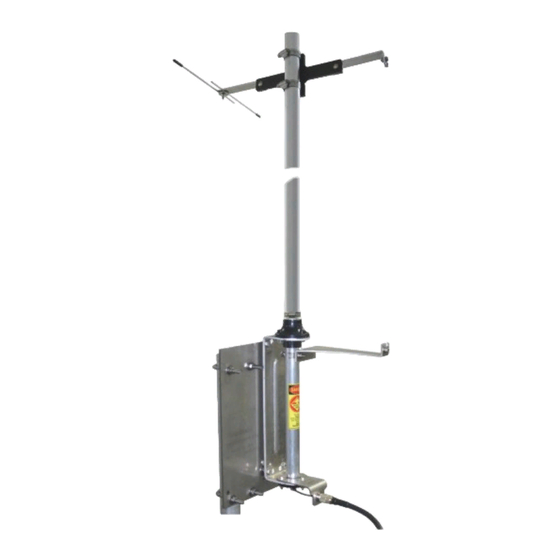

DXE-AOK-12M Installed on a BTV
with optional Tilt Base
and Direct Coax Feedpoint
Advertisement
Table of Contents
Related Manuals for DX Engineering DXE-AOK-12M
Summary of Contents for DX Engineering DXE-AOK-12M
- Page 1 4/5/6-BTV Vertical Antennas DXE-AOK-12M Patent Pending DXE-AOK-12M-INS Revision 1c DXE-AOK-12M Installed on a BTV with optional Tilt Base and Direct Coax Feedpoint DX Engineering 2012 P.O. Box 1491 ∙ Akron, OH 44309-1491 Phone: (800) 777-0703 Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 E-mail: DXEngineering@DXEngineering.com...
- Page 2 The DX Engineering DXE-AOK-12M kit adds 12 meter coverage to the Hustler BTV series of vertical antennas without giving up any existing band coverage. This kit will operate across the entire 12 meter band with an SWR of 1.5:1 or less and adds negligible wind loading to the antenna.
- Page 3 Parts List Item # Description Quantity Figure 1 12 M Add On Kit - Bottom Bracket 12 M Add On Kit - Top Bracket 12 M Add On Kit - Mounting Plate FLEX-WEAVE™ Wire assembly, 14 ga. with soldered terminals 1-1/4"...
- Page 4 Assembly Before you start installation, measure the low SWR frequencies of your Hustler BTV on each band and record those measurements. This will assure your antenna is working properly before adding the 12 meter kit, and aid in making minor adjustments afterwards, if needed. When installing stainless steel hardware, it is suggested that UMI-81343, 81464, DXE-NSBT8, NMBT8 - Never- Seez or Anti-Seize be used to prevent thread galling on stainless steel.
- Page 5 The positioning of the 12 meter kit must be such that it does not interfere with the tilting of the antenna. If you are using a DX Engineering Tilt-Base, tilt the antenna down to make installation of this kit to the Hustler BTV.
- Page 6 Connect the FLEX-WEAVE™ 12 meter wire assembly to the top bracket using the hex bolt, flat washers, star washer, split washer and nut as shown below. Final positioning of the top and bottom brackets should be done so the FLEX-WEAVE™ 12 meter wire is parallel to the Hustler BTV lower element.
- Page 7 The 12m add-on kit electrically couples to the rest of the vertical and does have some influence on the tuning of adjacent bands. If retuning is required make minor adjustments as necessary. Refer to the DX Engineering BTV Installation and Assembly Guide available from DX Engineering at: www.dxengineering.com...
- Page 8 Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
