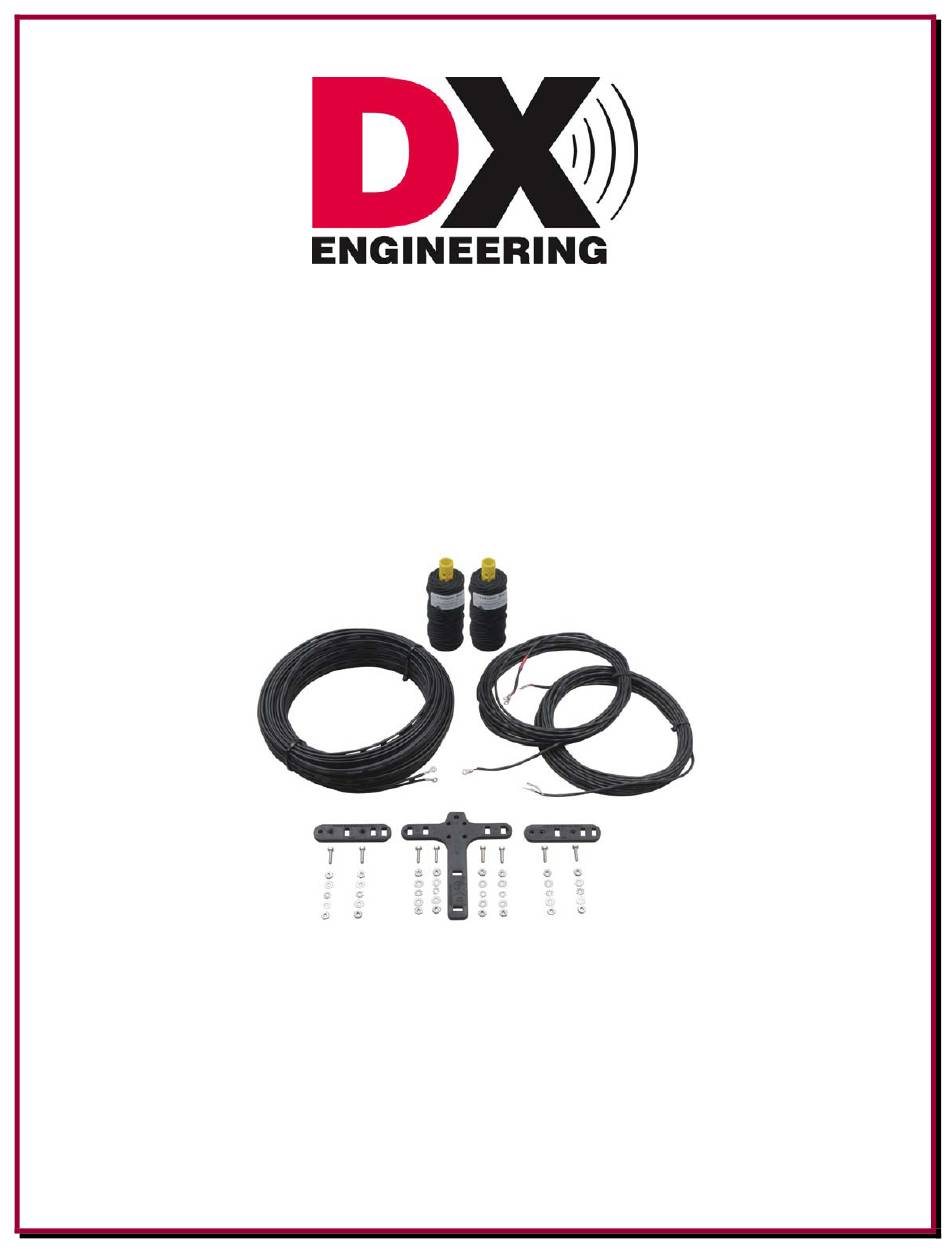

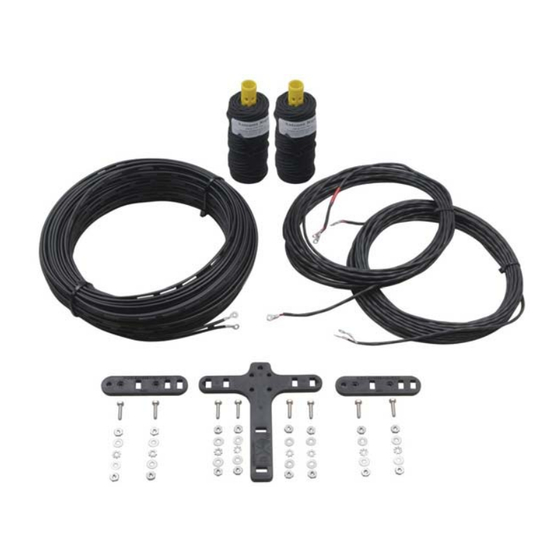

  • Page 1 Linear-Loaded 160m Dipole Patent Pending DXE-SWA-148 Rev 1 © DX Engineering 2006 P.O. Box 1491 · Akron, OH 44309-1491 Phone: (800) 777-0703 ·Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 · E-mail: DXEngineering@DXEngineering.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Mounting Considerations Installation Feedline Feedline Length Calculator Assembly Cenetr T Support Support Line Antenna Conenctions Wire Element Connections End-Insulator Connections Tuner Connections Tuning Addendum 9-10 Optional Accessories Technical Support and Warranty - 2 -...
  • Page 3: Introduction

    65 feet of premium ladder feedline and 200 feet of double-braided UV-resistant Dacron mounting rope. Stainless steel hardware is used for all connections. The DX Engineering Linear-Loaded Multi-Band Dipole can be used successfully with the balun incorporated in most high quality antenna tuners to obtain a low SWR across the entire frequency range.
  • Page 4: Feedline

    This length can be calculated using the following formula or use Table 1. The DX Engineering 300 Ω ladder line has a VF of 0.88. Note: It might be more convenient to use an external 1:1 balun and convert to coax rather than add additional 300Ω...
  • Page 5: Feedline Length Calculator

    Lowest Frequency on which the Make Feedline an ODD Multiple of This Length in Antenna Will be Used (MHz) Feet (1, 3, 5, 7, etc.) VF is 0.88 (DX Engineering 300 Ω ladder) 60.1 30.9 15.4 10.1 10.7 24.9 Table 1: 1/8-Wavelength Feedline Calculator Example: To use this antenna from 160m to 10m, the feedline should be in odd 1/8-wavelength multiples on 160m.
  • Page 6: Assembly Cenetr T Support

    Assembling the Dipole Center-T Support The center-T support has pre-drilled holes for attachment of the wire elements, feedline and support rope. Support Line The center-T support’s top hole is used for the attachment of a messenger line that is used to provide support for the antenna wire and feedline.
  • Page 7: Antenna Conenctions

    Locate the ends of the wire elements marked with red tape. These ends connect to the center-T support. With the DX Engineering Logo on the center-T support facing up, feed this element wire down through one side of the notched slot of the center-T support. Next, route the element wire back up through the inner slot and attach the red wire lug to the lower left terminal.
  • Page 8: End-Insulator Connections

    Install hardware and wire element ends as shown in Figure 4. Figure 4: Assembled End Bracket With the DX Engineering.com lettering facing down, and the notched edge of the end slot facing up, route the wire down through the notched end slot, back up through the next slot, down around the bracket and back up through the slot between the mounting hardware.
  • Page 9 A high quality 1:1 current balun is ideal for this antenna and is available from DX Engineering (part number DXE-BAL050-H10-AT). This balun provides better balance, often has lower loss, and is more tolerant to load impedance and balance variations than most internal tuner baluns.
  • Page 10: Optional Accessories

    DX Engineering Current Baluns • 5, 10 and 10 KW+ Baluns and Current Chokes • High efficiency, low loss—W8JI design • All ratios available Feedline Current Chokes • Reduce RFI and pattern distortion • Prevent feedline radiation … … –...
  • Page 11 PolyPhaser Lightning Protectors • 50 Ω DC Block, 1.5-400 MHz, UHF connectors PPC-IS-50UX-C0 Flange Mount, 2 KW at HF PPC-IS-B50HU-C0 Bulkhead Mount, 3 KW at HF PPC-IS-B50LU-C0 Bulkhead Mount, 2 KW at HF PPC-IS-B50LN-C0 Flange Mount, Type N, 2 KW PPC-IS-RCT Rotor Control, 8-line Copper Ground Strap and Clamps •...
  • Page 12: Technical Support And Warranty

    All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
