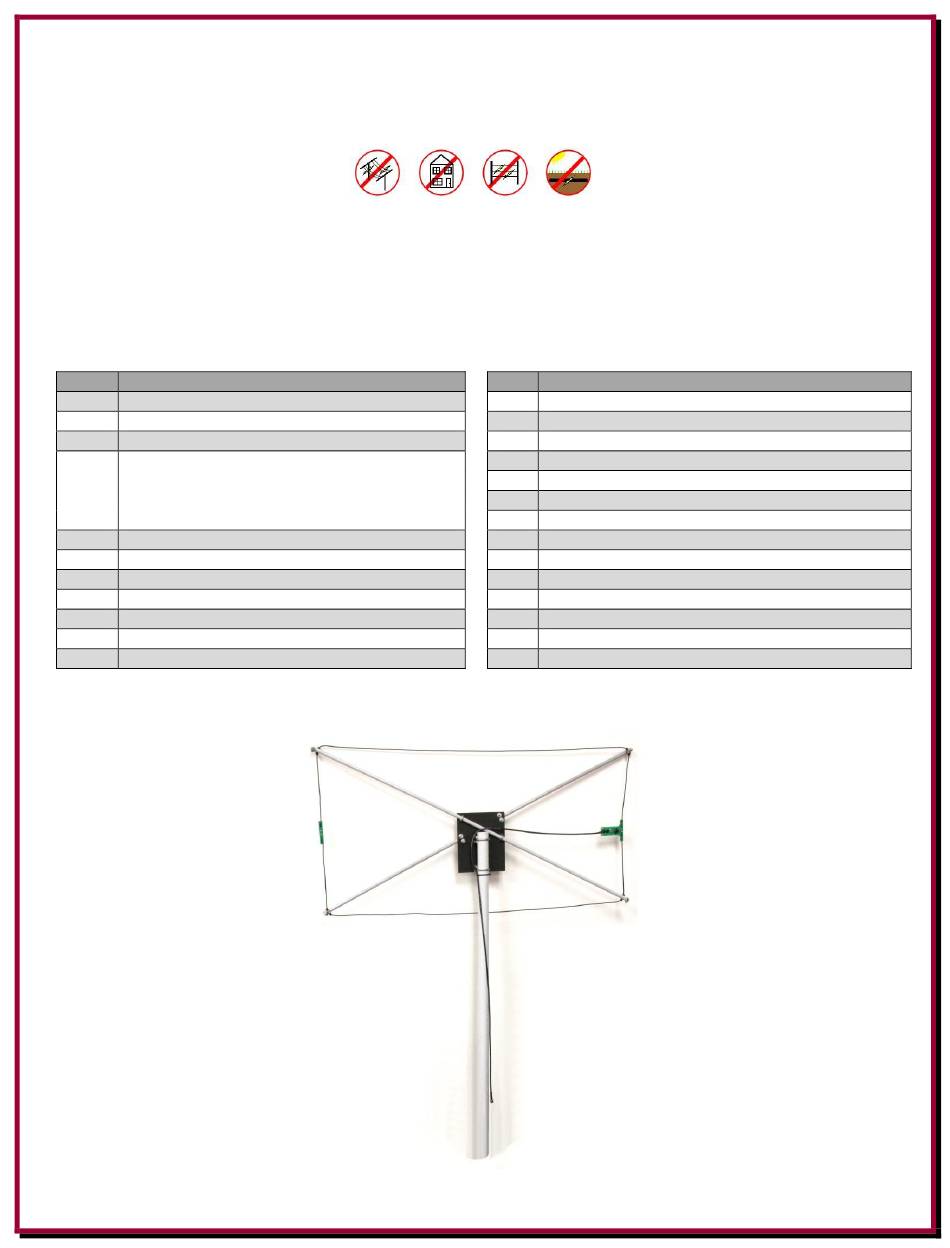

Safety Considerations; Parts List - DX Engineering DXE-NOISELOOP-INS Series Quick Start Manual

Safety Considerations

USING ANY ANTENNA NEAR POWER LINES IS DANGEROUS
Warning: Do not use the Receive Portable Flag Antenna near overhead power lines or other electric light or
power circuits, or where it can come into contact with such circuits. When using the antenna, take extreme
care not to come into contact with such circuits, because they may cause serious injury or death.

Parts List

QTY
13 ft Antenna Wire, 14 ga, Black Relaxed PVC Insulation
1 Binocular Core, Mix 73, 0.3H x 0.4W x 0.6L
1 Coax Cable, RG-58AU, BNC Male Connector Installed
DX Engineering Hardware - includes the following:
2 - Hex Nut - Stainless Steel, 1/4-20
6
2 - Flat Washer - Stainless Steel, 1/4"
2 - Split Washer - Stainless Steel, 1/4"
2 DX Engineering Saddle, 1-1/2"
4 Element Clamp with stud, Stainless Steel, 1/2"
2 Fiberglass Tube, 1/2" OD, .120" wall, 4 feet long
1 Fiberglass Tube, 1-1/2" OD, .120" wall, 4 feet long
4 Hex Nut, Nyloc, Stainless Steel, 10-24
2 ft Magnet Wire, Green, 28 ga, Nysol
1 ft Magnet Wire, Red, 28 ga, Nysol
This kit will typically take between 1 and 2 hours to build.
WARNING!
Description QTY
1 PCB, Feed Point
1 PCB, Resistor
4 P-Clamp, Stainless Steel, 0.3125"
1 Resistor, 680 ohm, 1/4 w
1 Shrink Tube with Adhesive, 3/8" OD, 1.5" Length
1 Starboard Center, Black, Drilled, 6.5" x 8" x 1/4" thick
1 Tape, Double Sided, approx. 0.3" Wide x 0.5" Long
1 Tube, Teflon, 13 AWG, .076" ID x 1.2" long
4 Tube, Wire Guide, 5/16" OD x 0.17" Long
4 U-Bolt, Stainless Steel, 1/2", 1/4-20 x 0.5 Thread Length
2 U-Bolt, Stainless Steel, 1-1/2", 1/4-20 x 0.5 Thread Length
4 Washer, Flat, Thin, Stainless Steel, #10 x 1/2"
4 Zip Tie, 11" Long
1 Instruction Manual
