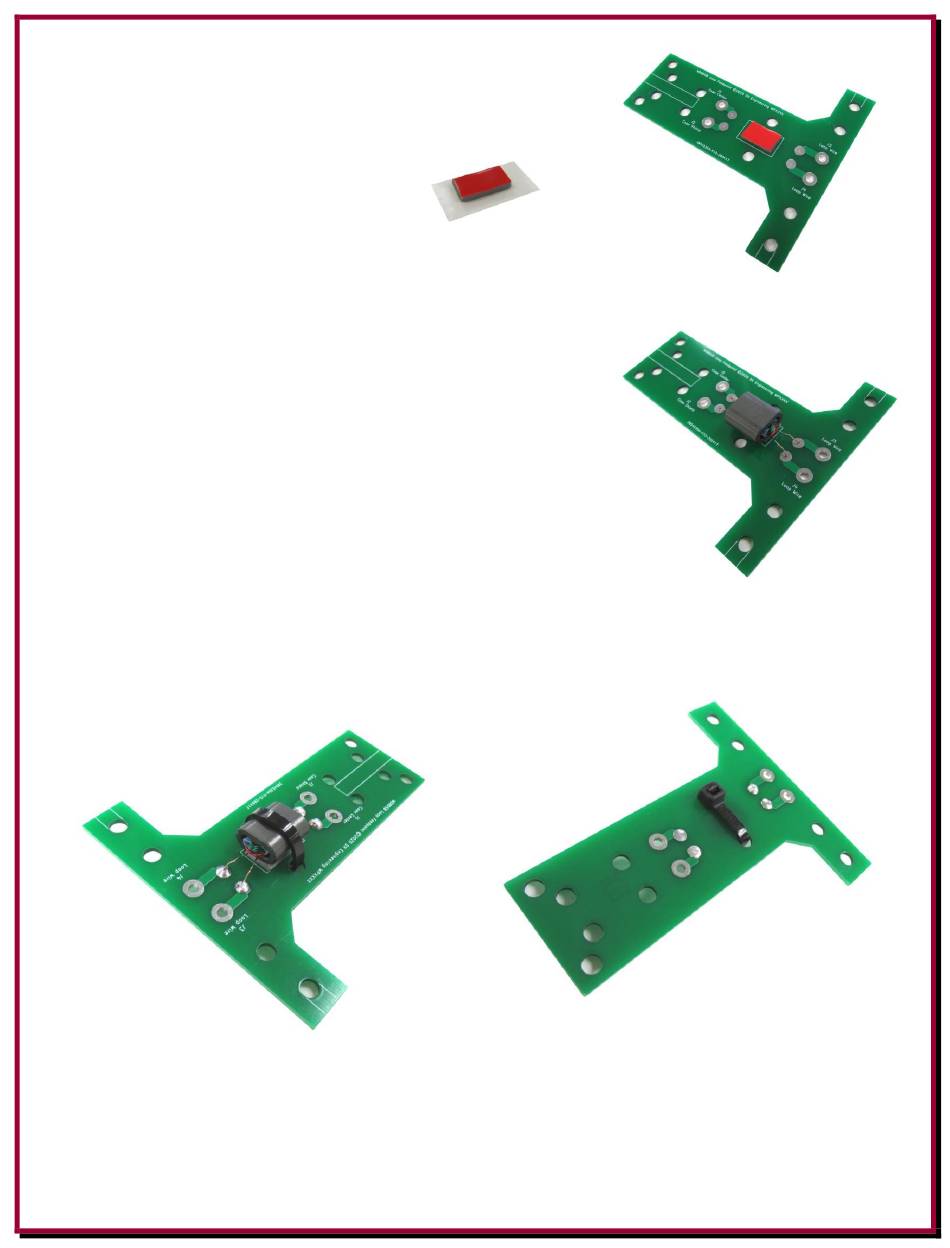

5. Attach the double sided tape to the feed point PCB, as shown.
Then remove the top paper exposing the adhesive.
6. Press the transformer on the double sided tape on to the feed
point PCB and run the wires through the feed point PCB as
shown. Note colors of the wires in photo. The green wires
(secondary) connect to the "Loop Wire" holes, the red wires
(primary) connect to the holes near the Coax connections.
7. Solder the wire leads in place. Trim wires.
8. Use one zip tie to hold the transformer in place on the feed point PCB as shown. Do not over
tighten the zip tie.
