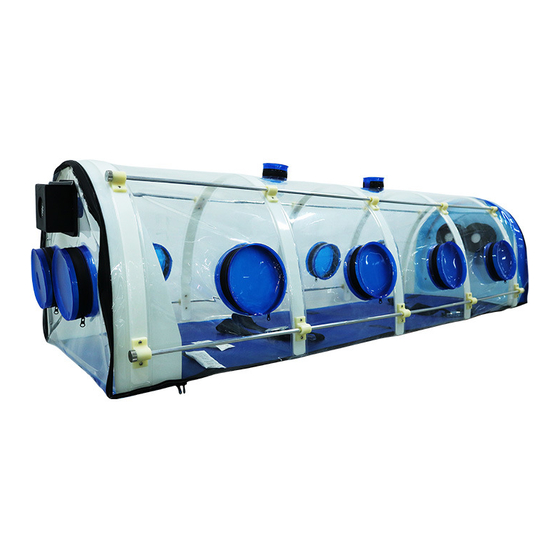

Biological Isolation Chamber
BFG Series
User Manual
BIOBASE GROUP
Version 2020.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biobase BFG Series

Summary of Contents for Biobase BFG Series

  • Page 1 Biological Isolation Chamber BFG Series User Manual BIOBASE GROUP Version 2020.03...
  • Page 2 Preface Dear Customer: Thank you for purchasing the BIOBASE infectious disease patient transport Biological Isolation Chamber! Sincerely hope that our products can bring you the greatest help. In order to let you know more about the Biological Isolation Chamber for infectious patients, please read the instructions carefully before use.

  • Page 3: Product Introduction

    1.Product introduction The transportation of negative pressure isolation compartments for infectious patients (hereinafter referred to as "negative pressure isolation compartments") is based on the principle of "negative pressure air isolation", which implements the safe isolation and transfer of new and sudden infectious patients during the transfer process to prevent further epidemic situation.

  • Page 4: Installation And Commissioning

    2. Installation and commissioning 2.1 Before removing the box, carefully inspect the box for damage. If you find that the equipment is damaged, please contact our staff in time. 2.2 After opening the box, check whether the accessories and random documents are complete according to the packing list shown in the appendix.
  • Page 5 noise 65dB(A) equipment weight 20kg Software release version Period of use 6 years Note: The company reserves the right to change the design of the product, and the product is subject to change without notice. 3.2 Product features a). Classification by electric shock prevention type: internal power equipment b).

  • Page 6: Product Composition

    (D) Air exchange volume: The air exchange volume of the negative pressure isolation tank is not less than 50L / min. (E) Alarm  Negative pressure abnormal alarm When the negative pressure in the cabin is less than 15Pa, the negative pressure alarm indicator lights up and the alarm starts.
  • Page 7 4.2 Operation panel 1-Negative pressure in the cabin 2-Battery power 3-Zero button 4-Battery level alarm 5- Inner negative pressure alarm (1) Negative pressure value in the cabin: used to display the negative pressure value in the biological isolation chamber in real time; (2) Battery capacity: used to display the battery capacity of the biological isolation chamber in real time;...
  • Page 8 5.Operation Instruction 5.1.Check before operation (1) Cabin is not damaged (2)The zipper is not damaged (3) Gloves are not broken (4)Filter looks normal (5)No foreign objects are blocked or blocked at the air outlet; (6)Turn on and check that the battery has sufficient power; (7)Turn on and check that the alarm system is normal.

  • Page 9: Maintenance

    3). HEPA filter should be stored in a cool and dry place to prevent falling, the fallen HEPA filters should be discarded. HEPA filter is the main safety component of the isolation chamber, so should be provided by the BIOBASE; if using HEPA filters from...
  • Page 10 BIOBASE will not in charge of it. 4). If appear abnormal conditions, please stop using it immediately; Please inform our service department or our agent in your local place. 6.2 Rechargeable battery for safe use and maintenance 1) Check the battery level before use.
  • Page 11 Notice : Before replacing the filter, be sure to disinfect the cabin and the filter. ① After disinfection is completed, open the operation ports near the high-efficiency filter respectively; ② Put your hand deep into the cabin and rotate it counterclockwise to remove the filter installation box, and then take it out of the cabin;...
  • Page 12 The specific operation steps of gasified hydrogen peroxide disinfection are as follows: a. Put the used Biological Isolation Chamber into a relatively small sealed room, fully stretch it out, and place it on a tile; b. Open the zipper at the bottom of the cabin and place the installed hydrogen peroxide sterilizer on the side close to the air inlet in the Biological Isolation Chamber.

  • Page 13: Troubleshooting

    complete all disinfection steps. 2. External cleaning The outside of the negative pressure isolation chamber needs to be cleaned regularly. After each use, it should be wiped with 75% alcohol to ensure the exterior is clean and tidy. 7. Troubleshooting Common fault analysis and troubleshooting: Common Cause of issue...
  • Page 14 (1) The operation of the above electrical components must be performed by a qualified electrician under safe conditions (cut off the power). The other parts are not allowed to be disassembled, otherwise the consequences will be borne by the user; (2) When the equipment fails other than the above, and the operator can not remove it immediately, please notify our company's maintenance department immediately.
  • Page 15 configuration. 5. Discarded batteries or cabins must be disposed of as medical waste in accordance with local regulations. 10. Label 10.1 Company Logo Figure 3 Company logo 10.2 Protection against electric shock Figure 4 Degree of protection against electric shock Type B 10.3 Power Type Figure 5 DC power supply 10.4 Warning symbols...

  • Page 16: Electromagnetic Compatibility

    11. Electromagnetic compatibility 11.1 The negative pressure isolating compartment complies with the requirements of YY0505-2012. 11.2 It is recommended that the device evaluate the electromagnetic environment before use. It is forbidden to use a negative pressure isolation compartment near strong radiation sources (such as unshielded RF sources), otherwise it may interfere with the normal operation of the equipment.
  • Page 17 11.6 Cable name: battery charging cable, length: 70cm, unshielded cable. Guide and manufacturer's declaration-electromagnetic emissions The Biological Isolation Chamber is expected to be used in the electromagnetic environment specified below, and the purchaser or user should ensure that it is used in this electromagnetic environment: Launch test Compliance...
  • Page 18 Guidance and manufacturer's declaration-electromagnetic immunity The Biological Isolation Chamber is expected to be used in the electromagnetic environment specified below, and the purchaser or user should ensure that it is used in this electromagnetic environment: Electromagnetic Immunity test IEC60601 test level Coincidence level Environment-Guide The floor should be wood,...
  • Page 19 <5% UT for 0.5 cycles <5% UT for 0.5 Grid power should be of the cycles quality used in a typical (On UT,> 95% commercial or hospital dips) (On UT,> 95% dips) Voltage sags, environment. The user of the 40% UT for 0.5 40% UT for 0.5 short negative pressure isolation...
  • Page 20 Guidance and manufacturer's declaration-electromagnetic immunity The Biological Isolation Chamber is expected to be used in the electromagnetic environment specified below, and the purchaser or user should ensure that it is used in this electromagnetic environment: IEC60601 Test Coincidenc Immunity test Electromagnetic Environment-Guide level e level...
  • Page 21 electromagnetic field a. In each frequency range b should be lower than the compliance level. Interference may occur near the equipment marked with the symbol below. Note 1: At 80MHz and 800MHz frequency points, the formula of the higher frequency band is used.
  • Page 22 Recommended isolation distance between portable and mobile RF communication equipment and negative pressure isolation compartments Biological Isolation Chamber are expected to be used in an electromagnetic environment where RF radiation disturbances are controlled. Depending on the maximum rated output power of the communication equipment, the purchaser or user can prevent electromagnetic interference by maintaining the minimum distance between portable and mobile radio frequency communication equipment (transmitters) and the negative pressure isolation compartment as...
  • Page 23 Appendix List of accessories Name Cabin Negative pressure system User manual Filter Disposable gloves Certificate of conformity Warranty Card...
  • Page 24 BIOBASE GROUP Add:No.51 South Gongye Road,Jinan,China Tel:0086-531-81219801 Fax:0086-531-81219804...
