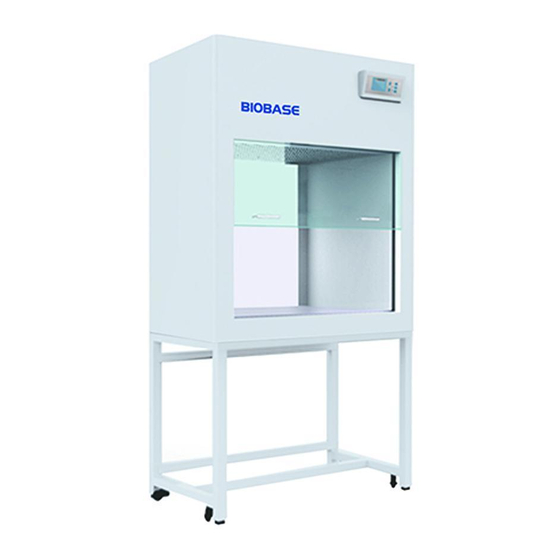

- Page 1 Vertical Laminar Flow Cabinet BBS-V800 User Manual BIOBASE GROUP Version 2021.12...
-
Page 2: Preface
Preface Thank you very much for purchasing our vertical laminar flow cabinet. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation. After reading these documents, be sure to store them securely together with the “Warranty”... -
Page 3: Table Of Contents
2.1.2 Working theory/Air flow Pattern and Protected Area Figure (Picture 5)....... 8 2.1.3 Protected Objects......................8 2.1.4 Technical Parameters...................... 8 2.2 Product Structure........................9 2.2.1 Structural Composition of BBS-V800 (Picture 6)............9 2.2.2 Structure Composition....................10 2.3 Instructions for Operation....................... 11 2.3.1 Normal Operation Notice....................11 2.3.2 Operation Process ......................12... - Page 4 3. Trouble Shooting and Solutions....................... 16 3.1 Common Failures and Solutions..................... 16 3.2 Replacement of Fuse....................... 17 3.3 Replacement of LED Lamp.....................17 3.4 Replacement of UV Lamp.......................18 3.5 Label Description........................19 4. Warranty............................19...
-
Page 5: Unpacking, Installation And Debugging
1.Unpacking, Installation and Debugging Please firstly check if the packing box is in good condition. If the packing box is damaged, please take photos. 1.1 Unpacking Choose the proper unpacking method and tools as shown in the below picture For wooden box: 1) Method 1 Necessary tools for unpacking: Electric drill with hexagon dead M8 (Picture 1). - Page 6 2) Method 2 Use M8 Wrench to unpack (Picture 2). Picture 2 The following diagram demonstrates quick unpacking procedures (Picture 3). Remove the screws as shown in the below diagram, then remove the wooden sheet to right and wooden box to left. Picture 3...
-
Page 7: Accessories Checking
1.2 Accessories Checking Refer to the packing list and check the accessories. The spare parts as back up, it can be normally used after unpacking. Packing list (BBS-V800) Items Quantity Position Main body 1 unit Wooden box Base stand 1 set... -
Page 8: Checking After Installation
Lamp lights up after pressing button UV Lamp Lamp lights up after pressing button Screen Buttons All buttons work effectively If you have any questions, please contact BIOBASE or our agent to debug. Debugging method in the After-sale service manual. -
Page 9: User Instructions
The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. BBS-V800 is vertical type Laminar Flow Cabinet. -
Page 10: Product Structure
2) Electrical properties The voltage increases to 1390V (AC) in 5s and keep for another 5s without breakdown. Grounding resistance ≤0.1Ω. 2.2 Product Structure 2.2.1 Structural Composition of BBS-V800 (Picture 6) Picture 6 1. Socket 7. Handle 2. Control panel 8. -
Page 11: Structure Composition
4. UV lamp 10. Caster 5. Front window 11. Leveling feet 6. Rear window 2.2.2 Structure Composition 1）Driving system of front window Driving system consists of constant spring and front window. 2) Air filtration system Air filtration system is the core system of laminar flow cabinet. It consists of blower and HEPA filter system. -
Page 12: Instructions For Operation
6) HEPA filter life: With the usage time increasing, dust and bacteria accumulate inside HEPA filter. Filter Resistance is getting bigger, when it reaches the maximum point, the speed requirements can’t be met. Then need contact BIOBASE service department to get a new one. The used filter should be processed as medical waste. -
Page 13: Operation Process
Serious declaration: NOTE: BIOBASE WILL NOT BE RESPONSIBLE FOR ANY RISK OR DAMAGE ARISING FAILURE DURING USAGE BY UNTRAINED OPERATOR AND MISHANDLING THE LAF. THE OPERATOR OF THE LAMINAR FLOW CABINET SHOULD BE TRAINED ENOUGH BEFORE USING THE LAF. 2.3.2 Operation Process... -
Page 14: Overall Maintenance Period
Storage period shall not exceed one year. Laminar flow cabinet stored for more than one year needs to be unpacked and checked before selling and using. Only the tested and qualified cabinet could be sold. 2.5 Replacement Parts List BBS-V800 replacement parts list Number Name Specification... - Page 15 Laminar flow cabinet control BH-08 Control panel panel(Ten light pillar) BH-9 Tempered glass Size 748*580*5 BH-10 Common glass Size 714*570*5 Constant spring Constant spring,Nylon sleeve,Nylon BH-11 component set of baffle...
-
Page 16: Wiring Diagram (Picture 8)
2.6 Wiring Diagram (Picture 8) b l u e （ Φ 1 ） F A N ） Φ （ L I G H T b l u e （ Φ 1 ） D O W N B L U E （ Φ 1 ） U V B A L L A S T Picture 8... -
Page 17: Trouble Shooting And Solutions
3. Trouble Shooting and Solutions 3.1 Common Failures and Solutions Please confirm that the power is well connected, the power cord and fuse are in good condition(without any damage). Failure Checking parts Measures LED lamp fail to work LED stand plug Connect the plug and stand tightly LED stand Replace stand... -
Page 18: Replacement Of Fuse
Other components should not be removed. Risk caused by failing to follow those instructions would be responsible by user.; 2) Please contact Biobase or our agent if a failure could not be traced or solved. Do NOT repair the equipment without a qualified electrician;... -
Page 19: Replacement Of Uv Lamp
LED stand plug LED stand Picture 10 3.4 Replacement of UV Lamp Ultraviolet intensity should be tested regularly in order to achieve a good disinfection effect. We recommend use Ultraviolet intensity test card to confirm if we need to replace UV lamp. when using UV lamps reach to the time of 600 hours, we recommend to replace the lamp. -
Page 20: Label Description
4.2 Biobase would not be liable for any repair of damage caused by improper operation.. 4.3 If the warranty has been expired, Biobase would still responsible for repair with relative charges. 4.4 Life time of laminar flow cabinet is 8 years from production date on the label. - Page 21 BIOBASE GROUP 2# building, No.9 Gangxing Road, High-tech Zone, Jinan City, Shandong Province, China Tel: +86-531-81219803/01 Fax: +86-531-81219804 Inquiry: export@biobase.com Complaints: customer_support@biobase.cc After-sales service: service_sd@biobase.cc; service_ivd@biobase.cc Web: www.biobase.cc/www.meihuatrade.com / www.biobase.com...
