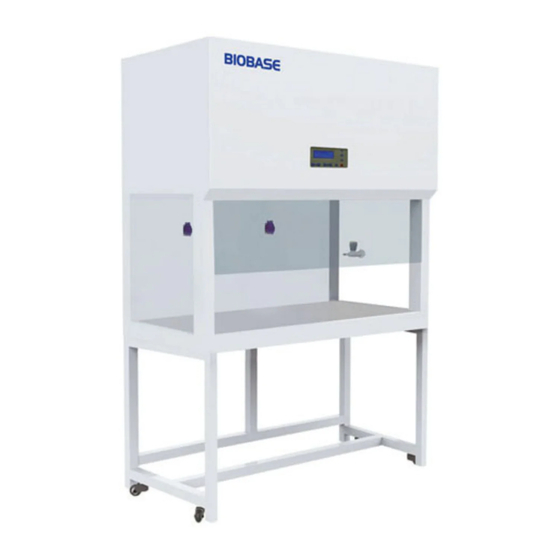

- Page 1 Vertical Laminar Flow Cabinet BBS-V1300/V1800 User Manual BIOBASE GROUP Version 2021.05...
-
Page 2: Preface
Preface Thank you very much for purchasing our vertical laminar flow cabinet. Please read the “Operating Instructions” and “Warranty” carefully before operating this unit to assure proper operation. After reading these documents, be sure to store them securely together with the “Warranty”... -
Page 3: Table Of Contents
2.1 Functions..........................11 2.1.1 Product Concept......................11 2.1.2 Works / airflow mode protection area................11 2.1.4 Technical Parameters....................12 2.2 Product Structure........................13 2.2.1 Structural Composition of BBS-V1300/BBS-V1800............13 2.2.2 Structure Introduction....................14 2.3 Instructions for Operation....................... 17 2.3.1 Normal Operation Notice....................17 2.3.2 Operation Process......................17 2.4. - Page 4 3.2 Replace the fuse........................23 3.3 Replace fluorescent light......................23 3.4 Replace the UV lamp......................24 3.5 Label Description (Picture 16)....................25 4. Warranty............................25...
-
Page 5: Unpacking, Installation And Debugging
1.Unpacking, Installation and Debugging Please firstly check if packing box is in good condition. If the packing box is damaged, please take photos. 1.1 Unpacking Choose proper tools and unpacking method as shown in the below picture. For wooden box: 1) Method 1 Necessary tools for unpacking: Electric drill with hexagon dead M8 Picture 1 2) Method 2 Use M8 Wrench to unpack... - Page 6 Picture 2 The following diagram demonstrates quick unpacking procedures (Picture 3). Remove the screws as shown in the below diagram, then remove the wooden sheet to left of the wooden box. Picture 3...
-
Page 7: Accessories Checking
1.2 Accessories Checking Refer to the packing list and check the accessories. BBS-V1300 Packing list Items Quantity Position Main body 1unit Wood package Base stand 1set UV Lamp(T6 30W) Paper package(Behind the cabinet) Gas Tap SAN-3102 Power Cord Fuse (10A) -
Page 8: Installation Conditions And Operating Environment
M10*55+ flat washer 10+spring washer 10 Hexagon wrench User Manual Inspection report Envelope(Behind the cabinet) Certification of quality Warranty Card 1.3 Installation Conditions and Operating Environment Laminar flow cabinet shall be placed in a protection area, workspace can not be right opposite to the door or window, and away from the outlet of air conditioning, prevent from the ventilation system, air conditioning, door, window, and personnel movement caused by the airflow impact on Laminar flow cabinet. -
Page 9: Installation
1.4 Installation a. Remove all the packing materials b. Check the surface of main body to make sure there is no scratch, deformation or foreign bodies c. Confirm the complement of accessories according to the packing list d. Before removing the packing material, move the entire equipment to the place where it is going to be installed The base stand will be packed at back of main body, please take it out before installation. - Page 10 Picture 5 First, keep the main body above the base stand. (picture 5), then align the bolt of base stand. Mounting holes of the Main body at both sides, using Hexagon head bolt M10*55, flat washer 10, Spring washer 10 insert through base stand and the side panel and make them stable. g.
-
Page 11: Inspection After Installation
Picture 6 Gas Tap Picture7 h. After the above steps, move cabinet to the right cabinet position slightly, remove the power cord, check the power cord is intact. See picture 7. 1.5 Inspection after Installation First, make sure the voltage and frequency to be same as nameplate showing, and then check the follows items with power on: Checking Items Normal working status... -
Page 12: User Instructions
2. User Instructions 2.1 Functions 2.1.1 Product Concept Laminar Flow Cabinet- LAF is used only for sample protection. Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. -
Page 13: Technical Parameters
99.999％efficiency at 0.3μm Noise <65dB Notes: Biobase reserves the right to make changes in future product design, without reservation and without notification to its users. 1) Vibration amplitude The net vibration amplitude between frequency 10Hz and 10KHz is no more than 5μm(rms). -
Page 14: Product Structure
2.2 Product Structure 2.2.1 Structural Composition of BBS-V1300/BBS-V1800 Picture 9 1.Power Socket 8.Caster 2.Ground terminal 9.Leveling feet 3.UV Lamp 10.Front window 4.Fluorescent lamp 11.Water-proof socket 5.Side glass window 12.Control panel 6.Gas Tap 13.Power switch 7.Base Stand 14.Zero line fuse... -
Page 15: Structure Introduction
2.2.2 Structure Introduction 1) Driving system of front window Driving system consists of tubular motor, front window, hauling mechanism and limit switch. 2) Air filtration system Air filtration system is the core system of laminar flow cabinet. It consists of blower and HEPA filter system. - Page 16 : To control blower working status. Blower has memory function that blower can display last time blower gear, to avoid needing to adjust the fan gear each time. (Note: It will not work when front window is fully closed) : To control fluorescent lamp. :To control UV lamp (UV lamp, blower, fluorescent lamp and front window interlock;...
- Page 17 The front window is motorized, with the touch of a button can be controlled freely. 7）Water proof socket Waterproof socket is arranged in the operating area, to within the operating area of the power supply equipment and in the lighting lamp installing the front side plate（Picture 1) and when need to use a socket, open the equipment power supply, press the socket button (Picture 10), open the waterproof socket cover, access to electricity source plug.
-
Page 18: Instructions For Operation
（6） HEPA filter life: With the usage time increasing, dust and bacteria accumulate within the HEPA filter, filter resistance is getting bigger, when it reaches the maximum point, the speed requirements can’t be met then please contact BIOBASE service department to get a new one. The used filter should be processed as medical waste. -
Page 19: Daily Maintenance
experiment start. After finishing the experiment, please fully close the front window and make sure to sterilize the cabinet by UV lamp for 30 minutes before turning off the cabinet. 2.4. Daily Maintenance Preparations before maintenance: removal of items in the equipment Preparation of goods: cotton or towel, concentrated soap, hot water, water, medical alcohol or other disinfectants, etc. -
Page 20: Storage Conditions
Storage period shall not exceed one year. Safety cabinet stored for more than one year needs to be unpacked and checked before selling and using. Only the tested and qualified safety cabinet could be sold. 2.5 Replacement Parts List BBS-V1300 replacement parts list Number Name Specification... - Page 21 BBS-V1800 replacement parts list Number Name Specification BT-01 Fuse Φ5*20, 10A BT-02 Lamp holder T8 LG13-01A BT-03 UV Lamp T6 30W BT-04 LED holder T5 T5 16W BT-05 1*TL8-30W UV lamp ballast BT-06 HEPA filter 1690*570*69mm BT-07 FH320A, 3C certified BT-08 Control panel LCD control panel...
- Page 22 2.6 Wiring Diagram (Pitcure12) Pitcure12...
-
Page 23: Trouble Shooting And Solution
3. Trouble Shooting and Solution 3.1 Trouble Shooting Please confirm that the power is well connected, the cord is in good condition(without any damage) and the power lock is unlocked before trouble shooting the following problems. Faults Check parts Measures LED holder plug Connect the plug and holder tightly LED holder... -
Page 24: Replace The Fuse
Other components should not be removed. Risk caused by failing to follow those instructions would be responsible by user. (2) Please contact Biobase technical department if a failure could not be traced or solved. Do NOT repair the equipment without a qualified electrician. -
Page 25: Replace The Uv Lamp
Picture 14 3.4 Replace the UV lamp The UV lamp tube should change regularly, such as every 600 hours. For replacing the lamp tube, turn off the power and disconnect the plug. Rotate the tube for 90° to remove it and then install a new UV lamp tube by rotating in reverse direction. -
Page 26: Label Description (Picture 16)
2) Biobase would not be liable for any repair of damage caused by improper operation. 3) If the warranty has been expired, Biobase would still responsible for repair with relative charges. 4) Life time of laminar flow cabinet is 8 years from production date on the label. - Page 27 BIOBASE GROUP 2# building, No.9 Gangxing Road, High-tech Zone, Jinan City, Shandong Province, China Tel: +86-531-81219803/01 Fax: +86-531-81219804 Inquiry: export@biobase.com Complaints: customer_support@biobase.cc After-sales service: service_sd@biobase.cc; service_ivd@biobase.cc Web: www.biobase.cc/www.meihuatrade.com / www.biobase.com...
