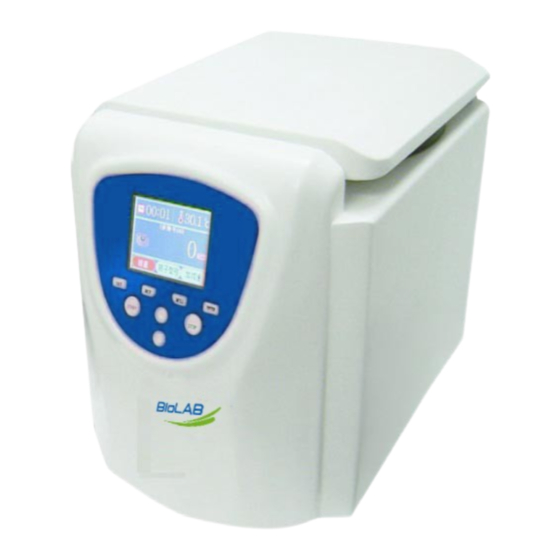

- Page 1 Operation Manual BCBL-207 Benchtop Low Speed Centrifuge Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Benchtop Low Speed Centrifuge BCBL-207 Index 1. Features and applications………………………………………………………........03 2. The operation principles ……………………………………………………........04 3. Technical parameters ………………………………………………………...........05 4. The rotor parameter ……………………………………………………………........05 5. The operation procedures………………………………………………….........06 6. Safety Notice……………………………………………………………………...........13 7. Warranty Service Instruction…………………………………………………........14 8. Comment Malfunctions and Obviating Methods……………………………......14 9. -
Page 3: Features And Applications
Benchtop Low Speed Centrifuge BCBL-207 Features and Applications BCBL-207 Benchtop Low Speed Centrifuge (This machine below is short for this centrifuge machine.), The series centrifuge is widely applied in biology, chemistry, medicine, agriculture and forest science, food safety, blood station and clinical test. -
Page 4: The Operation Principles
Benchtop Low Speed Centrifuge BCBL-207 The Operation Principles The centrifuge machine helps to separate, condense or purify the different density components ( or particles ) of the solutions by the usage of centrifugal sedimentation principal. After placing the centrifuge tubes with equivalent test solutions in the test tubes around the... -
Page 5: Technical Parameters
Benchtop Low Speed Centrifuge BCBL-207 Technical Parameters Maximum rotate speed 6000r/min Maximum centrifugal force 5140×g Maximum capacity 4x250 ml Time range 0~99h59min Rotate speed precision ±50r/ min Noise ≤65dB Power AC 220V 50HZ 5A Dimension ( L×W×H ) 600×540×360mm Weight... -
Page 6: The Operation Procedures
Benchtop Low Speed Centrifuge BCBL-207 The Operation Procedures Step 1: Place the centrifuge machine on the platform and ensure its balance. Shake the machine with hands to check out whether the machine has been placed stably or not. Step 2: Plug the supply cord into the outlet and press down the power switch ( the power switch is on the right bottom of the machine ). - Page 7 Benchtop Low Speed Centrifuge BCBL-207 2 ． ：The display area of the parameter numbers. 3 ． ：The operation icon. 4 ． ：The setting of rotor modes. 5 ． ：The setting of rotating speed. The “SET” button. ： 7 ． ：...
- Page 8 Benchtop Low Speed Centrifuge BCBL-207 2) Press the “ SET” button to enter the first adjustment panel, or touch the screen and click the rotating speed area to enter the same panel. As it is shown below: (i) Press the “...
- Page 9 Benchtop Low Speed Centrifuge BCBL-207 (ii) Press SET” button to enter the rotating speed adjustment panel. Next, press the “ UP” or “ DOWN” button and press the “ SET” button again to enter the time adjustment area. The needed minutes can be chosen by pressing the “...
- Page 10 Benchtop Low Speed Centrifuge BCBL-207 As it is shown below: (i) Press the “ UP” or “ DOWN” button to choose the rotor number. Attention: Please take the real objects as the reference, and find the corresponding real rotor pictures and rotor number.
- Page 11 Benchtop Low Speed Centrifuge BCBL-207 (ii) Press the “ UP” button to adjust the acceleration of the rotating speed, or touch the screen and click the icon to do the same operation. There are 10 acceleration levels: 0 is the slowest while 9 is the fastest.
- Page 12 Benchtop Low Speed Centrifuge BCBL-207 7) When counting down to 0, the centrifuge machine stops working automatically. During the operation, pressing the “ STOP & OPEN” button can also stops the operation of the machine. When the rotating speed reaches 0, the buzzer would make a buzzing sound, and the cue words would be displayed on the window.
-
Page 13: Safety Notice
Benchtop Low Speed Centrifuge BCBL-207 Safety Notice 1. This machine should not be used in the humid places with high temperature and large fugitive dust. 2. To ensure the safety and its centrifugal effect, this machine should be placed in the solid, quakeproof and horizontal platform, and all four undercarriages should be given the balanced load. -
Page 14: Warranty Service Instruction
Benchtop Low Speed Centrifuge BCBL-207 Warranty Service Instruction The warranty period of this centrifuge machine lasts one year since its purchased day. During the warranty period, if the machine is damaged by artificial factors, maintenance services would be provided with some appropriate fee. After the warranty period, all repairs are billed at cost. -
Page 15: Transportation And Storage Of The Machine
Benchtop Low Speed Centrifuge BCBL-207 common malfunctions causes obviating methods There is no 220V power Check the power supply. The monitor doesn’t work after supply. connecting with the power supply. The fuse is melted. Change the fuse. The machine can work but the... -
Page 16: Unpacking And Examination Of The Machine
Benchtop Low Speed Centrifuge BCBL-207 Unpacking and Examination of the Machine 1. Place the outer container in accordance with the “UP” sign on it, and take out the machine after unpacking the outer container. 2. Please check and examine the machine and the accessories according to the packing list. - Page 17 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
