Platform: DBALL/DBALL2
Firmware:
CHRYSLER6 Range Extender Ready (RXT) Installation

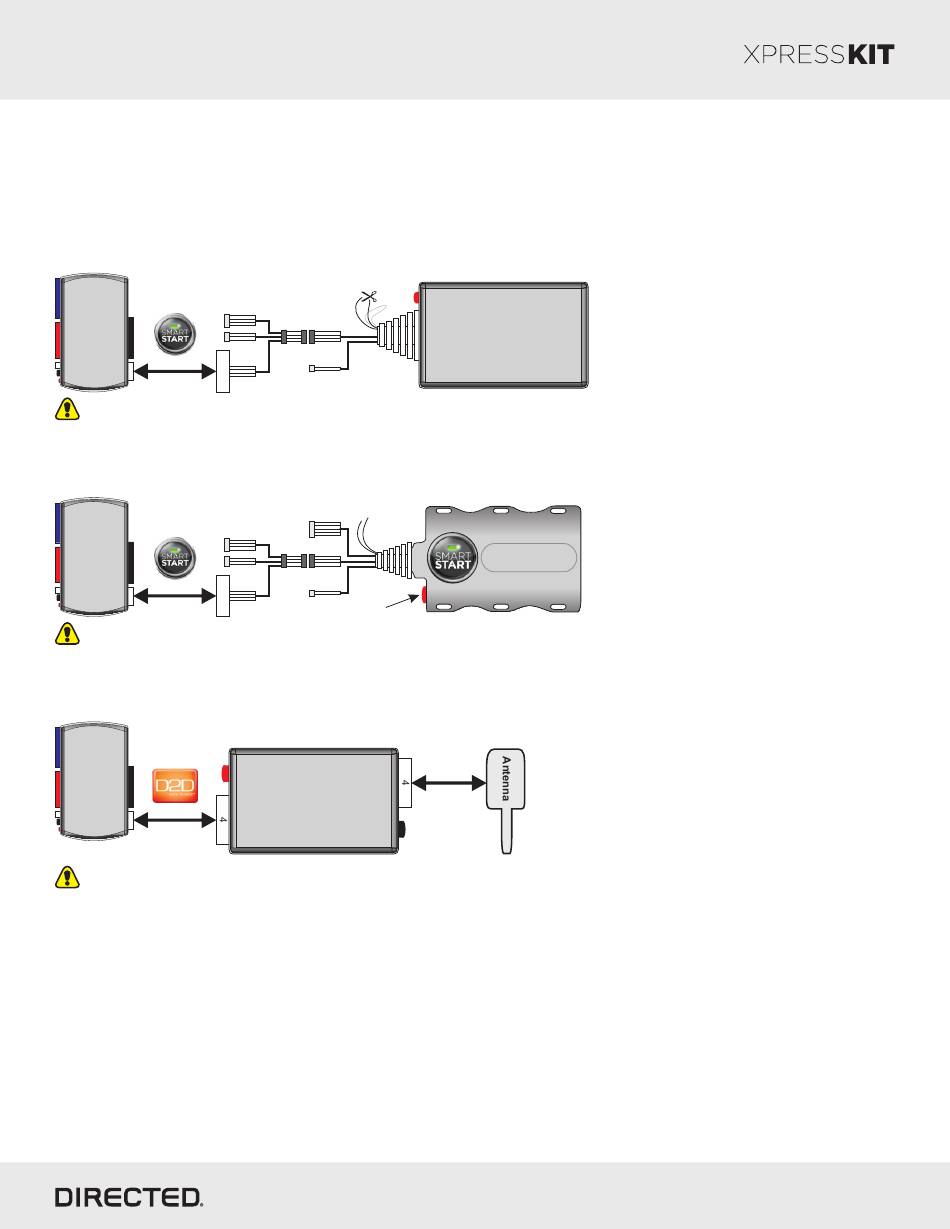

SmartStart/XL202 Installation Notes

The DBALL Range Extender Ready (RXT) solution offers two (2) configuration options to control your system: RF Kit or
SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.
SmartStart Revision A
SmartStart is optional and not included. It MUST be purchased separately.
Configuration Wires (White & Brown or Blue)
DBALL/
DBALL2
CABLE
D2D (4 pins, white)
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
SmartStart Revision B
SmartStart is optional and not included. It MUST be purchased separately.
DBALL/
DBALL2
CABLE
D2D (4 pins, white)
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
RF Kit
The optional XL202 and antenna are not included and MUST be purchased separately.
DBALL/
DBALL2
XOVER
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DBALL package.
2. The modules must be connected in a specific order. Refer to the Module Programming section for more information.
RF Kit & PKE Combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF Kit, PKE & SmartStart BT Combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
Cut Brown or Blue Loop
4 pins
2 pins,
not used
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins,
not used
LED
LED
XL202
Prog.
Button
OR
LED
SmartStart
THIS SIDE UP
Rev.: 20150827
Page 5
© 2015 Directed. All rights reserved.
