3.
The transmitter (with power supply) or receiver can now
be easily attached and detached from the ZipClip 200
mounting location, using the quick-release tab.
The receiver power supply (PS 1215 C) can be attached
and detached from the ZipClip 100 (no ZipCaddy
necessary).
UCS FT 901
PS 1215 C
ZipClip 100

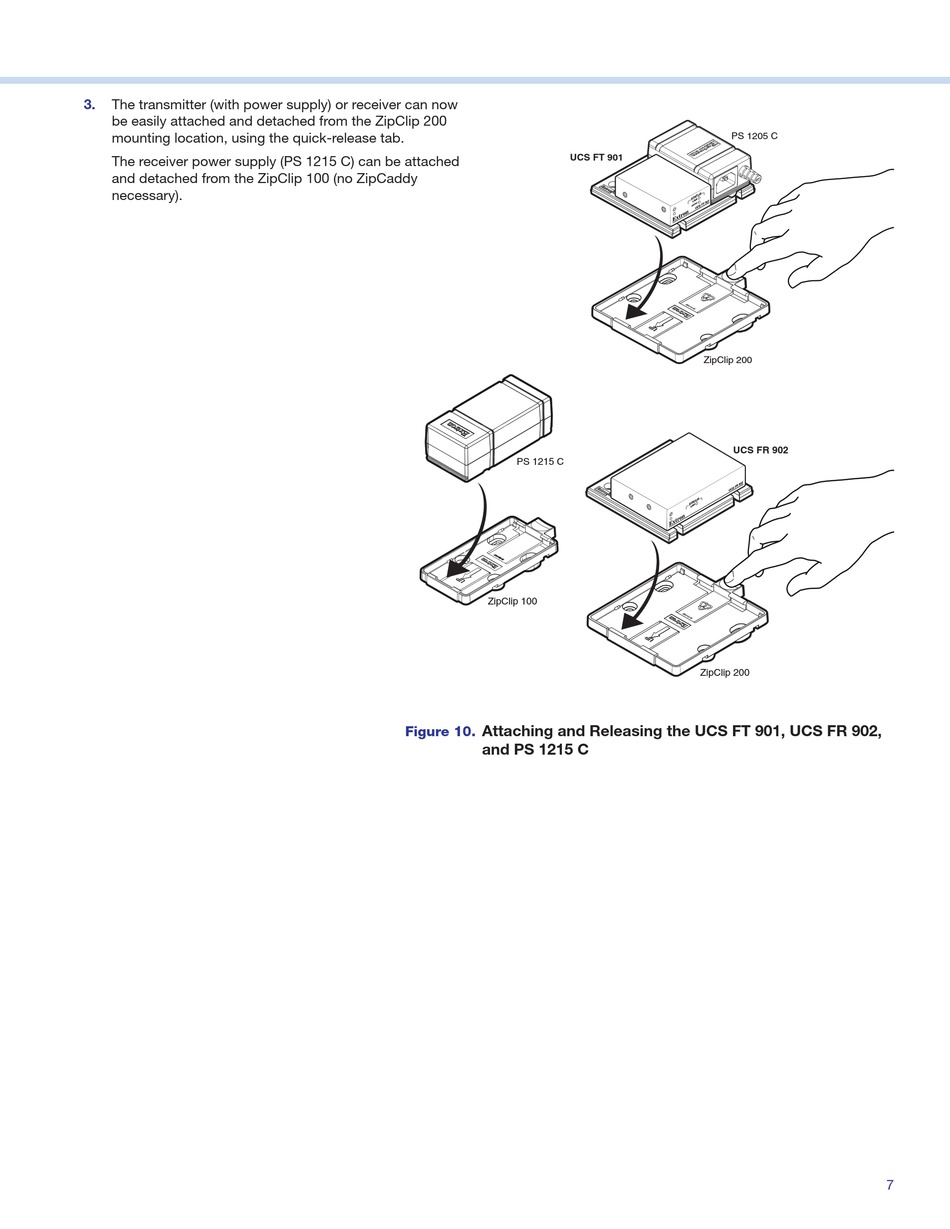

Attaching and Releasing the UCS FT 901, UCS FR 902,
Figure 10.
and PS 1215 C
PS 1205 C
U S
A T
S T
K
L IN 0 1
T 9
S T
S F
H O
U C
e
ZipClip 200
UCS FR 902
0 2
R 9
S F
U C
U S
A T
S T
K
L IN
e
ZipClip 200
