Application Diagram

Extron
Cable Cubby
Cable Access
Enclosure

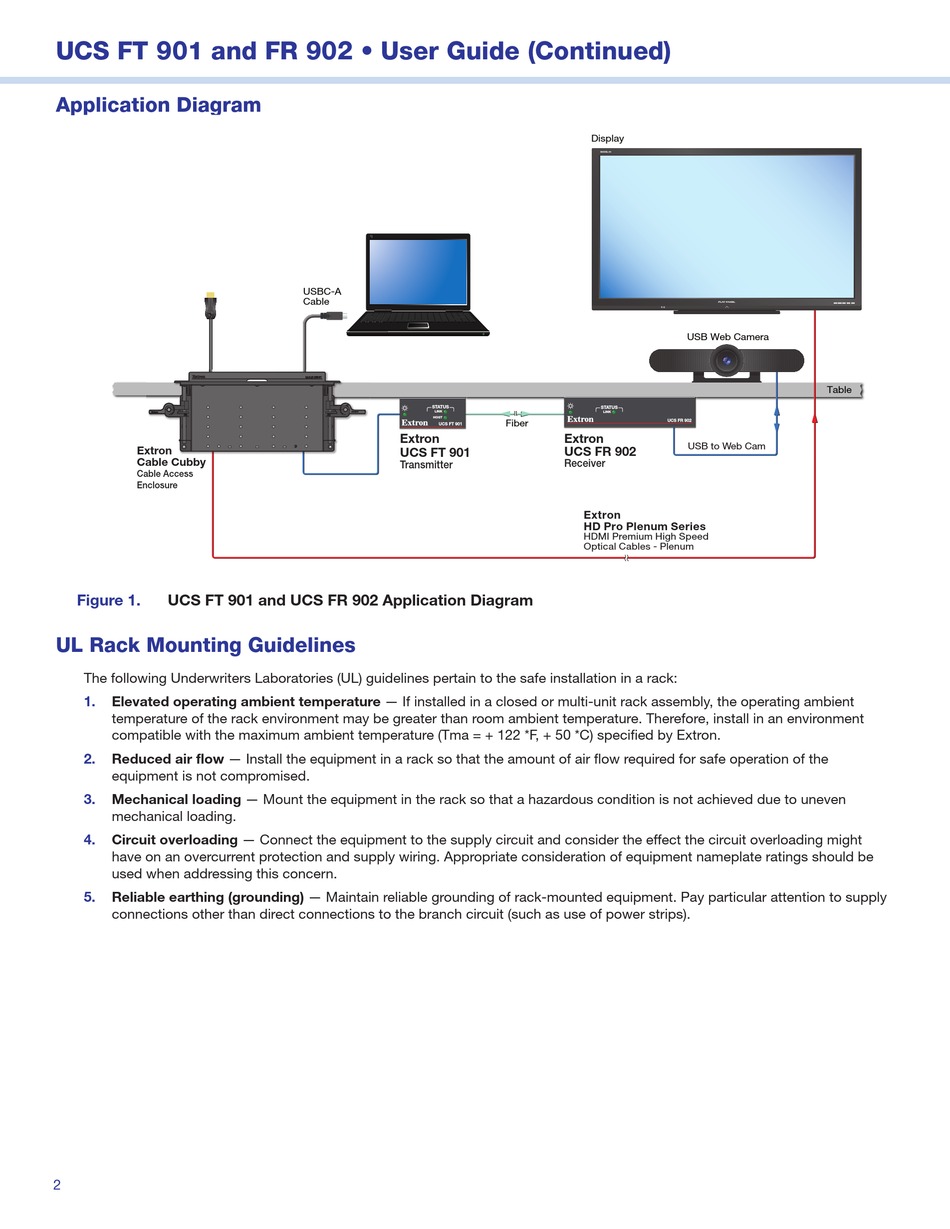

Figure 1. UCS FT 901 and UCS FR 902 Application Diagram

UL Rack Mounting Guidelines

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation in a rack:
1. Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient temperature. Therefore, install in an environment
compatible with the maximum ambient temperature (Tma = + 122 *F, + 50 *C) specified by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow required for safe operation of the
equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven
mechanical loading.
4. Circuit overloading — Connect the equipment to the supply circuit and consider the effect the circuit overloading might
have on an overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be
used when addressing this concern.
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply
connections other than direct connections to the branch circuit (such as use of power strips).
