Barracuda CloudGen Firewall
F400 Revision C
https://campus.barracuda.com/doc/92766582/

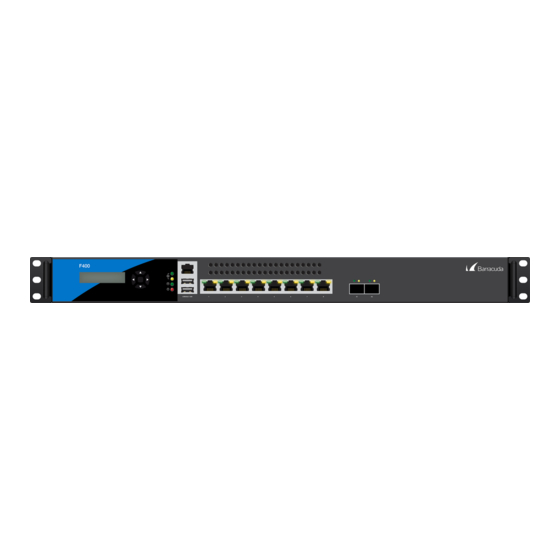

F400 Rev. C Standard Model
F400 Rev. C Sub-Model .F20
The standard model of Barracuda's CloudGen Firewall F400 (Rev. C) comes with eight 10/100/1000
MBit RJ45, two 10Gbit SFP+ Ethernet ports, and a single power supply. Other F400 C model types
(.F20) provide different port combinations and a dual power supply.
F400 C Standard Model Port Configuration
Port Label OS Notation
1
p1
2
p2
3
p3
4
p4
5
p5
6
p6
7
p7
8
p8
A1
a1
A2
a2
F400 Revision C
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10 GbE Optical Fiber SFP+
10 GbE Optical Fiber SFP+
Management Port
X
1 / 7
Advertisement
Related Manuals for Barracuda CloudGen F400 C Standard Model
Summary of Contents for Barracuda CloudGen F400 C Standard Model
- Page 1 F400 Rev. C Standard Model F400 Rev. C Sub-Model .F20 The standard model of Barracuda's CloudGen Firewall F400 (Rev. C) comes with eight 10/100/1000 MBit RJ45, two 10Gbit SFP+ Ethernet ports, and a single power supply. Other F400 C model types (.F20) provide different port combinations and a dual power supply.
-
Page 2: Hardware Specifications
firewall. To protect your network, follow the instructions for the standard deployment. Hardware Specifications Warranty and Safety Instructions Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Interface •... - Page 3 Barracuda CloudGen Firewall Serial console 1 [RJ45] Data Storage RAM [GB] Mass Storage Type Size [GB] 180 GB or higher Size, Weight, Dimensions Appliance weight [kg] (F400 / F400.F20) 8.4 / 9.3 Carton weight with appliance [kg ] (F400 / F400.F20) 9.4 / 10.2...
- Page 4 The hardware specifications list was valid at the time this manual was published. The listed components are subject to change at any time, as Barracuda Networks may change hardware components due to technological advancements. Therefore, the list may not reflect the current hardware configuration of the Barracuda appliance it was delivered with.
- Page 5 Barracuda CloudGen Firewall Left Data transfer – Yellow (10/100 Port in use. blinking Mbps) Port LEDs - GREEN/YELLOW Right Port is on. steady PSU modules connected and Power supply unit is up and Steady running running. PSU LEDs - GREEN Power defective, standby, or Power supply unit is off...
-
Page 6: Rack Mounting
Once set, this flag can not be deleted through the menu. When Menu to boot into during the rebooted, the appliance will not start Barracuda OS, but ART next reboot instead. You may connect to the appliance by using the serial console or by SSH. - Page 7 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
