Barracuda NextGen Firewall F
Barracuda NG Firewall F180 Revision A
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by
Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Always use the power supply shipped with the appliance.
General

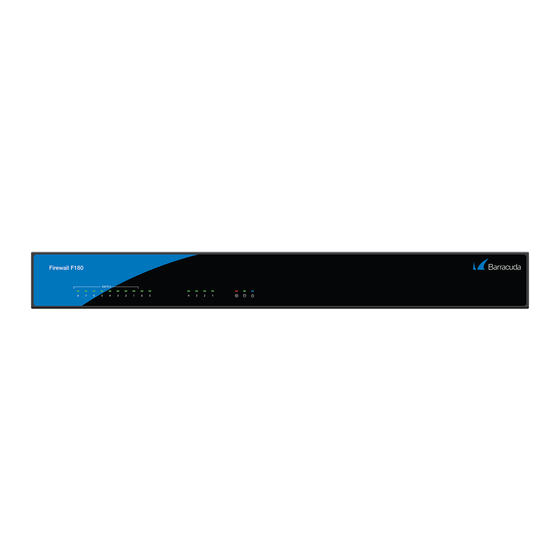

Front
Back
Default Port Configuration
Label OS Notation
1
p1
10/100/1000 MBit RJ45
2
p2
10/100/1000 MBit RJ45
3
p3
10/100/1000 MBit RJ45
4
p4
10/100/1000 MBit RJ45
5
p5
10/100/1000 MBit RJ45
6
p6
10/100/1000 MBit RJ45
s1-s8
p7
10/100/1000 MBit RJ45
Hardware Specifications
Component
CPU
Memory
Mass Storage
Flash Disk
USB
Form Factor
Dimensions (W/D/H)
Net Weight
Power Supply Input Voltage
Power Supply Output Voltage
Power Supply Voltage
Power Supply Watts
Storage Temperature
Barracuda NG Firewall F180 Revision A
1 / 4
Revision A
Speed/Type
Management Port
Specifications
Intel Atom Dual Core
1 x 80 GB SSD
14.88 x 6.38 x 1.73 in
378 x 162 x 44 mm
100 - 240 V, AC
50 Hz – 60 Hz
-20 °C - +70 °C
X
switch
2 GB
-
4x USB 2.0
Desktop
2.08 kg
19 V, DC
45 W
Advertisement
Table of Contents
Related Manuals for Barracuda NextGen F180
Summary of Contents for Barracuda NextGen F180
- Page 1 Barracuda NextGen Firewall F Barracuda NG Firewall F180 Revision A Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Always use the power supply shipped with the appliance.
- Page 2 Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel of the Barracuda NG Firewall F80 contains one power LED (blue), one disc LED (green), one status LED (red), and 4 port LEDs. On the back panel, you can see one power button LED and various port LEDs.
- Page 3 In order to establish a console connection to the appliance using an RJ45 serial cable, you need to configure the serial port on the terminal using the following parameters: Parameter Value Baud 19200 Bits Stop bit Parity None Handshake None Barracuda NG Firewall F180 Revision A 3 / 4...
- Page 4 Barracuda NextGen Firewall F Barracuda NG Firewall F180 Revision A 4 / 4...
