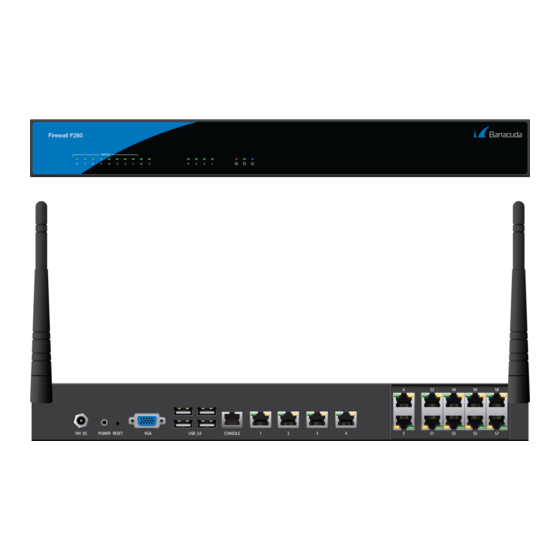

Barracuda CloudGen Firewall
F280 Revision B
https://campus.barracuda.com/doc/71862279/
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to
do so by Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Always use the power supply shipped with the appliance. To prevent damage, connect the DC
plug to the appliance before plugging the power adapter into the AC outlet.
Default Port Configuration
Port Label OS Notation
1
p1
2
p2
3
p3
4
p4
5
p5
6
p6
F280 Revision B
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
Management Port
x
1 / 6
Advertisement
Table of Contents
Related Manuals for Barracuda GloudGen Series
Summary of Contents for Barracuda GloudGen Series
- Page 1 Barracuda CloudGen Firewall F280 Revision B https://campus.barracuda.com/doc/71862279/ Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Always use the power supply shipped with the appliance. To prevent damage, connect the DC plug to the appliance before plugging the power adapter into the AC outlet.
- Page 2 Barracuda CloudGen Firewall s1-s8 10/100/1000 MBit RJ45 switch Hardware Specifications Interface RJ45 Ethernet NICs 6x 1 GbE Switch 8-Port [1GbE] USB 2.0 Serial console 1 [RJ45] Integrated Wi-Fi (IEEE 802.11b/g) Data Storage RAM [GB] Mass Storage Type Size [GB] Size, Weight, Dimensions...
- Page 3 Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel of the Barracuda CloudGen Firewall F280 B contains one power LED (blue), one disc LED (green), one status LED (red), and 4 port LEDs. On the back panel, you can see one power button LED and various port LEDs.
- Page 4 Barracuda CloudGen Firewall Appliance is powered off or installation has not initialized All LEDs Off Off Appliance is powered off. far enough for LED control when installation is started. Power LED front side - Appliance is plugged in and Steady BLUE is on.
- Page 5 Barracuda CloudGen Firewall Baud 19200 Bits Stop bit Parity None Handshake None F280 Revision B 5 / 6...
- Page 6 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
