Barracuda CloudGen Firewall
Barracuda NG Firewall F180 Revision A
https://campus.barracuda.com/doc/46203411/
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to
do so by Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Always use the power supply shipped with the appliance.
General

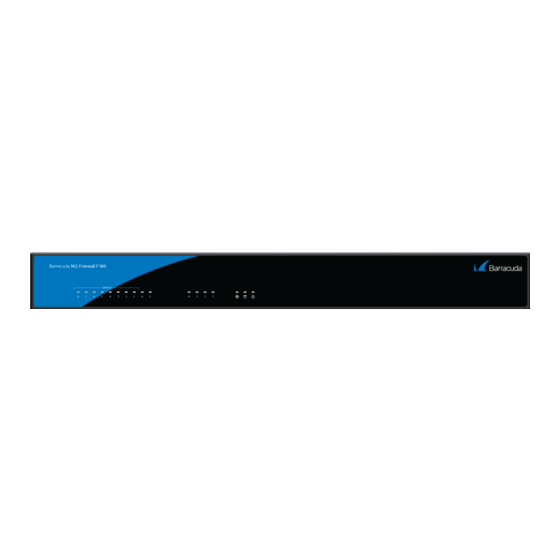

Front
Back
Default Port Configuration
Label OS Notation
1
p1
2
p2
3
p3
4
p4
5
p5
6
p6
s1-s8
p7
Hardware Specifications
Barracuda NG Firewall F180 Revision A
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
Revision A
Management Port
X
switch
1 / 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Barracuda NG Firewall F180
Summary of Contents for Barracuda NG Firewall F180
- Page 1 Barracuda CloudGen Firewall Barracuda NG Firewall F180 Revision A https://campus.barracuda.com/doc/46203411/ Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Always use the power supply shipped with the appliance.
- Page 2 The hardware specifications list was valid at the time this manual was published. The listed components are subject to change at any time, as Barracuda Networks may change hardware components due to technological advancements. Therefore, the list may not reflect the current hardware configuration of the Barracuda Networks NG Firewall or NG Control Center appliance it...
- Page 3 Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel of the Barracuda NG Firewall F80 contains one power LED (blue), one disc LED (green), one status LED (red), and 4 port LEDs. On the back panel, you can see one power button LED and various port LEDs.
- Page 4 In order to establish a console connection to the appliance using an RJ45 serial cable, you need to configure the serial port on the terminal using the following parameters: Parameter Value Baud 19200 Bits Stop bit Parity None Handshake None Barracuda NG Firewall F180 Revision A 4 / 5...
- Page 5 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
