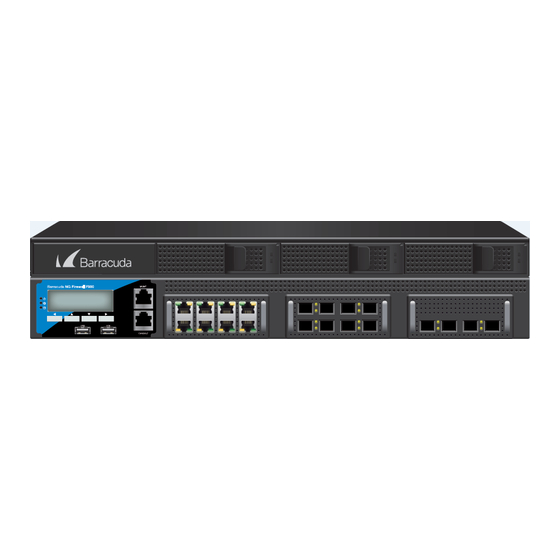

Rack Installation for Barracuda CloudGen Firewall F800 Revision C
and F900 Revision A,B
https://campus.barracuda.com/doc/41108332/
F800 Revision C
Server Rail Kit for SCB-1911 - Version 1.0
This quick installation guide is designed and built for 1U and 2U chassis. Not recommended for 3U or
above applications. The bracket is for chassis rail with pitch and square holes, and can only be
mounted behind the rail. You will need to purchase a transfer bracket in order to mount the bracket
on the rail with round holes.
1.

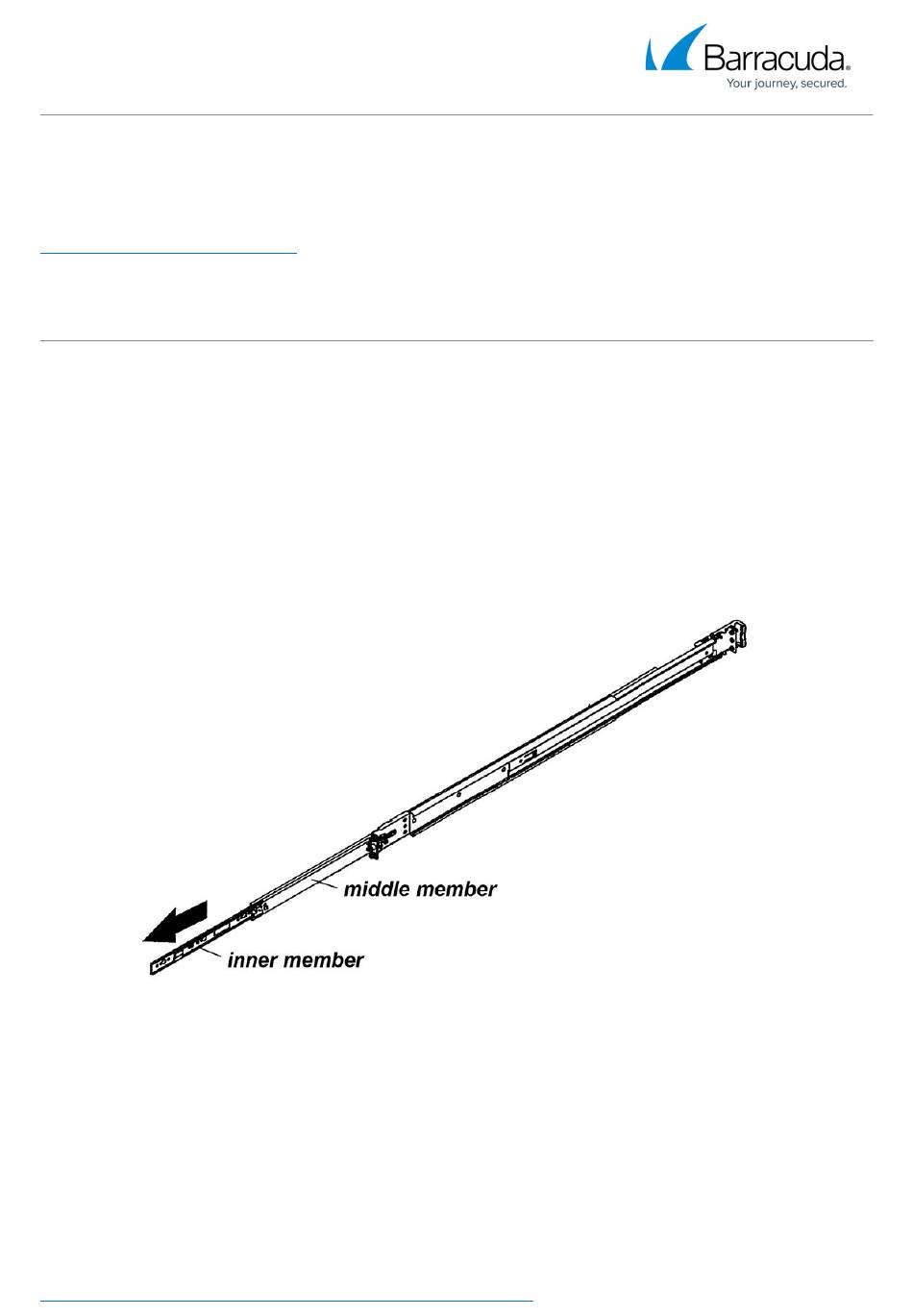

Remove the chassis (inner) member:
1.
Hold the front end of the inner member and pull the inner and the middle member out
until they click.
2.
Push the white plastic latch in the direction the arrow shows and pull the inner member
out of the middle member.
Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B
1 / 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the CloudGen F800 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Barracuda CloudGen F800 C

  • Page 1 Push the white plastic latch in the direction the arrow shows and pull the inner member out of the middle member. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 1 / 11...
  • Page 2 SCB-1911 until it clicks. Tighten the M4 X 4L screws as shown. Repeat Step 1 - 4 on the other side of SCB-1911. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 2 / 11...
  • Page 3 Press the inner steel latch in the direction the label shows and then push the middle member back until it clicks. Repeat this step for the other middle member. Attach two outer members to your rack as shown. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 3 / 11...
  • Page 4 Verify that the ball bearing retainers are pointing in forward direction! Horizontally install the SCB-1911 into the middle member attached to the outer members on Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 4 / 11...
  • Page 5 Press the blue plastic latches towards you and push the SCB-1911 as far as you can. Resource www.aewin.com.tw F800 Revision C and F900 Revision A,B Package Contents Item Quantity Image Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 5 / 11...
  • Page 6 Separating the Inner Rail from the Outer Rail To install the inner rail, separate it from the middle rail first. Use the following procedures: Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 6 / 11...
  • Page 7 Attach the front ear bracket to the system. Repeat these steps to attach the other inner rail and front ear bracket to the other side. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 7 / 11...
  • Page 8 Use the same steps to attach second L-shaped bracket to the other end of the outer rail. Repeat these steps to attach the other two L-shaped brackets to the other outer rail. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 8 / 11...
  • Page 9 Pull out the center rail until the extension safety lock is locked. Hold the system with its front facing you, lift the chassis and carefully insert the system by Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 9 / 11...
  • Page 10 You may also fix the front ear brackets to the rack if the system doesn’t require frequent pulling out of the rack. Rack Installation for Barracuda CloudGen Firewall F800 Revision C and F900 Revision A,B 10 / 11...
  • Page 11 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
