Barracuda F100 Quick Start Manual

Barracuda CloudGen Firewall
Barracuda NG Firewall F100 / F101
https://campus.barracuda.com/doc/6979608/
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to
do so by Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
General

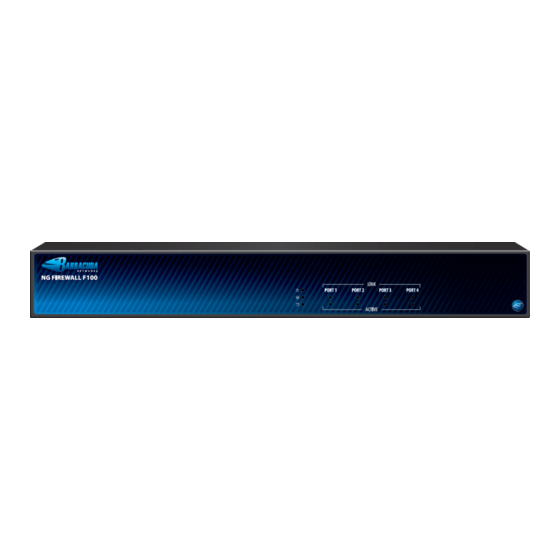

Front
Back
Default Port Configuration
Label OS Notation Speed/Type (Revision A) Speed/Type (Revision B) Management Port
1 port1
2 port2
3 port3
4 port4
Hardware Specifications
Component
CPU
Memory
Flash Disk
USB
Form Factor
Dimensions (W/D/H)
Barracuda NG Firewall F100 / F101
Revision A
10/100 MBit RJ45
10/100 MBit RJ45
10/100 MBit RJ45
10/100 MBit RJ45
Revision A
VIA 500 MHz
36 x 19 x 5 cm
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
1 GB
4 GB
2x USB 2.0
Desktop
Revision B
X
Revision B
VIA 500 MHz
2 GB
4 GB
2x USB 2.0
Desktop
37.5 x 19x 5 cm
