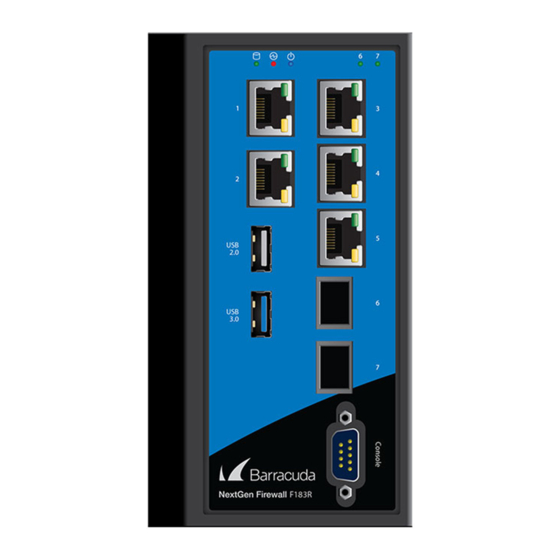

Barracuda CloudGen Firewall
F183R (Rugged)
https://campus.barracuda.com/doc/73008380/
CloudGen Firewall F183R
Warranty and Safety Instructions
Opening your Barracuda Networks appliance or removing its warranty label will void your
warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Power supply is not included in packaging and needs to be ordered separately
(BNGPSUR1a/BNGIPSUR1a).
To prevent damage, connect the DC plug to the appliance before plugging the power adapter
into the AC outlet.
Default Port Configuration
Port Label OS Notation
1
p1
2
p2
3
p3
4
p4
5
p5
6
p6
7
p7
F183R (Rugged)
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
1 GbE Optical Fiber SFP
1 GbE Optical Fiber SFP
Management Port
X
1 / 7
Advertisement
Related Manuals for Barracuda CloudGen F183R
Summary of Contents for Barracuda CloudGen F183R
- Page 1 CloudGen Firewall F183R Warranty and Safety Instructions Opening your Barracuda Networks appliance or removing its warranty label will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Power supply is not included in packaging and needs to be ordered separately (BNGPSUR1a/BNGIPSUR1a).
-
Page 2: Hardware Specifications
Barracuda CloudGen Firewall The CloudGen Firewall hardware appliances ship with a Quick Start Guide. Follow this guide to connect to your firewall. To protect your network, follow the instructions for the standard deployment. Hardware Specifications Interface 5 x 1 GbE RJ45... - Page 3 The hardware specifications list was valid at the time this manual was published. The listed components are subject to change at any time, as Barracuda Networks may change hardware components due to technological advancements. Therefore, the list may not reflect the current hardware configuration of the Barracuda appliance it was delivered with.
- Page 4 Barracuda CloudGen Firewall LEDs and Acoustic Signals Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel contains one power LED (green), one status LED (greed/red), one disc LED (yellow), and various port LEDs. Two acoustic signals indicate appliance boots up or installation was completed.
- Page 5 Barracuda CloudGen Firewall After a hotfix installation, the LED turns to green until the next reboot in case the hotfix installation was successful. This Box is running normally, or Status LED front side - feature requires firmware 7.1.3 Steady installation has finished GREEN or higher OR 7.2.2 or higher.
- Page 6 Barracuda CloudGen Firewall In order to establish a console connection to the appliance using an RS232 serial cable, you need to configure the serial port on the terminal using the following parameters: Parameter Value Baud 19200 Bits Stop bit Parity...
- Page 7 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
