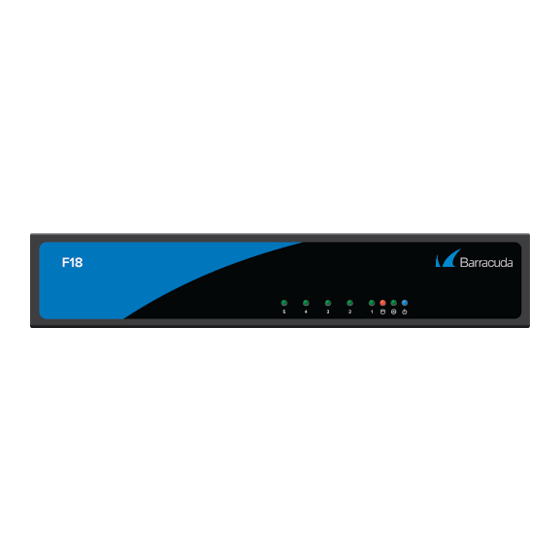

Barracuda CloudGen Firewall
F18 Revision B
https://campus.barracuda.com/doc/86213128/
Warranty and Safety Instructions
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to
do so by Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Always use the power supply shipped with the appliance. To prevent damage, connect the DC
plug to the appliance before plugging the power adapter into the AC outlet.
Default Port Configuration
Port Label OS Notation
1
p1
2
p2
3
p3
4
p4
5
p5
The CloudGen Firewall hardware appliances ship with a
connect to your firewall. To protect your network, follow the instructions for the standard
deployment.
F18 Revision B
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
Management Port
X
Quick Start
Guide. Follow this guide to
1 / 6
Advertisement
Table of Contents
Related Manuals for Barracuda CloudGen F18
Summary of Contents for Barracuda CloudGen F18
- Page 1 F18 Revision B https://campus.barracuda.com/doc/86213128/ Warranty and Safety Instructions Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Always use the power supply shipped with the appliance. To prevent damage, connect the DC plug to the appliance before plugging the power adapter into the AC outlet.
- Page 2 Barracuda CloudGen Firewall Hardware Specifications Interface RJ45 Ethernet NICs 5x10/100/1000 USB 3.0 Serial console 1 [RJ45] Data Storage Intel Apollo Lake RAM [GB] Mass Storage Type Size [GB] 80 or higher Size, Weight, Dimensions Appliance weight [kg] Carton weight with appliance [kg]...
- Page 3 LEDs and Acoustic Signals Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel of the Barracuda CloudGen Firewall F18 B contains one power LED (blue), one disc LED (green), one F18 Revision B 3 / 6...
- Page 4 Barracuda CloudGen Firewall status LED (red), and 4 port LEDs. On the back panel, you can see one power button LED and various port LEDs. Two acoustic signals indicate status of installation. The tables below show the different meanings of the different glowing states and acoustic signals:...
- Page 5 Barracuda CloudGen Firewall Serial Console Port In order to establish a console connection to the appliance using an RJ45 serial cable, you need to configure the serial port on the terminal using the following parameters: Parameter Value Baud 19200 Bits...
- Page 6 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
