DESCRIPTION

2. Description

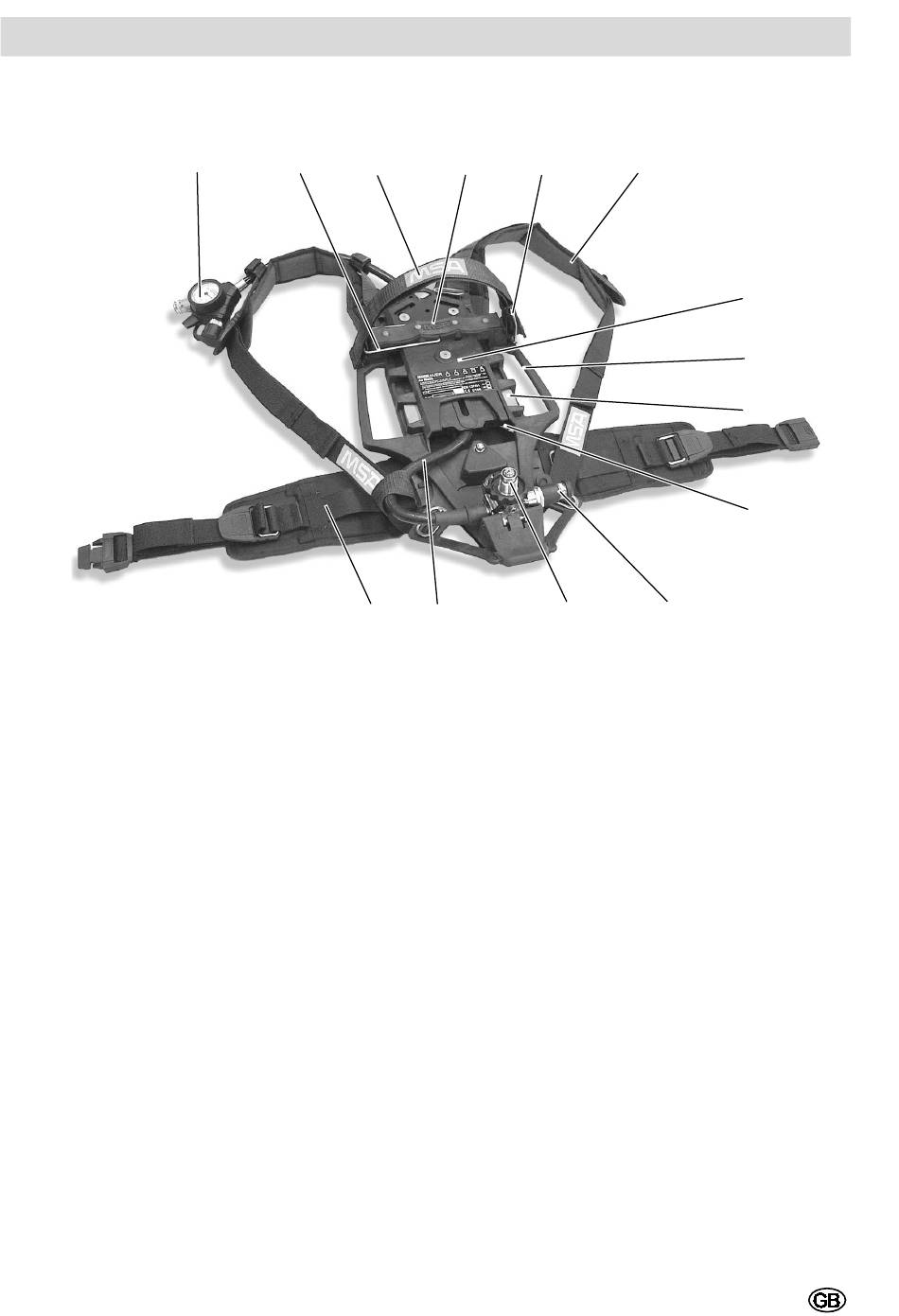

Fig. 1 AirMaxx SL compressed air breathing apparatus
1 Manifold
2 Cylinder separator
3 Cylinder retaining strap
4 Cylinder support
5 Tension clamp
6 Shoulder strap
7 Back plate
2.1.

Standard Model (AirMaXX SL)

The two-piece back plate of the compressed air breathing apparatus is adjustable
to three different lengths and should be adjusted to the user's height. The single
line passes through the sliding upper part from the pressure reducer to the
manifold.
The carrying belts and the hip belt are adjustable in length. The hip belt is fixed to
the back plate elastically. It will automatically return to the horizontal position on
installation.
One or two compressed air cylinders can be placed in the cylinder support. The
cylinder retaining strap is freely adjustable and after inserting the compressed air
cylinder(s), it is tightened and secured using the tension clamp.
6
1 2 3 4
14 13
8 Handle
9 Catch clip
10 Push lock
11 Quick-Fill coupling (Option)
12 Pressure reducer
13 Single line
14 Hip belt
AirMaXX SL
5 6
11
12
MSA
7
8
9
10
