DESCRIPTION

2.2.3. Model AirMaXX SL-M

Besides the standard unit fittings, this model also comes with a built-in short
range transmitter (alphaMITTER). This is assembled on the back plate of the
compressed air breathing apparatus and connected via an additional line to the
pressure reducer.
It is also available as the standard model and in the SL-Q and eXXtreme SL
versions.
14

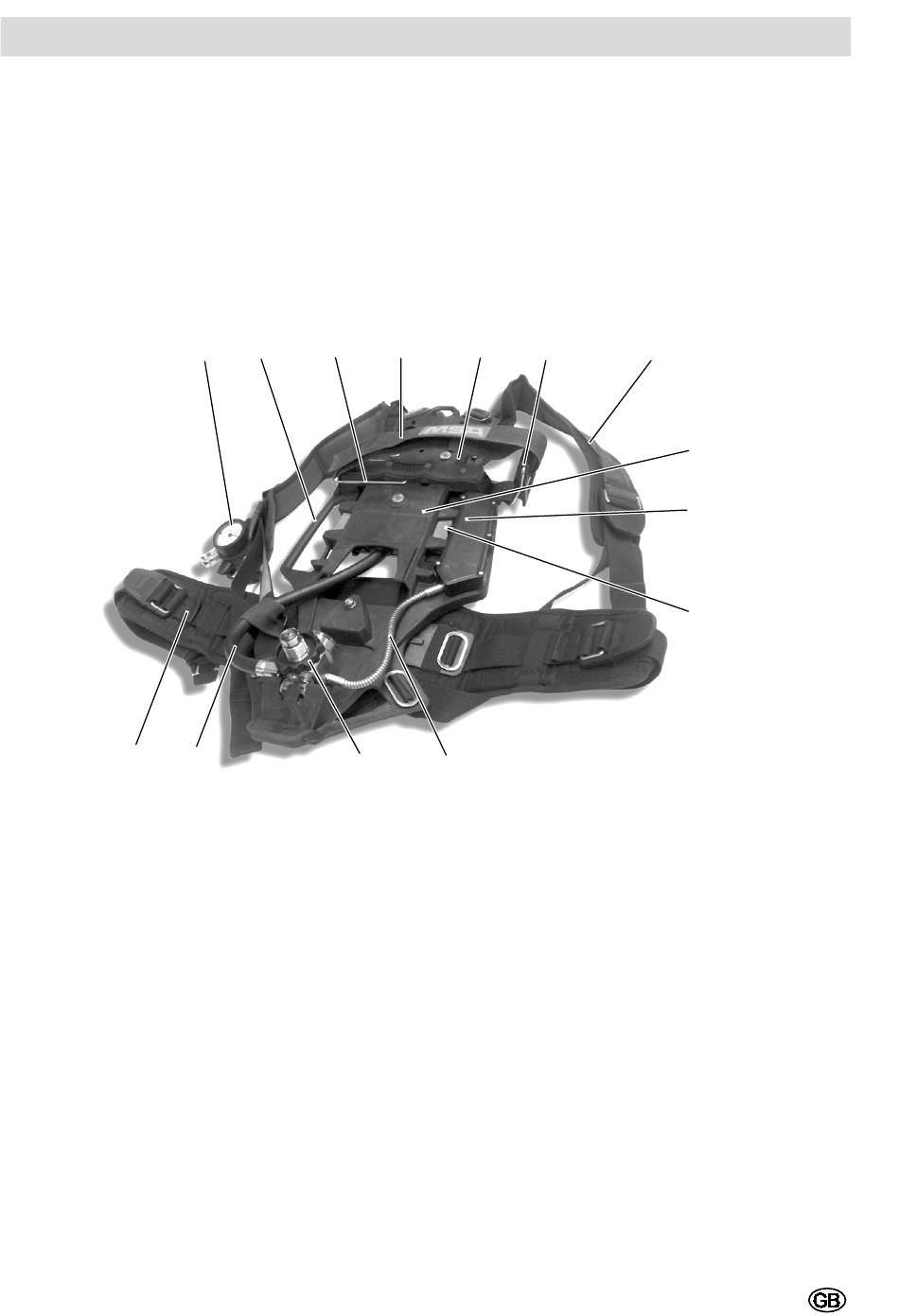

Fig. 7 Model AirMaxx SL-M
1 Manifold
2 Handle
3 Cylinder separator
4 Cylinder retaining strap
5 Cylinder support
6 Tension clamp
7 Shoulder strap
As soon as the system is pressurised it automatically starts to search for a
partner to transfer data to.
The alphaMITTER measures the high pressure of the compressed air cylinder(s)
and transmits this every 2 seconds via short range radio to the alphaSCOUT /
alphaSCOUT TM.
For detailed information on the alphaMITTER see the operating manual for the
"alpha personal network".
10
1 2 3
13
4 5
12 11
8
9
10
11
12
13
14
AirMaXX SL
6 7
Back plate
alphaMITTER (Option)
Catch clip
High pressure line
Pressure reducer
Single line
Hip belt
