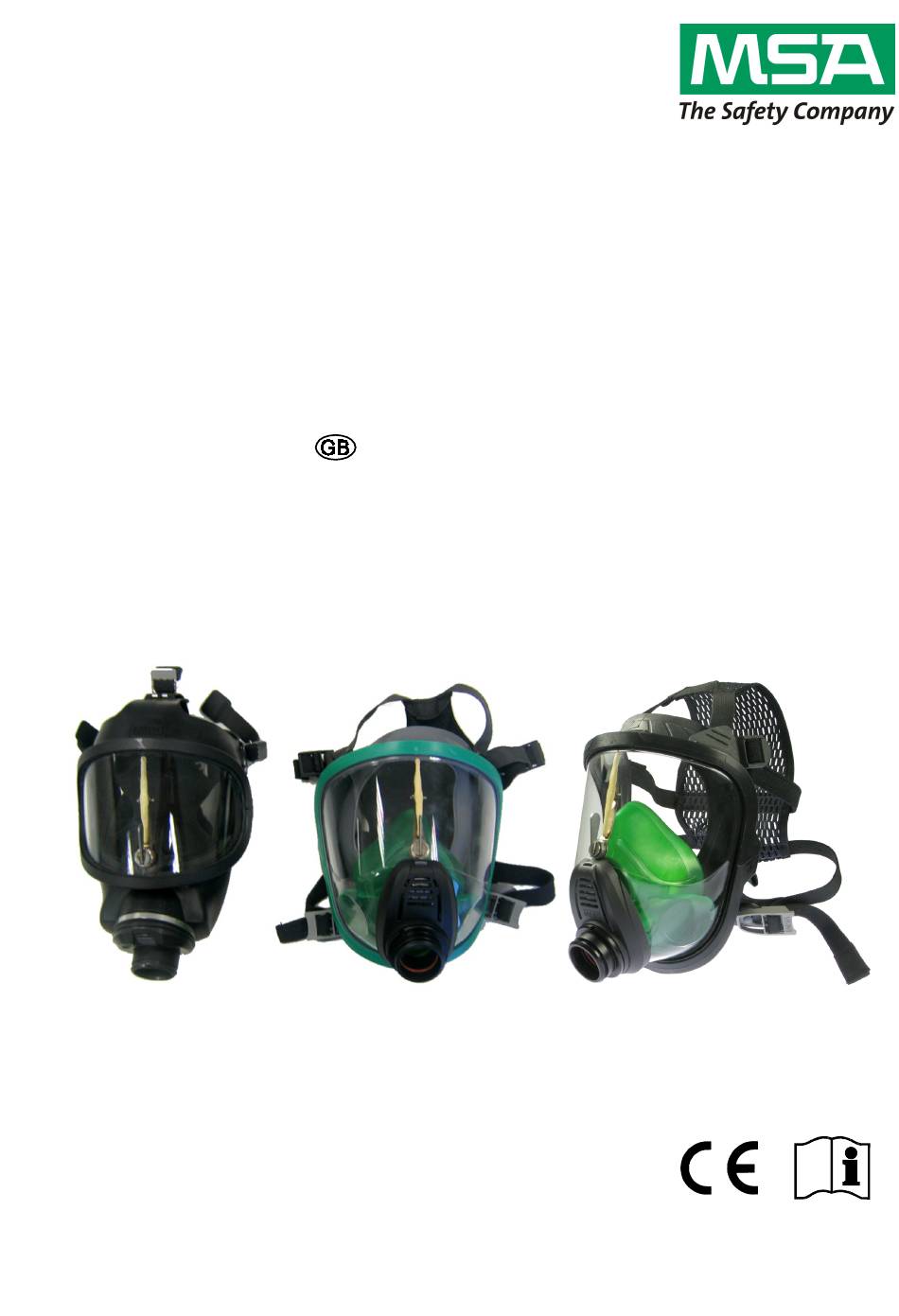

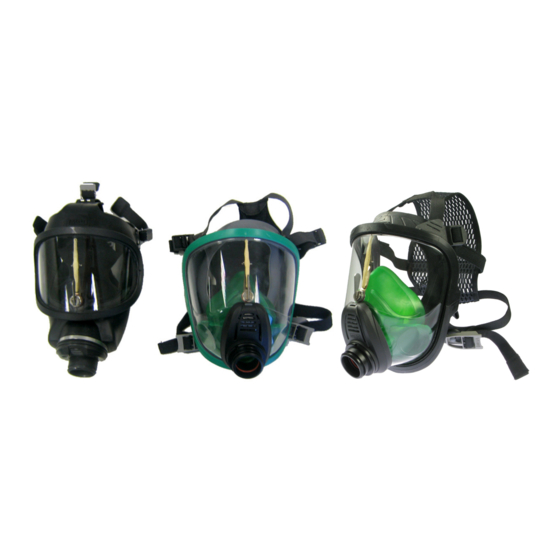

- Page 1 Operating Manual 3S-R AirElite Full Face Mask ® Advantage AirElite Full Face Mask ® Advantage 4000 AirElite Full Face Mask ® AirElite ® - Full Face Masks Order No.: 10065505/05...
- Page 2 MSA AUER GmbH D-12059 Berlin Thiemannstraße 1 Germany © MSA AUER GmbH. All rights reserved...
-
Page 3: Table Of Contents
Leak Test ....................16 Testing Intervals ....................17 Safekeeping and Storage .................. 17 Ordering Information ..................18 8.1. 3S-R AirElite Full Face Mask ..............18 8.2. Advantage AirElite Full Face Mask ............19 8.3. Advantage AirElite 4000 Full Face Mask ..........20... -
Page 4: Safety Regulations
Correct Use The 3S-R AirElite, Advantage AirElite and Advantage 4000 AirElite full face masks act as a face piece (EN 136 CL3) for the MSA AirElite respiratory protection device. They are not themselves complete respiratory protection devices but rather the parts for connecting the device to the user's respiratory tracts. -
Page 5: Description
DESCRIPTION Description The inhalation air flows from the full face mask connection piece directly to the nose cup of the mask. The exhalation air follows the same route however in the opposite direction. This does not flush the eye area. Any misting of the lens is remedied by using the lens wiper. - Page 6 DESCRIPTION Fig. 2 Overview Advantage AirElite Lens Wiper Buckles Head straps Connection piece Mask Lens Cap with speech diaphragm 3S-R AirElite / Advantage AirElite / Advantage 4000 AirElite Full Face Masks...
- Page 7 DESCRIPTION Fig. 3 Overview Advantage 4000 AirElite Lens Wiper Buckles Head straps Connection piece Mask Lens Cap with speech diaphragm 3S-R AirElite / Advantage AirElite / Advantage 4000 AirElite Full Face Masks...
-
Page 8: Use
The Advantage masks must always be transported in a mask container. Before using, soak the lens wiper cover of all masks with some drops of the MSA anti-misting agent to avoid scratching the lens. 3.1. Putting on the Mask Attention! The top of the mask seal must lie directly on the user's forehead. - Page 9 Advantage AirElite Mask / Advantage 4000 AirElite Mask (1) Grasp the head harness with one hand by the eyelet of the head plate (2) Place the chin into the chin stop, then pull the harness over the head until the entire head plate lies against the head.
-
Page 10: Testing For Tight Fit
3.2. Testing for Tight Fit In order to check that the fit is tight, a leak test must be carried out before each use (Figures: 3S-R AirElite Mask as an example). (1) Seal the mask connection piece with the palm of your hand (hand ball test). -
Page 11: Cleaning And Disinfection
Cleaning/Disinfection with a Washing Machine Please follow the MSA washing agent’s user instructions. If in any doubt, ask your local MSA contact person. (1) After cleaning check the two screws for the lens ring. Retighten the screws hand-tight if necessary. -
Page 12: Cleaning/Disinfection With An Ultrasonic Cleaner
Cleaning/Disinfection with an Ultrasonic Cleaner When cleaning/disinfecting with an ultrasonic cleaner please follow the MSA cleaning agent’s user instructions. If in any doubt, ask your local MSA contact person. 4.3. Cleaning by Hand (1) Remove inhalation and exhalation valve discs. -
Page 13: Maintenance
A function and leak test of the mask, as well as the replacement of parts, form part of maintenance (maintenance intervals Section 6). Only MSA spare parts are permitted for repairs. Attention! After all cleaning, disinfection, maintenance or replacement of parts, a leak test must be carried out. - Page 14 MAINTENANCE Advantage /Advantage 4000 AirElite Mask Fig. 5 Advantage AirElite/ Disassembly Plug connector Connection piece Gasket Circlip Inner mask (1) Using spanner D2056738 unscrew plug connector and remove gasket. (2) Press the cap in the area of the adapter and loosen from the mask. (3) Push the circlip apart at the top ends with your thumbs until the fixing has lifted, push the circlip downwards and remove.
-
Page 15: Replacement Of The Mask Lens
MAINTENANCE When replacing the speech diaphragm, the entire connection piece incl. cap, speech diaphragm, circlip and O-ring must be replaced: (1) Disassemble the mask as described, ensuring that the inner mask is fully removed from the connection piece. (2) Fit the new connection piece to the inner mask and assemble the mask as already described. -
Page 16: Replacing The Lens Wiper
5.4. Leak Test The testing of the full face masks for tightness is performed using the MSA mask leak testing instrument in combination with the MSA mask leak testing adapter with plug connector 10074842 in accordance with the relevant operating manual. -
Page 17: Testing Intervals
TESTING INTERVALS Testing Intervals The applicable regulations in each area of use must be observed (e.g. shorter intervals where there are higher risks). If necessary, the work must be performed at earlier intervals other than those in the table. Maximum Intervals Work to be Instruments Before... -
Page 18: Ordering Information
Mask leak testing adapter with connector 10074842 (needed for mask leak testing instrument) Disinfectant MSA anti-misting agent klar pilot Super Plus 10032164 Recommended Special Agents Cleaner EW 80, by Tremonia Chemie, Dortmund Special lubricant BARRIERTA, by Klüber Lubrication München KG, Geisenhausenerstraße 7, 81379 Munich... -
Page 19: Advantage Airelite Full Face Mask
Mask leak testing adapter with connector 10074842 (needed for mask leak testing instrument) Cleaner and Disinfectant MSA anti-misting agent klar pilot Super Plus 10032164 Recommended Special Agents Cleaner EW 80, by Tremonia Chemie, Dortmund Special lubricant BARRIERTA, by Klüber Lubrication München KG, Geisenhausenerstraße 7, 81379 Munich... -
Page 20: Advantage Airelite 4000 Full Face Mask
Mask leak testing adapter with connector 10074842 (needed for mask leak testing instrument) Cleaner and Disinfectant MSA anti-misting agent klar pilot Super Plus 10032164 Recommended Special Agents Cleaner EW 80, by Tremonia Chemie, Dortmund Special lubricant BARRIERTA, by Klüber Lubrication München KG, Geisenhausenerstraße 7, 81379 Munich... - Page 21 ORDERING INFORMATION 3S-R AirElite / Advantage AirElite / Advantage 4000 AirElite Full Face Masks...
- Page 22 ORDERING INFORMATION Space holder for back page 3S-R AirElite / Advantage AirElite / Advantage 4000 AirElite Full Face Masks...
