Device Management
3.2 Configuring the Device

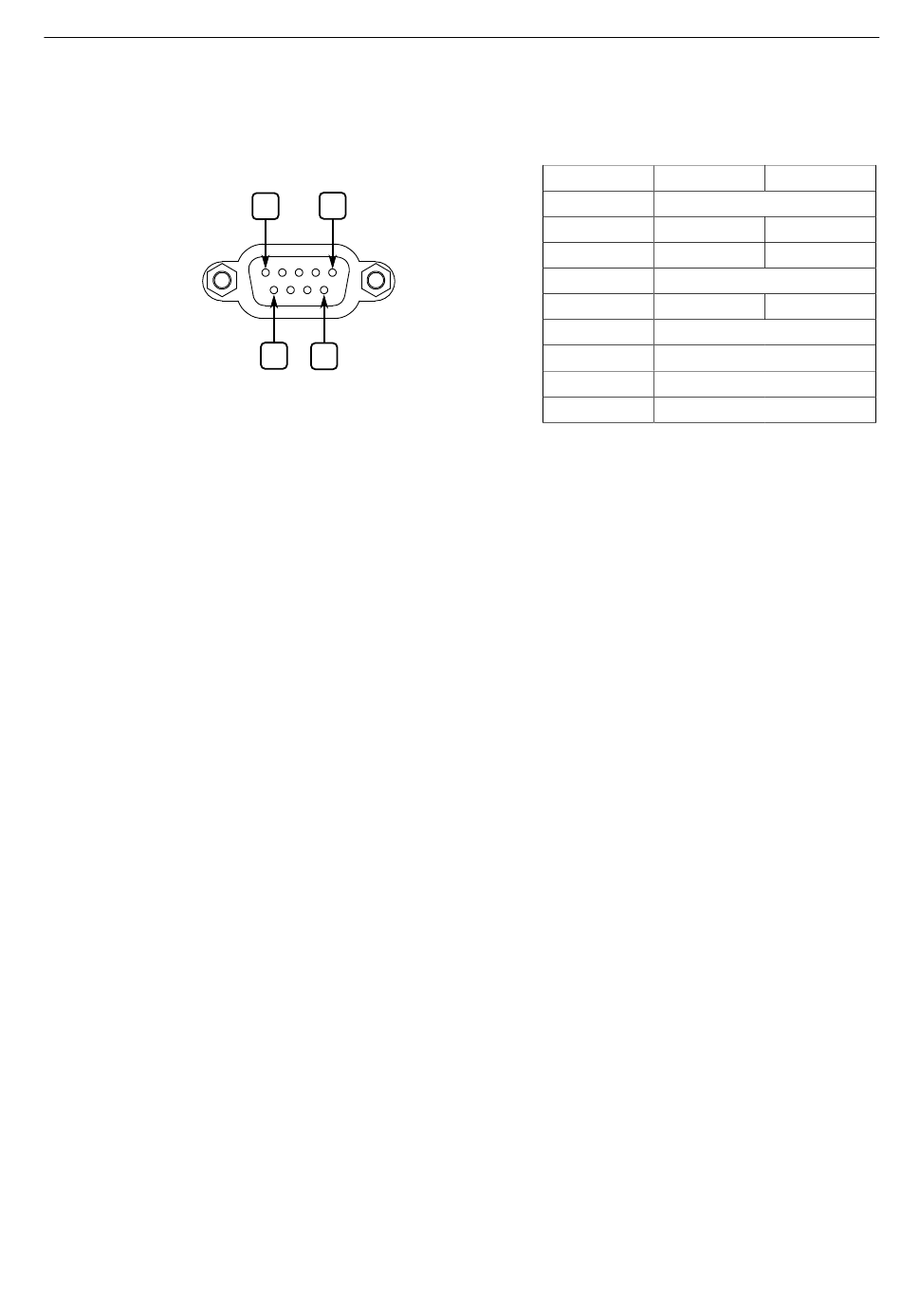

The serial console port implements RS232 DCE (Data Communication Equipment) on
a DB9 connector. The following is the pin-out for the port:
Figure 3.1
a
Connected internally.
b
Connected internally.
Ethernet Ports
Connect any of the available Ethernet ports on the device to a management
switch and access the RUGGEDCOM RS900L console and Web interfaces via the
device's IP address. The factory default IP address for the RUGGEDCOM RS900L is
https://192.168.0.1.
For more information about available ports, refer to
21)".
3.2

Configuring the Device

Once the device is installed and connected to the network, it must be configured.
All configuration management is done via the RUGGEDCOM RS900L interface. For
more information about configuring the device, refer to the RUGGEDCOM ROS
Configuration Manual associated with the installed software release.
3.3

Resetting the Device

The RUGGEDCOM RS900L can be reset (rebooted) using the RESET button. The
RESET button is recessed and can only be reached using a pin or small screwdriver.
To reset the device, quickly press and release the RESET button with a pin.
20
1
5
9
6
Serial DB9 Console Port
Pin Name
a
1 Reserved (Do Not Connect)
2 TX
3 RX
a
4 Reserved (Do Not Connect)
5 GND
a
6 Reserved (Do Not Connect)
b
7 Reserved (Do Not Connect)
b
8 Reserved (Do Not Connect)
9 Reserved (Do Not Connect)
"Communication Ports (Page
Installation Manual, 04/2021, C79000-G8976-1027-09
Description
Transmit Data
Receive Data
Signal Ground
