Communication Ports

The RUGGEDCOM RS900L can be equipped with various types of communication
ports to enhance its abilities and performance.
2
1
1
2
3

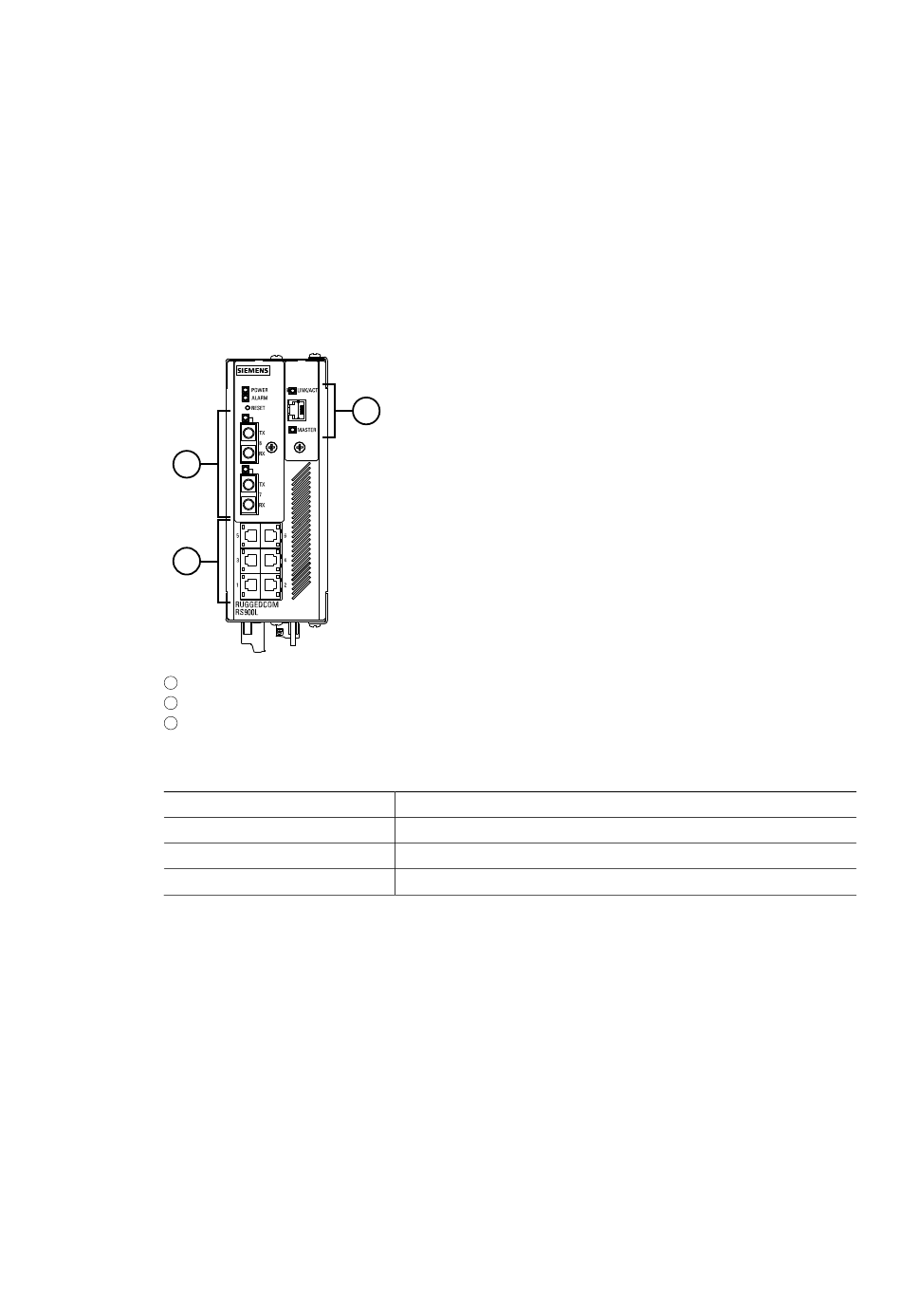

Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RS900L supports multiple 10/100Base-TX Ethernet ports that allow
connection to standard Category 5 (CAT-5) shielded or unshielded twisted-pair cables
with RJ45 male connectors.
RUGGEDCOM RS900L
Installation Manual, 04/2021, C79000-G8976-1027-09
3
Ports 1 to 6
Ports 7 and 8
Port 9
Port Assignment
Port
1 to 6
7 and 8
9
Copper Ethernet Ports (10/100Base-TX)
Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
EoVDSL Port
Type
