Summary of Contents for Eliminator Lighting EM20
- Page 1 EM20 User Guide US#: EM20 UPC#: 817175010457...
- Page 2 Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Guidelines Frequently Asked Questions Technical Specifications | Dimensional Drawings... -
Page 4: General Information
G E N E R A L I N F O R M A T I O N INTRODUCTION Please read and understand all instructions in this manual carefully and thoroughly before attempting to operate this product. These instructions contain important safety and use information. UNPACKING: This product has been thoroughly tested and has been shipped in perfect condition. -
Page 5: Limited Warranty (Usa Only)
This warranty is the only written warranty applicable to Eliminator Lighting, an ADJ Products, LLC brand, and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published. -
Page 6: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ELIMINATOR LIGHTING is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 7 S A F E T Y G U I D E L I N E S DO NOT position device close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of devices without knowledge of how to do so. DO NOT permit operation by persons who are not qualified to operate these types of devices.
-
Page 8: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices, please refer all other service issues to Eliminator Lighting. Should you need any spare parts, please order genuine parts from Eliminator Lighting. -
Page 9: Overview

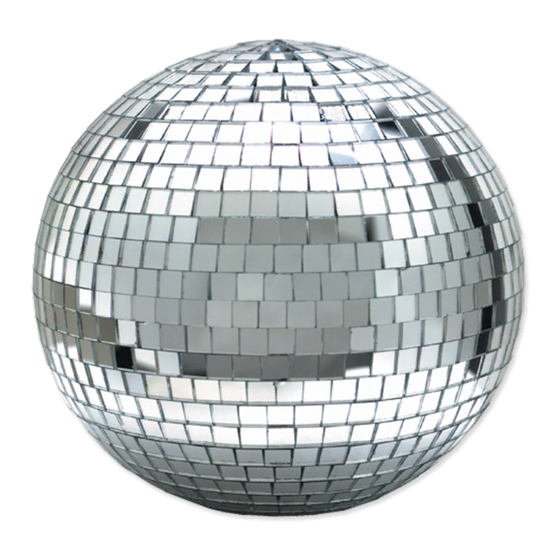

O V E R V I E W INCLUDED ITEMS: 20” Mirror Ball (x1) 1. Mirror Ball 2. Primary Mounting Eyelet 3. Secondary Mounting Eyelet... -
Page 10: Installation Guidelines
I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep devices minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. DO NOT INSTALL THE DEVICES IF YOU ARE NOT QUALIFIED TO DO SO! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, INCLUDING BUT NOT LIMITED TO CALCULATING WORKING LOAD LIMITS, KNOWLEDGE OF INSTALLATION MATERIAL BEING USED, AND PERIODIC SAFETY INSPECTION OF ALL INSTALLATION MATERIAL. - Page 11 I N S T A L L A T I O N G U I D E L I N E S • The mirror ball unit includes two separate mounting eyelets. The eyelet located at the center of the top of the mirror ball should be used as the primary mounting point, while the eyelet located slightly off-center should be used as the secondary mounting point.
- Page 12 I N S T A L L A T I O N G U I D E L I N E S SAFETY CABLE ATTACHMENT Use of an optional safety cable is recommended. To install, attach a safety cable to the mirror ball eyelet and the motor safety eyelet or mounting fixture.
- Page 13 I N S T A L L A T I O N G U I D E L I N E S LIGHTING THE MIRROR BALL Experiment with different angles and distances to achieve desired result.
-
Page 14: Frequently Asked Questions
Listed below are a few answers to common questions users may have. 1. Can the EM20 be mounted onto to a ceiling? Yes, it may be installed onto a flat ceiling surface that can support 10 times the combined total weight of the attached mirror ball, motor and any mounting accessories. -
Page 15: Technical Specifications | Dimensional Drawings
T E C H N I C A L S P E C I F I C A T I O N S Model: EM-20 Dimensions: • 19.9” (505 mm) diameter (mirror ball body) • 21.3” (540 mm) overall height including mounting eyelets •...
