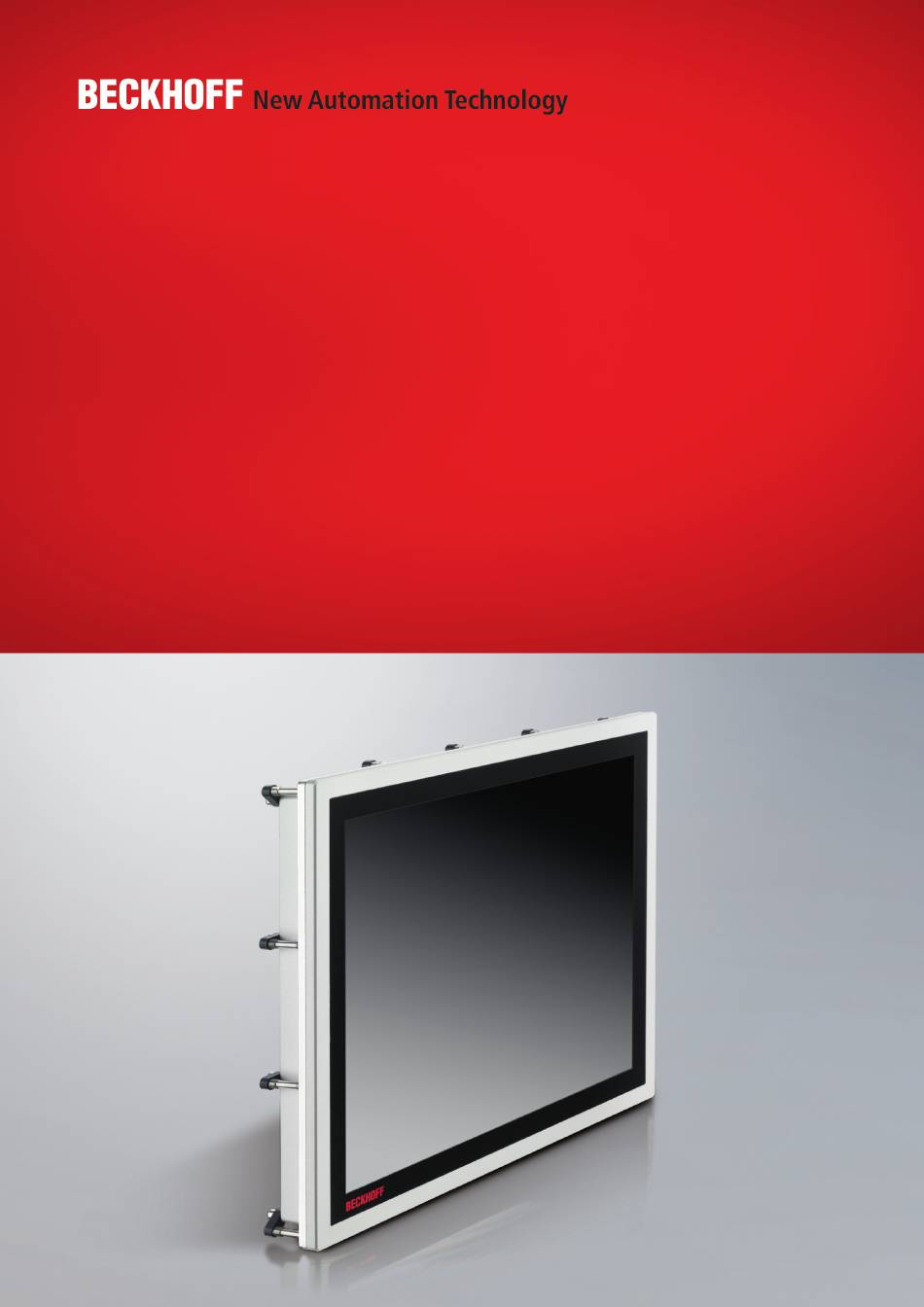

- Page 1 Installation and operating instructions | EN CPX27xx-0010 Multi-touch Panel PC for use in hazardous locations, zone 2/22 4/20/2021 | Version: 0.2...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Notes on the documentation ........................ 5 Explanation of symbols........................ 6 Documentation issue status ...................... 7 2 For your safety............................ 8 Intended use ............................ 8 Notes about operation in potentially explosive areas ................ 9 2.2.1 Special conditions (ATEX) .................... 9 2.2.2 Special conditions (IECEx) .................... - Page 4 Table of Contents 10.1 Standards reference for explosive atmospheres ................ 34 10.2 Approvals for USA and Canada ...................... 36 10.3 Support and Service ........................ 37 Version: 0.2 CPX27xx-0010...
-
Page 5: Notes On The Documentation
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Explanation Of Symbols
Notes on the documentation Explanation of symbols The following symbols with corresponding warnings or explanatory text are used in the documentation. Read and follow the warnings. Symbols that warn of personal injury: DANGER Serious risk of injury Note this warning. Hazard with high risk of death or serious injury. WARNING Risk of injury Note this warning. -
Page 7: Documentation Issue Status
Notes on the documentation Documentation issue status Version Comment Preliminary Version CPX27xx-0010 Version: 0.2... -
Page 8: For Your Safety
Beckhoff Automation GmbH & Co. In addition, the following actions are excluded from the liability of Beckhoff Automation GmbH & Co. KG: • Failure to comply with this documentation. -
Page 9: Notes About Operation In Potentially Explosive Areas
For your safety Notes about operation in potentially explosive areas 2.2.1 Special conditions (ATEX) WARNING Danger of explosion Gases or dusts can be ignited in potentially explosive areas. Read and follow the safety instructions to pre- vent deflagration or explosions. The Panel PC must be installed in a housing, which ensures protection class IP54 for gas according to EN 60079-7. - Page 10 For your safety Switch off the power supply and ensure that no explosive atmosphere occurs when the CFast card is replaced. Fix the USB cables with cable straps to the mounting bracket. Check tensile strength of the cables regularly and retightened the cable straps if necessary. The Panel PC may only be mounted horizontally (see: Mounting [} 21]).
-
Page 11: Marking
For your safety 2.2.3 Marking The Panel PC CPX27xx-0010 bears a continuous serial number, markings and a production date on the name plate. xxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx Fig. 1: Name plate on the back side of the Panel PC CPX27xx-0010. The Panel PC CPX27xx-0010 is certified for potentially explosive areas and bears the following markings: ATEX: BVS 17 ATEX E 119 X Ta: 0..55°C II 3G Ex ec IIC T4 Gc... -
Page 12: Safety Instructions
• The sensitivity of an Panel PC against malicious software increases with the number of installed and active software. • Uninstall or disable unnecessary software. Further information about the safe handling of networks and software can be found in the Beckhoff Information System: http://infosys.beckhoff.com... -
Page 13: Staff Qualification
For your safety Staff qualification All operations involving Beckhoff software and hardware may only be carried out by qualified personnel with knowledge of control and automation engineering. The qualified personnel must have knowledge of the administration of the Panel PC and the associated network. -
Page 14: Transport And Storage
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. Version: 0.2 CPX27xx-0010... -

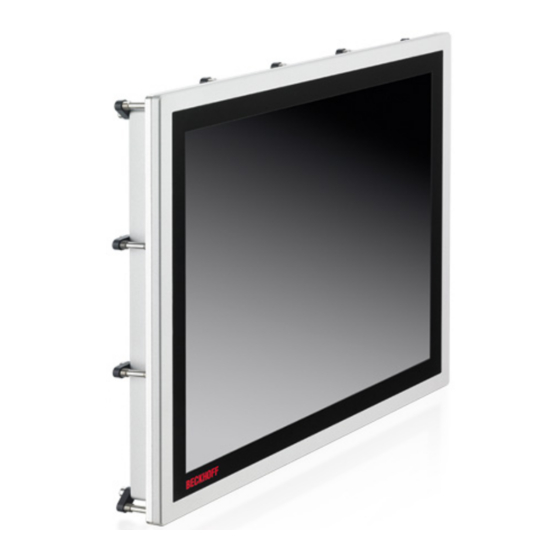

Page 15: Product Overview
It is designed for installation in the front of a control cabinet for use in hazardous locations, zone 2/22. The CPX27xx combine reliable Beckhoff Control Panel design with state-of-the-art Industrial PC technology. The right display size is available for every application. -
Page 16: Access To The Interfaces
Product overview Access to the interfaces The interfaces of the Panel PC are located at the rear side of the housing. Fig. 3: Connection block of the Panel PC CPX27xx-0010 with all interfaces. Version: 0.2 CPX27xx-0010... -
Page 17: Name Plate
Product overview Name plate The Panel PC CPX27xx-0010 bears a continuous serial number, markings and a production date on the name plate. xxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx Fig. 4: Name plate on the back side of the Panel PC CPX27xx-0010. The Panel PC CPX27xx-0010 is certified for potentially explosive areas and bears the following markings: ATEX: BVS 17 ATEX E 119 X Ta: 0..55°C II 3G Ex ec IIC T4 Gc... -
Page 18: Description Of The Interfaces
Product overview Description of the interfaces Fig. 5: Interfaces of the Panel PC CPX27xx-0010. Interface Interface Ground [} 19] USB output (X105 - X108) [} 19] Status LEDs [} 20] DVI-I out (X109) [} 19] Power supply (X101) [} 18] CFast slot [} 20] LAN1, LAN2 (X103, X104) [} 18] 4.3.1 Power supply (X101) Conductive cross-section... -
Page 19: Usb Output (X105 - X108)
Product overview 4.3.3 USB output (X105 - X108) X105, X106, X107, X108 USB Type-A twin circuit board mounting (FCI 72309-0030B USB Double Receptacle A-Type) The four USB interfaces (X105 - X108, connector type A) are used for connecting peripheral devices with USB connection. -
Page 20: Status Leds
Product overview 4.3.6 Status LEDs The Status-LEDs are located near the power supply connector (X101): Fig. 7: Status LEDs of the Panel PC CPX27xx-0010. Table 4: Description of the Status LEDs. Color Description TwinCAT Stop blue TwinCAT Config blue / red flashing TwinCAT Config (fieldbus error) green TwinCAT Run... -
Page 21: Mounting And Wiring
Mounting and wiring Mounting and wiring Mounting The Panel PC CPX27xx is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter: Technical Data [} 33]). Permitted mounting position The Panel PC may only be mounted horizontally. - Page 22 Mounting and wiring Earthing measures Earthing connections dissipate interference from external power supply cables, signal cables or cables to peripheral equipment. Establish a low-impedance connection from the earthing point on the Panel PC housing to the central earthing point on the control cabinet wall, in which the Panel PC is being installed. Malfunction possible with missing ground connection A proper ground connection of the device is absolutely necessary for the correct function of the touchscreen.
-
Page 23: Mounting Of The Panel Pc
Mounting and wiring 5.1.2 Mounting of the Panel PC The Panel PC is installed in the cabinet wall with clamping levers. You need to cutout the cabinet wall for the Panel PC. For the cutout dimensions of the Panel PC see chapter: Assembly dimensions [} 30]. The Panel PC may only be mounted horizontally. -
Page 24: Wiring
Mounting and wiring Wiring 5.2.1 Preperation and protective earthing NOTE The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. -
Page 25: Connecting
Mounting and wiring 5.2.2 Connecting NOTE Use the correct fuse The power supply must be protected with maximum 4 A. Cable Cross Sections For the connection of the power supply, wiring with a cable-cross-section of 0.2 … 1.5 mm² must be used. With bigger distances between voltage source and PC, you take the voltage drop as a function of the cable- cross-section as well as voltage fluctuations of your distribution voltage into account, so that is secured that the voltage doesn't fall under 22 V at the power supply. -
Page 26: Using The Mounting Bracket
Mounting and wiring 5.2.3 Using the mounting bracket In potentially explosive areas the USB plugs must not slip out of the interfaces. Fix the USB cables with cable straps to the mounting bracket. Requirements: • Cable straps. • Nipper or a side cutter. Proceed as follows: 1. -
Page 27: Operation
Operation Operation Switching the Panel PC on and off Switching on The Panel PC does not have its own mains power switch. As soon as the power supply is switched on the Panel PC is activated. Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 28: Servicing And Maintenance
Maintenance The Panel PC is maintenance-free. Do not open the Panel PC. For hardware problems, please contact the Beckhoff Service Emergency procedures In case of fire, the Panel PC should be extinguished with powder or nitrogen. -
Page 29: Troubleshooting
No power supply to the Panel PC/ Check power supply cable Industrial PC 1. Correctly connect cable 2. Call Beckhoff Service Cable not connected Computer boots, software starts, but Cause of the fault is either in the Call the manufacturer of the... -
Page 30: Assembly Dimensions
Assembly dimensions Assembly dimensions CPX2715-0010 Version: 0.2 CPX27xx-0010... - Page 31 Assembly dimensions CPX2719-0010 CPX27xx-0010 Version: 0.2...
- Page 32 Assembly dimensions CPX2721-0010 Version: 0.2 CPX27xx-0010...
-
Page 33: Technical Data
Technical Data Technical Data Product name CPX2715-0010 CPX2719-0010 CPX2721-0010 Dimensions (W x H x D) 368.2 x 295.3 x 67,5 438,3 x 369 x 67,5 mm 543 x 334.7 x 67,5 mm Weight approx. 4.7 kg approx. 6.8 kg approx. 7 kg Clamping Levers: tightening torque 1 to 1.2 Nm of the screws... -
Page 34: Appendix
Appendix Appendix 10.1 Standards reference for explosive atmospheres The following standards have been used: ATEX Standard Description EN 60079-0:2012+A11:2013 Explosive atmospheres - Part 0: Equipment - General requirements EN 60079-7:2015 Explosive atmospheres - Part 7: Equipment protection by increased safety "e" EN 60079-31:2014 Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t"... - Page 35 Appendix Standard Description CAN/CSA C22.2 No. 60079-31:2015 Explosive atmospheres – Part 31: Equipment dust ignition protection by enclosure “t” CAN/CSA C22.2 No. 61010-1:2012 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements CPX27xx-0010 Version: 0.2...
- Page 36 Appendix 10.2 Approvals for USA and Canada FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 37 Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: https://www.beckhoff.com You will also find further documentation for Beckhoff components there.
- Page 39 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
