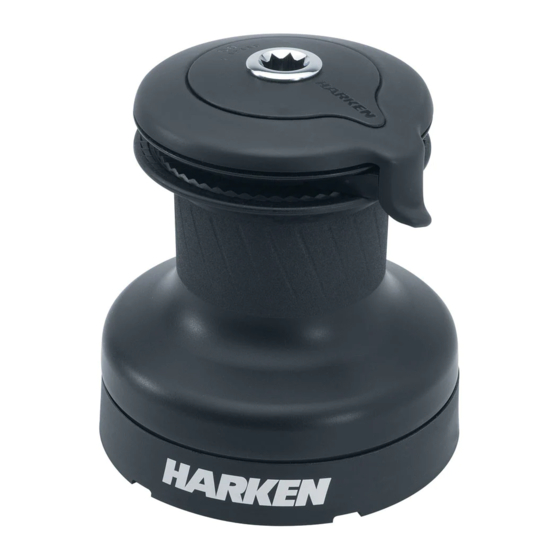

- Page 1 Installation and Maintenance Manual MRPW-E Powered Performa Winch ™ 40.2 STP EL 40.2 STQP EL...
-
Page 2: Table Of Contents
Performa Winch 40.2 STP EL Performa Winch 40.2 STQP EL Horizontal electric motor Parts list Performa Winch 40.2 STP EL Performa Winch 40.2 STQP EL Horizontal electric motor 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 3: Introduction
® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Technical Characteristics - Winch Quattro Performa
MWL (A) 12 V 24 V 12 V 24 V winch 40.2 STQP EL horizontal Weight ST EH weight (Kg) 13,9 Versions: EH = horizontal electric winch 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 5: Maximum Working Load
Outline Winch 40.2 STP Horizontal electric motor (12 V / 24 V) Ø156 Ø156 Ø80,5 Ø80,5 Ø80,5 Ø80,5 Ø156 Ø156 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 6: Maximum Working Load
Outline Winch 40.2 STQP EL Horizontal electric motor (12 V / 24 V) Ø180 Ø180 Ø80,5 Ø80,5 Ø80,5 Ø80,5 Ø154 Ø154 Ø154 Ø154 Ø180 Ø180 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 7: Installation
Once you have decided the correct mounting position for the winch on the deck and checked the space available below deck, proceed with the installation. 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 8: Installation Procedure
6. Lift off the drum n°21 rotating and lifting it. Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 5. 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 9: Winch Installation Procedure
B. Remove the winch and drill the five 6.2 mm diameter holes. Below is a reduced scale diagram. ® The drilling cut out template is available on the Harken website, www.harken.com Winch STP ¯80 cut out for... - Page 10 E. Remove the excess adhesive/sealant from the holes and base drainage channels Reassemble the winch following the steps of the Procedure in the reverse order, and apply the products indicated in the section on maintenance. 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
-
Page 11: Positioning The Self-Tailing Arm
( 8 Nm/ 71 in-lb) 3. Position the reduction gear and motor 4. Tighten the two screws ( 8 Nm/ 71in-lb). Be sure to align the flange. 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 12: Electric Equipment
Dual Function Control Box manual. WARNING! Before installing and using the device, read carefully the Dual Function Control Box manual available on web site www.harken.com Refer to the following chart for wire size: Total distance between winch and battery Winch Current Under 16.4 ft... - Page 13 10 Nm (88 in-lb). NOTICE Note that correct electrical contact sequence is: Nut – Cable Terminal – Self-Locking Washer – Lock Nut 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
-
Page 14: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it WARNING! Make sure that the power is switched off before installing or carrying out maintenance on the winch. - Page 15 10. Unscrew the 6 hex screws n°15 ( 8Nm/71 in-lb) 11. Remove the drum support n°14 12. Remove the washer n°11 Important: washer n°11 may remain inside the drum support! 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
- Page 16 16. Remove shaft n°7 17. Slide off gear n°9 18. Remove the pawls n°4. To facilitate the operation press the spring against the pawl with a blade. 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
- Page 17 Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease. Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls! 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E...
-
Page 18: Winch Exploded View With Maintenance Products
® Apply Harken grease: 1. on assy socket screw ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE Harken grease to apply on all ®... -
Page 19: Winch Assembly
Harken grease. ® ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E... -
Page 20: Harken Limited Worldwide Warranty
® ® Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website www.harken.com Ordering spare parts Spare parts can be requested from Harken ® W XXXXX ® described in the Harken Limited Worldwide XXXXXXXXX Warranty, indicating the part number in the Parts List and including the serial number of the winch for which the parts are required. -
Page 21: Exploded View 1/2
Exploded view 1/2 Performa Winch 40.2 STP EL 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... - Page 22 Exploded view 2/2 Performa Winch 40.2 STP EL 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
-
Page 23: Performa Winch 40.2 Stqp El
Exploded view 1/2 Performa Winch 40.2 STQP EL 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... - Page 24 Exploded view 2/2 Performa Winch 40.2 STQP EL 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
-
Page 25: Parts List
M0635103 Socket head screw M6x16 UNI 5931 M603370094 Bushing XSM-1012-20 S657280052 Performa Shim W40 A74136000 Bearing Ø56xØ68x24 *Available with service kit; see website www.harken.com **Winch product sticker 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 26: Performa Winch 40.2 Stqp El
S415060002 Disconnect Rod W40 S4130900A7 Bushing Ø22xØ25x8.5 M0635103 Socket head screw M6x16 UNI 5931 A74136000 Bearing Ø56xØ68x24 *Available with service kit; see website www.harken.com **Winch product sticker 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™... -
Page 27: Horizontal Electric Motor
Polarity motor sticker Screw stud M6x26 Washer Ø6 Nut M6 UNI5588 M6014206 Key DIN 6885 5x5x15 Polarity motor sticker Identification motor sticker Anti-seize Harken ® Grease Axial Threadlocker 40.2 ST EL Powered Performa Winch Installation and Maintenance Manual - Mod.E ™...
