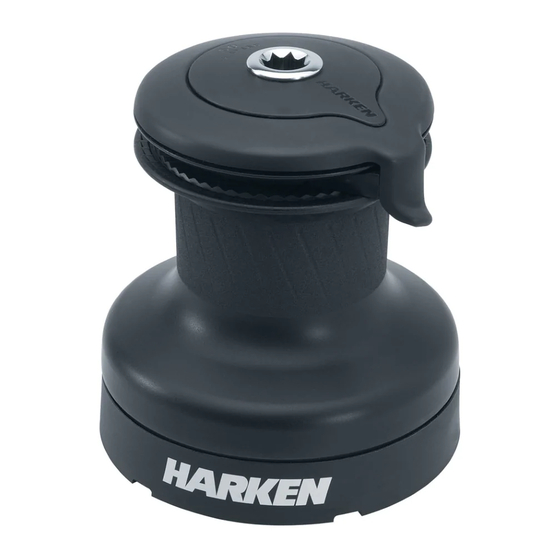

- Page 1 Installation and Maintenance Manual MRPW-D Powered Performa Winch ™ 60.3 STP E/HY...
- Page 2 Electric equipment Hydraulic connections diagram Maintenance Washing Maintenance table Winch disassembly procedure Winch exploded view with maintenance products Winch assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Performa Winch 60.3 STP EL/HY Horizontal electric motor Vertical electric motor...
-
Page 3: Technical Characteristics
Harken® accepts no responsibility for defective installation or reassembly of its winches. In case of doubt the Harken® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
Installation current absorption at winch motor nominal power (W) MWL (A) 12 V 24 V 12 V 24 V horizontal winch 60.3 ST EL 1500 2000 vertical Winch 60.3 ST HY (hydraulic) 1st speed 2nd speed 3rd speed line speed (m/min)* 66,5 30,3 10,1... - Page 5 Outline Winch 60.3 STP EL/HY Horizontal electric motor (12 V / 24 V) Ø236 Ø236 Ø121 Ø121 Ø121 Ø121 Ø236 Ø236 Vertical electric motor (12 V / 24 V) Ø236 Ø236 Hydraulic motor Ø121 Ø121 Ø236 Ø236 Ø121 Ø121 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch...
- Page 6 It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. Harken does not supply the screws needed to install the winch since these may vary depending ®...
-
Page 7: Installation Procedure
Installation procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 1. - Page 8 Follow steps below only to install the winch using hexagonal headed bolts 7 . Remove the stripper arm housing n°21 8. Slide out the assy clutch n°36 9. Slide out the central shaft n°19 10. Unscrew the 6 hex screws n°17 ( 20Nm/177 in-lb) Install the winch on the deck in the position you have chosen, keeping in...
- Page 9 A. Position the base of the winch on the deck and mark the position of the holes or use the drilling cut-out template at the point where you have decided to place the winch. Below is a reduced scale diagram. The drilling cut out template is available on the Harken website, www.harken.com ®...
- Page 10 NOTICE Before closing the winch, make sure the holes and drainage channels in the base of the winch are not obstructed. Positioning the self-tailing arm Position the self-tailing arm so that the line leaving the winch is led into the cockpit. Motor installation procedure WARNING! Make sure that the power is switched off before installing or carrying out maintenance on...
-
Page 11: Electric Equipment
Dual Function Control Box manual. WARNING! Before installing and using the device, read carefully the Dual Function Control Box manual available on web site www.harken.com Refer to the following chart for wire size: Total distance between winch and battery Winch Current Under 16.4 ft... - Page 12 NOTICE To connect motor, attach cable terminals to clamps between nut and lock nut. Hold nut in contact with motor using a spanner and tighten other nut with second spanner. Take special care not to turn the central spindles. These instructions apply when assembling and disassembling.
- Page 13 Hydraulic connections diagram The hydraulic motor must be connected to a hydraulic system using two high-pressure tubes which serve for input or output according to the direction in which the motor will be run. The motor also needs a third connection with a low pressure tube for drainage, so that excess oil can return to the main tank to avoid shortening the life of the motor.
-
Page 14: Maintenance Table
Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken Tech Service at techservice@harken.it ®... - Page 15 8. Slide out the assy clutch n°36 9. Slide out the central shaft n°19 10. Unscrew the 6 hex screws n°17 11. Slide out the drum support n°16 ( 20Nm/177 in-lb) 12. Remove the gear n°30, pawls carrier n°32, 13. Remove the gear n°6, pawls carrier n°3 the bearings n°33 and 35 and the pin n°34 and the washer n°7 Important: washer n°7 may remain inside...
- Page 16 14. Remove the idler and pinion n°14 15. Remove the pawl carrier n°11 16. Remove gear n°10 17 . Remove the gear n°2 18. Remove the roller bearing n°12 18. Remove roller bearings n°15 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
- Page 17 I. Unscrew the 4 screws n°25 II. Remove the jaws n°22 ( 4Nm/35 in-lb) If it is necessary to replace any jaws of the winch, proceed as follows: Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
- Page 18 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
- Page 19 Before screw the central screw, check the correct position of the o-ring in the assy socket and apply Harken grease. ® In case of doubt concerning the assembly procedure contact Harken® Tech Service: techservice@harken.it 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
-
Page 20: Ordering Spare Parts
Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website www.harken.com Ordering spare parts ® Spare parts can be requested from Harken W XXXXX ® described in the Harken Limited Worldwide XXXXXXXXX Warranty, indicating the part number in the Parts List and including the serial number of the winch for which the parts are required. -
Page 21: Exploded View
Exploded view 1/2 Performa Winch 60.3 STP EL/HY 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™... - Page 22 Exploded view 2/2 Performa Winch 60.3 STP EL/HY 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
-
Page 23: Parts Lists
Bushing Ø22xØ25x15.5 S414540080 Washer 3 speed Winch Serial Number Sticker M0604003 Screw M6x12 UNI 5933 S4155700A0 Stripper arm support *Available with service kit; see website www.harken.com **Winch product sticker 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™... - Page 24 M6020097 O-ring 19.1x1.6 S418620001 Disconnect spring S414050080 Flange GearMotor Shaft HO M6010303 Key 8x5x40 UNI 7511 Polarity motor sticker Identification motor sticker Anti-seize Harken ® Grease Axial Threadlocker 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
- Page 25 M0620401 Spring pin 5x40 DIN1481 S326490001 Spring S415040080 Bushing S329360082 Washer M0666603 Screw M6x16 UNI 5933 Identification motor sticker Polarity motor sticker Anti-seize Harken ® Grease Axial Threadlocker 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
-
Page 26: Hydraulic Motor
Spring pin 5x40 DIN1481 M0621503 Washer D.13 U1751 DIN127 S415010080 Bushing M0667103 Screw M12x35 UNI5931 S326490001 Spring S329360082 Washer M0635303 Screw M8x16 UNI6109 Anti-seize ® Harken Grease Axial Threadlocker 60.3 STP EL/HY Installation and Maintenance Manual - Mod.D Performa Winch ™...
