Installation and Maintenance Manual
MRPW-D

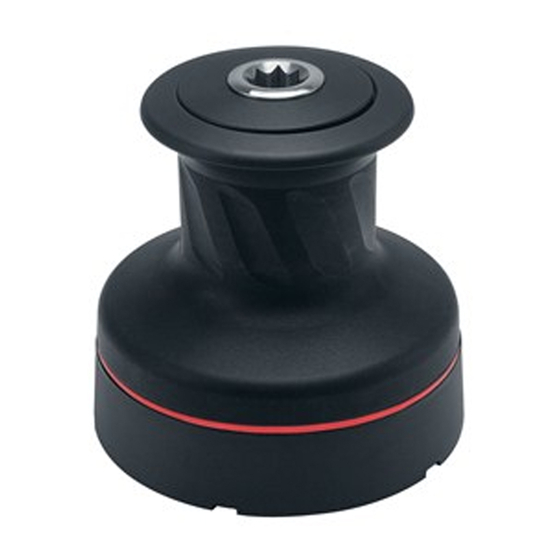

Performa
Winch 35.2 PTP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa 35.2 PTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harken Performa 35.2 PTP

  • Page 1 Installation and Maintenance Manual MRPW-D Performa Winch 35.2 PTP ™...
  • Page 2 Maximum working load Outline Installation Installation procedure Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 35.2 PTP Installation and Maintenance Manual - Mod.D Performa Winch...
  • Page 3: Technical Characteristics

    In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4: Installation

    It is the installer's responsibility to choose the correct screws ® taking account of the loads they will have to bear. Harken assumes no responsibility for incorrect installation of its winches or for an incorrect choice of mounting screws.
  • Page 5 Procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
  • Page 6 B. Remove the winch and drill the five 6.2 mm diameter holes. ® C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
  • Page 7: Maintenance

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it 35.2 PTP Installation and Maintenance Manual - Mod.D...
  • Page 8 Disassembly procedure Tools needed One medium flat-bladed screwdriver A number five hex key Rags To identify the various parts refer to the exploded view at the end of this Manual. Torque to be applied in assembly phase Carry out procedure as shown in the paragraph on winch installation and then do the following: 4.
  • Page 9 8. Remove the drum support n°15 9. Remove the washer n°12 Important: washer n°12 may remain inside the drum support! 10. Remove the gearing n°7 and remove the 11. Slide off gear n°3 pawls n°5. To facilitate the operation press the spring against the pawl with a blade.
  • Page 10 14. Remove the pawls n°5. To facilitate the 15. Remove washer n°9 and pin n°8 operation press the spring against the pawl with a blade. Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
  • Page 11 ® Apply Harken grease: 1. on assy socket screw ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE Harken grease to apply on all ®...
  • Page 12: Ordering Spare Parts

    Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it Harken ® limited worldwide warranty ®...
  • Page 13 Manufacturer Harken Italy S.p.A. ® Tech Service Via Marco Biagi, 14 Email: techservice@harken.it 22070 Limido Comasco (CO) Italy Tel: (+39) 031.3523511 Customer Service Fax: (+39) 031.3520031 Tel: (+39) 031.3523511 Email: info@harken.it Email: info@harken.it Web: www.harken.com Headquarters Harken , Inc. ®...
  • Page 14: Exploded View

    Exploded view 1/2 35.2 PTP Installation and Maintenance Manual - Mod.D Performa Winch ™...
  • Page 15 Exploded view 2/2 35.2 PTP Installation and Maintenance Manual - Mod.D Performa Winch ™...
  • Page 16: Parts List

    Assembly Socket W20-80 Socket Handle W20/80 S415130085 Washer Ø7.7xØ25x5.8 M0614303 Screw M8x20 UNI 6109 M6033794 Bushing XSM-1012-20 S678720082 Washer Ø56.5xØ75x1.5 *Available with service kit; see website www.harken.com **Winch product sticker 35.2 PTP Installation and Maintenance Manual - Mod.D Performa Winch ™...
