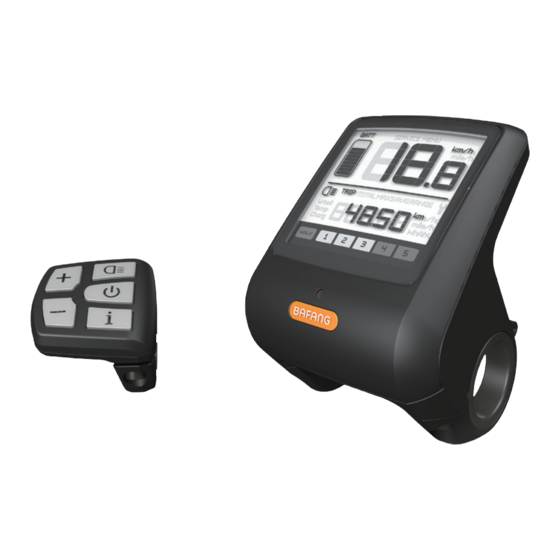

7 USER MANUAL FOR
DP C07.CAN
CONTENT
BF-UM-C-DP C07-EN November 2019
2
2
3
3
3
4
4
5
5
1
5
5
6
6
6
7
7
8
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP C07.CAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BAFANG DP C07.CAN

Summary of Contents for BAFANG DP C07.CAN

  • Page 1: Table Of Contents

    7 USER MANUAL FOR DP C07.CAN CONTENT 7.1 Important Notice 7.6.2 Selection of Support Levels 7.2 Introduction of Display 7.6.3 Selection mode 7.3 Product Description 7.6.4 Headlights / backlighting 7.6.5 Walk Assistance 7.3.1 Specifications 7.6.6 Battery capacity indication 7.3.2 Functions Overview 7.7 Settings...

  • Page 2: Important Notice

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C07.CAN BUS • The label marking is as follows: • The housing material is PC and Acrylic, and the button material is made of silicone.

  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Speed display (including speed in real time • Operating temperature: -20℃~45℃ (SPEED), top speed (MAXS) and average • Storage temperature: -20℃~50℃ speed (AVG), switching between km and • Waterproof: IP65 miles) •...

  • Page 4: Display

    7.4 DISPLAY Display of battery capacity in real time. Kilometer stand, Daily kilometers (TRIP) - Total kilometers (TOTAL). The display shows this symbol, if the light is on. Walking assistance Service: please see the service section. Menu. Speed unit. Digital speed display. Speed mode , top speed (MAXS) - Average speed (AVG).

  • Page 5: Normal Operation

    7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. If the "automatic shutdown time" is set to 5 minutes (it can be set with the "Auto Off" function, See "Auto Off"), the display will automatically be turned off within the desired time when it is not in operation.

  • Page 6: Headlights / Backlighting

    7.6.4 Headlights / backlighting Hold (>2S) the button to activate the headlight and the display backlight. Hold (>2S) the button again to turn off the headlight and the display backlight. The brightness of the backlight can be set 7.6.6 Battery capacity indication in the display settings "Brightness".

  • Page 7: Settings

    7.7 SETTINGS After the display is turned on, quickly press 7.7.1.2 Selection of unit in km/Miles (<0.3S) the button twice to access the When the system is on, quickly press “MENU” interface. pressing the (<0.3S) the button twice to access button, you can select and reset the options.

  • Page 8: View Information

    7.7.1.4 Set display brightness to choose between “0” or “1”. When the system is on, quickly press Chose 0 means turn off the notification. (<0.3S) the button twice to access Once you have chosen your desired selec- the “MENU” interface, repetitively press the tion, press (<0.3S) the button twice to button until the “bL1”...
  • Page 9 Once you have viewed your desired informa- can press (<0.3S) the button once to tion, press (<0.3S) the button twice to enter next item "Display hardware info". return to the main screen, or you can press (<0.3S) the button once to enter next item "Controller hardware info".
  • Page 10 7.7.2.7 BMS hardware info 7.7.2.9 Sensor hardware info When the system is on, quickly press When the system is on, quickly press (<0.3S) the button twice to access (<0.3S) the button twice to access the “MENU” interface, repetitively press the the “MENU”...
  • Page 11 Content Explanation Relative SOC (%) Absolute SOC (%) Charging cycles (number) Maximum not charging time (Hr) NOTE: This information is not displayed, if there are no torque sensor in the drive Recently not charging time (Hr) system. Number of battery cell 7.7.2.11 Battery Information Voltage of cell 1 (m/V) When the system is on, quickly press...

  • Page 12: Error Code Definition

    7.8 ERROR CODE DEFINITION The display can show the errors of a pedelec. If an error is detected, the wrench icon appears on the display and one of the following error codes will be displayed. Note: Please read the description of the error code carefully. If you see the error code, restart the system first.
  • Page 13 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
  • Page 14 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
