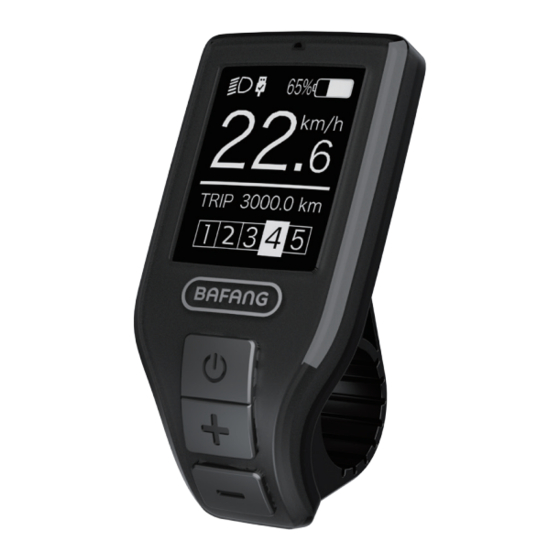

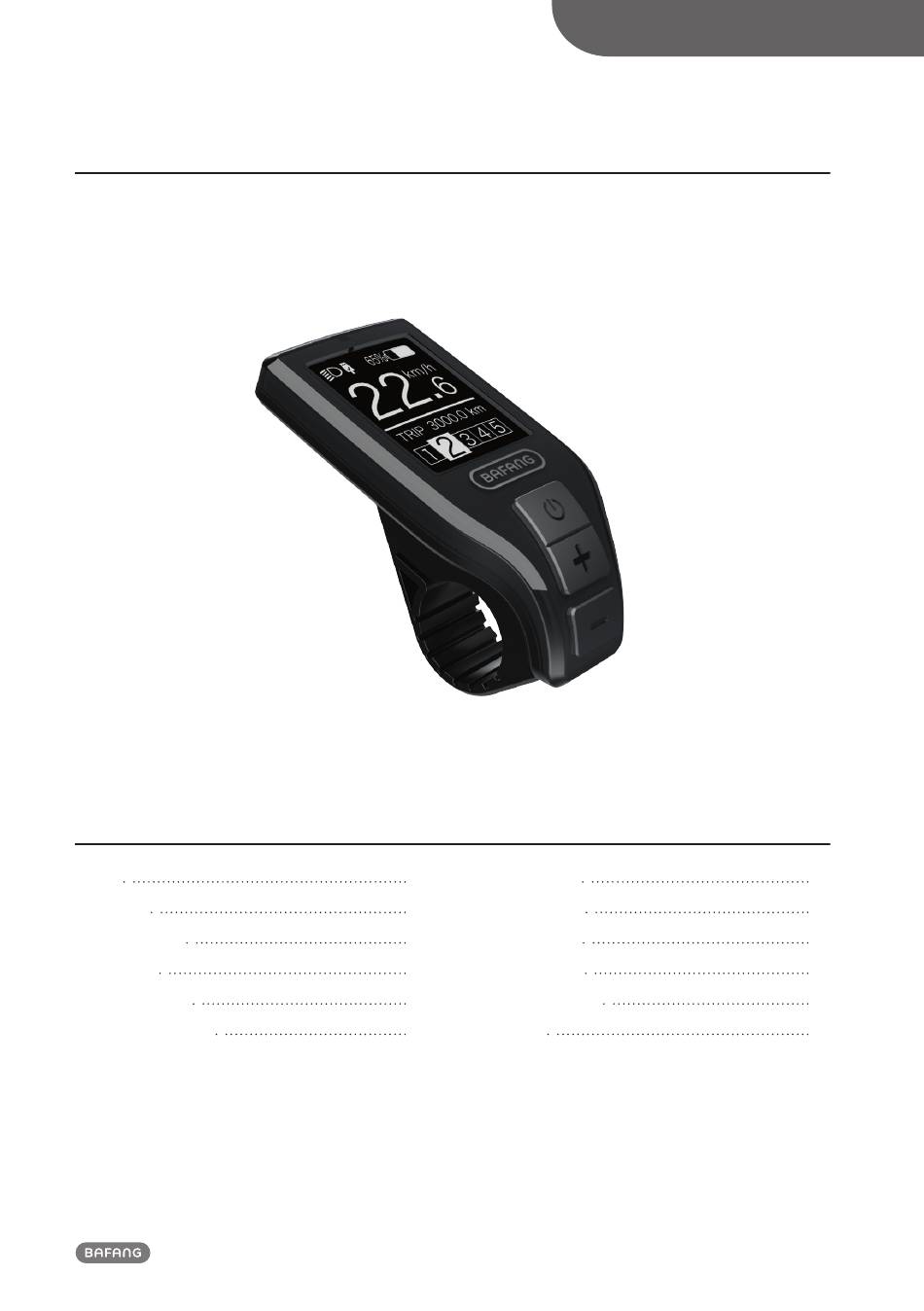

    CONTENT DP C230.CAN CONTENT Content Button definition Introduction Normal operation Overview drawing Functions setting Specifications BESST connection Functions overview Error code definition Normal indication area Installation DISPLAY MANUAL DP C230.CAN...

  • Page 2: Introduction

    A. Up line (as below) PD2526051205 - Parameter code DP C230.C 1.0 The last two lines: ① DP C230.C: BAFANG display mode DP C230.C 1.0 / 607K1Q7280001 - SN ② 1.0: Hardware version number B. Down line (as below) 607K1R7280001 ①...

  • Page 3: Overview Drawing

    OVERVIEW DRAWING OVERVIEW DRAWING DISPLAY MANUAL DP C230.CAN...

  • Page 4: Specifications

    • Rated voltage: 36V/43V/48V DC • Rated current: 10mA • Storage temperature: -30℃~70℃ • Maximum operating current: 30mA • IP level: IP65 • Power-off leakage current: <1uA • Storage ambient humidity: 30%-70% • Operating current supplied to controller: 50mA DISPLAY MANUAL DP C230.CAN...

  • Page 5: Functions Overview

    • Trip indication (Includes single-trip distance, If the display has this function) total distance and remaining distance) • Dual Bluetooth integreted. • Control and indication for push assistance. • USB charging port: ≤1A. • Control and indication for the headlight. DISPLAY MANUAL DP C230.CAN...

  • Page 6: Normal Indication Area

    Indicate the status of USB connection to color Arabic number; No chosen level indica- peripheral device. tion means level 0, no power assistance, means push assistance mode. Battery capacity indication: Indicate the current remaining capacity. Real-time speed indication: DISPLAY MANUAL DP C230.CAN...

  • Page 7: Button Definition

    BUTTON DEFINITION BUTTON DEFINITION ON/OFF, Mode Down DISPLAY MANUAL DP C230.CAN...

  • Page 8: Normal Operation

    0, the most powerful level is 5. When the display is on, the default mode is level 1, here “0” means no power assistance. (as shown in the figure below) Push assistance function DISPLAY MANUAL DP C230.CAN...
  • Page 9 Briefly press ”ON/OFF” button to switch to different data interfaces, then circularly to show single trip distance (Trip,km) → total distance (ODO,km) → maximum speed (MAX,km/h) → average speed (AVG,km/h) → remaining distance (RANGE,km) → energy consumption (CALORIES/CAL,KCal) → real- time output power (POWER,w) → riding time (TIME,min). DISPLAY MANUAL DP C230.CAN...
  • Page 10 USB charging indication • Bluetooth connection: Headlight status ① This display has Bluetooth module inte- grated and connectable to BAFANG’s own Error code smart phone application “BAFANG GO”. In addition, the SDK is open for customer to develop APP individually.

  • Page 11: Functions Setting

    Press and hold “+” & “-” button synchronously to enter into Display Setting interface, and briefly press “+” or “-” to switch to from “Setting” to “EXIT“ and then briefly press “ON/OFF” button to confirm the operation. Interface for selection Setting menu “Information”review DISPLAY MANUAL DP C230.CAN...
  • Page 12 “BACK” → “EXIT”to exit to the main interface. back to the main interface. Notice: “10%” is the weakest brightness and 100%” is the strongest brightness. DISPLAY MANUAL DP C230.CAN...
  • Page 13 After entering into “Information” menu, then briefly press “+” or “-” to go to ” Error Code”, and then briefly press ”ON/OFF” to review the last ten error codes record from “E-Code0” to “E-Code9”, then briefly press DISPLAY MANUAL DP C230.CAN...
  • Page 14 “BACK” → “EXIT” to exit back to the main interface. Notice: If the the battery is not a smart bat- tery, you won’t see any data from battery. DISPLAY MANUAL DP C230.CAN...

  • Page 15: Besst Connection

    • If the display show ”Write OK”, it means it is successful for BESST BOX to write basic information into the display. The informa- tion includes customer’s number, wheel size, speed limit. • Firmware update. DISPLAY MANUAL DP C230.CAN...

  • Page 16: Error Code Definition

    ERROR CODE DEFINITION DP C230.CAN display can show e-bike faults. When a fault is detected, the icon will be displayed. One of the following error codes will be displayed. Error Explanation Troubleshooting Brakes enabled Check whether a brake cable is stuck.

  • Page 17: Installation

    • Plug the female connector H from display to handlebar to an optimal position.(dedicated the male side h from the controller extension for φ22.2mm) bus cable. • Fix the clamp with a M3 hex socket screw. (1N.m ) DISPLAY MANUAL DP C230.CAN...
  • Page 18 DISPLAY MANUAL DP C230.CAN...
