Summary of Contents for BAFANG DP C244.CAN
-
Page 1: Table Of Contents
7 USER MANUAL FOR DP C244.CAN/ DP C245.CAN CONTENT 7.1 Important Notice 7.6.4 Headlights / Backlighting 7.2 Introduction of Display 7.6.5 Walk Assistance 7.3 Product Description 7.6.6 Battery Capacity Indication 7.6.7 USB Charge Function 7.3.1 Specifications 7.6.8 Bluetooth Function 7.3.2 Functional Overview 7.7 Settings... -
Page 2: Important Notice
• Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C244.CAN/ DP C245.CAN • The label marking is as follows: • The housing material is ABS; the LCD display... -
Page 3: Product Description
7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • CAN communication protocol • Operating temperature: -20℃~45℃ • Speed indication (including the real-time • Storage temperature: -20℃~60℃ speed, max. speed and average speed) • Waterproof: IP65 • Unit switching between km and mile •... -

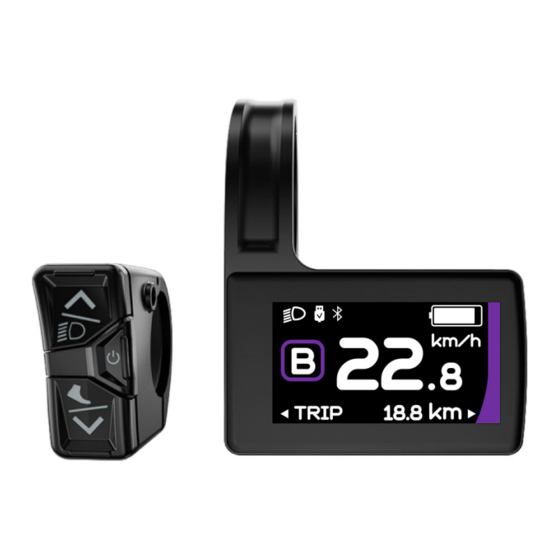

Page 4: Display
7.4 DISPLAY Headlight indication USB charge indication Service indication Bluetooth indication (only light up in DP C245.CAN) Power assist mode indication Multifunction indication Battery capacity indication Speed in real-time 7.5 KEY DEFINITION Up/ Headlight Power On/Off Down/ Walk assistance BF-UM-C-DP C244-EN July 2022... -
Page 5: Normal Operation
7.6 NORMAL OPERATION 7.6.1 Power ON/OFF Press and hold (>2S) to power on the HMI, and the HMI begin to show the boot up LOGO. Press and hold (>2S) again to power off the HMI. If the automatic shutdown time is set to 5 minutes (set in function "Auto Off"), the HMI will be auto- matically turned off within this set time, when it is not operated. -
Page 6: Multifunction Selection
7.6.3 Multifunction Selection Briefly press button to switch the different function and information. Circularly show single trip distance (TRIP,km) → total distance (ODO,km) → maximum speed (MAX,k- m/h) → average speed (AVG,km/h) → remaining distance (Range,km) → riding cadence (Cadence,rpm) →... -
Page 7: Battery Capacity Indication
7.6.8 Bluetooth Function Note: Only DP C245.CAN is the Bluetooth version. DP C245 equipped with Bluetooth 5.1 can be connected to the Bafang Go+ APP. (Bafang Go+ for Android and iOS This display can be connected to the SIGMA heartbeat band and shows it on display, and can also send data to the mobile phone. -
Page 8: Settings
7.7 SETTINGS After the HMI powered on, press and hold Then select the automatic Off time as “OFF”/ button (at the same time) to enter into “1”/“2”/“3”/“4”/“5”/“6”/“7”/“8”/“9”/“10” the setting interface. Briefly press (<0.5S) with the button. Once you have button to select “Setting”,“Information” chosen your desired selection, press the or “Exit”... -
Page 9: Information
Note: “OFF” means light sensor is off. Level Note: The default setting is OFF. If the ODO 1 is the weakest sensitivity and level 5 is the is more than 5000 km, the "Service" indica- strongest sensitivity. tion and mileage indication will flash for 4S. 7.7.2 "Information"... - Page 10 → b10 → b11 → b12 → b13 → d00 → d01 → Code Code Definition Unit d02 → … → dn). Press the button (<0.5S) to exit back to The number of cell the "Information" interface. Voltage Cell 1 Note: If the battery doesn't have commu- nication function, you won’t see any data Voltage Cell 2...
- Page 11 Press the button (<0.5S) to exit back to the "Information" interface. NOTE: If your Pedelec doesn't have torque sensor, "--" will be displayed. 7.7.2.7 “Error Code” Briefly press to select ”Error Code”, and then briefly press to enter, briefly press to view message of error for last ten times by “E-Code00”...
-
Page 12: Error Code Definition
7.8 ERROR CODE DEFINITION The HMI can show the faults of Pedelec. When a fault is detected, one of the following error codes will be indicated too. Note: Please read carefully the description of the error code. When the error code appears, please first restart the system. - Page 13 Error Declaration Troubleshooting 1. Check all connectors from the battery are correctly connected to the motor. Error with the temperature sensor inside of the battery 2. If the problem still occurs, please change the Battery. 1. Allow the pedelec to cool down and restart the The protection temperature system.
- Page 14 Error Declaration Troubleshooting 1. Check that all connections are connected correctly. 2. Please connect the pedelec to the BESST system to see if speed signal can be read by the BESST tool. Speed signal of the torque 3. Change the Display to see if the problem is solved. sensor has an error 4.
- Page 15 Error Declaration Troubleshooting Using the BESST tool update the controller to see if WDT circuit is faulty this resolves the problem. If not, please change the controller or contact your supplier. Total voltage from the battery is Please change the battery. too high Total voltage from the battery is Please Charge the battery.
-
Page 16: Warn Code Definition
7.9 WARN CODE DEFINITION Warn Declaration Troubleshooting Torque sensor's initialization is Restart the system and note not to step on the crank abnormal. hard when restarting. BF-UM-C-DP C244-EN July 2022...
