Summary of Contents for BAFANG DP C010.CB
-
Page 1: Table Of Contents
7 USER MANUAL FOR DP C010.CB CONTENT 7.1 Important Notice 7.6.6 Battery Capacity Indication 7.2 Introduction of Display 7.6.7 Bluetooth Function 7.3 Product Description 7.6.8 USB Charge Function 7.6.9 Service Tip 7.3.1 Specification 7.6.10 Riding Data Interface 7.3.2 Functional Overview 7.7 Settings... -
Page 2: Important Notice

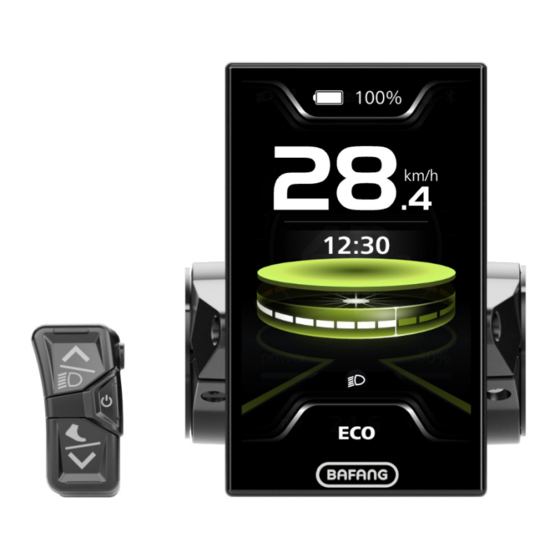

• Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C010.CB • The label marking is as follows: • The housing is made of PC+ABS; the LCD display windows is made of tempered glass;... -
Page 3: Product Description
7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specification • Battery capacity indicaton • 4.0“, 480*800 (RGB) TFT screen • Power-assisted mode selection • Power supply: 36/43/48/50.4/60/72Vdc • Speed indication (including the max. speed • Operating temperature: -20℃~45℃ and average speed) •... -
Page 4: Display
7.4 DISPLAY Battery capacity indication Warn code indication Speed in real-time Speed bar Power-assisted mode indication (4 Modes/ 6 Modes) Unit switching of speed (km/h, mph) Multifunction indication (Clock. TRIP, ODO, MAX, AVG, Range, CAL, Cadence, Time) Symbol indication (Headlight, USB, Service, Bluetooth) 7.5 KEY DEFINITION Up/ Headlight... -
Page 5: Normal Operation
7.6 NORMAL OPERATION 7.6.1 Power ON/OFF Press and hold (>2S) to power on the HMI, and the HMI displays the boot up LOGO. Press and hold (>2S) again to power off the HMI. 7.6.2 Power-Assisted Mode Selection When HMI powers on, briefly press (<0.5S) to select the power-assisted mode and change the output power of motor. -
Page 6: Headlight / Backlight
7.6.3 Headlight / Backlight The headlight can be switched on manually or automatically. When the HMI powers on, the auto light function works. Press and hold (>2S) to turn on the headlight and reduce the brightness of backlight. 7.6.5 Multifunction Selection Press and hold (>2S) again to turn off the headlight and increase the brightness of... -
Page 7: Battery Capacity Indication
HMI, controller, sensor and battery through the Bluetooth. This HMI can be connected to the Bafang Go+ APP through Bluetooth. 7.6.8 USB Charge Function When the HMI is off, insert the USB cable to the charge port on the HMI, and then turn on the HMI to start charging. -
Page 8: Riding Data Interface
7.6.10 Riding Data Interface Double press the button (<0.5S) to enter the interface of riding data. Press the button (<0.5S) to switch the pages. Dubble press the button (<0.5S) again to return the main interface. When the real-time speed is less than 5 km/h and the power assisted mode is not walk assistance, press and hold the button (>2S) to clear the riding data of Trip,... -
Page 9: Settings
7.7 SETTINGS 7.7.1 “Quick settings” Interface When you in the main interface, press and hold the button (at the same time) to enter the "Quick settings" interface. When you in the "Quick settings" interface, press and hold the button (at the same time) to exit back to the main 7.7.1.3 “Clock setting”... - Page 10 7.7.2 “Display settings” Interface When you in the "Quick settings" interface, briefly press the button (<0.5S) to select the "OTHERS" and enter the "Display settings" interface. 7.7.2.1 “Trip reset” Reset the single-trip Briefly press the button (<0.5S) 7.7.1.5 “Modes” Set the power-assisted to select the “Trip reset”...
- Page 11 7.7.2.3 “Service tip” Set the service tip 7.7.2.5 “Boot Password” Set the boot password Briefly press the button (<0.5S) to select the “Service tip” item, and briefly Briefly press the button (<0.5S) press the button to enter the item. Then to select the “Boot Password”...
-
Page 12: Information" Interface
7.7.3.4 “Controller info” Briefly press the button (<0.5S) to select ”Controller info”, and briefly press button to view the hardware version and software version. Press the button (<0.5S) again to exit back to the "Information" interface. 7.7.3 "Information" Interface Note: All information here cannot be changed, it is to be viewed only. -
Page 13: Language" Interface
7.7.4 “Language” Interface software version. Press the button (<0.5S) again to exit When you in the "Language" interface, back to the "Information" interface. briefly press the button (<0.5S) NOTE: If your e-bike doesn't have torque sensor, to select the desired language as "Eng- "--"... -
Page 14: Error Code Definition
The ebike system's parts are automatically monitored in real time. If a part is abnormal, the corresponding error code is displayed on the HMI. The DP C010.CB displays the error code on the HMI directly. The troubleshooting methods in the list are listed in order according to the fault probability and the operability of the related parts. - Page 15 Troubleshooting Code Cause Hub Motor System Mid Motor System 1. Check whether the motor cable is connected correctly or the cable (from motor to controller) is damaged. Phase wire in motor abnormal Replace the drive unit 2. Troubleshoot the faulty part: 1) Replace the motor 2) Replace the controller 1.
- Page 16 Troubleshooting Code Cause Hub Motor System Mid Motor System 1. Check whether the motor cable is 1. Check whether the spoke magnet connected correctly or the cable (from has fallen off or the clearance motor to controller) is damaged. between the spoke magnet and the speed sensor is within the normal 2.
- Page 17 2. Replace the battery Voltage difference between Replace the battery single cell The battery error codes of 42, 49, 4C only occur when the drive system is equipped with the smart BMS and Bafang CAN communication protocol. BF-UM-C-DP C010-EN November 2022...
