Page 1: Table Of Contents
CONTENT 500C MANUAL CONTENT Introduction & Buttons Display Settings Overview Drawing/Hardware Advanced Settings Caution & Interface Error Codes Function Overview © Copyright Ebike Essentials. All Rights Reserved. 500C MANUAL www.Bafangusadirect.com... -

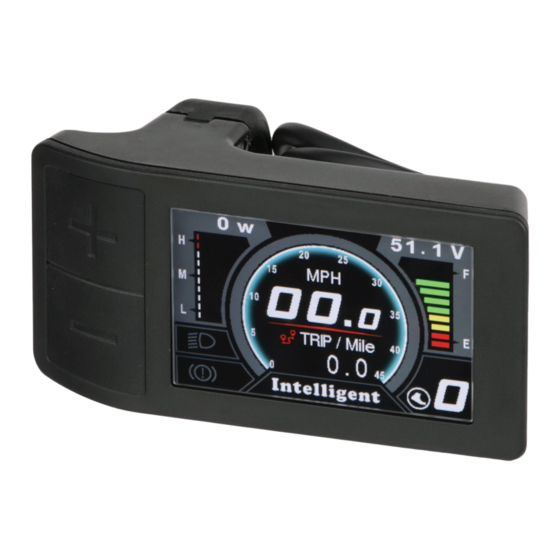

Page 2: Introduction & Buttons
INTRODUCTION & BUTTONS INTRODUCTION The 500C display includes the functions shown below: • Multiple Power Assist Levels • Walk Assist (slow speed motor assist) • Distance and Odometer (TRIP/TOTAL) • Backlight / Headlight • Speed based on current riding conditions •... -
Page 3: Overview Drawing/Hardware
OVERVIEW DRAWING/HARDWARE OVERVIEW DRAWING HARDWARE Display Unit M4 0.7 x 10mm Bolt (Display Bracket Bolt) Do not over tighten the display bracket bolt or it may crack the plastic! © Copyright Ebike Essentials. All Rights Reserved. 500C MANUAL www.Bafangusadirect.com... -
Page 4: Caution & Interface
CAUTION & INTERFACE CAUTION Avoid collisions to prevent damage or malfunction. The unit is not water resistant so protect it from water and other liquids. During installation do not overtighten the bolt or it will break the plastic bracket! INTERFACE Battery Gauge (Voltage or Percentage view) Watt Gauge... -
Page 5: Function Overview
FUNCTION OVERVIEW FUNCTION OVERVIEW Install the 500C display on the handlebar and adjust to your desired location, then secure tightly with the supplied bolt. ON/OFF: Speed & Mileage Mode Switch: To turn the unit on, press and hold the Press the button on the underside of the power button to start the display. - Page 6 FUNCTION OVERVIEW The function is designed for walking alongside the bicycle only. Please do not use this function when riding. Data Reset: With the power on, press and hold both buttons at the same time to reset the temporary data, which includes AVG Speed, MAX Speed, TRIP and TIME.
-
Page 7: Display Settings
DISPLAY SETTINGS DISPLAY SETTINGS Preparation: Auto Off: Make sure the display is turned ON. This is the amount of time of inactivity before the system turns off. Press To Enter Settings: button to change the time between the Press and hold button for few seconds to range of 1 –... -
Page 8: Advanced Settings
ADVANCED SETTINGS ADVANCED SETTINGS Preparation: Speed Limit: Press and hold the power button to start Press button to change the speed the display. limit between the range of 10km/h – 60 km/h. Default value is 25km/h. To Enter Advanced Settings: Press button to save your preferred Press and hold... - Page 9 ADVANCED SETTINGS Pedal Assist Levels: Password settings: Press button to change the number This option is used to lock the display device of pedal assist levels between 3, 5 and 9. and prevent unauthorized access. If activated, a 4-digit input password will be Note: The number of pedal assist levels (3, required to enter the normal user interface 5, or 9) you set in your display divides the...
-
Page 10: Error Codes
ERROR CODES ERROR CODES The 500C display will show the error codes below when the system encounters a problem. The error code will show on the bottom of the screen. See the error code definition below, Error code Error definition 04/05 H Throttle fault 06 H...
