7.7.2 “Display Settings” Interface 7.6.1 Power On/Off 7.7.3 "Information" Interface 7.6.2 Power-Assisted Mode Selection 7.7.4 “Language” Interface 7.6.3 Headlight / Backlight 7.7.5 “Theme” Interface 7.6.4 Walk Assistance 7.7.6 Navigation Mapping 7.8 Error Code Definition 7.6.5 Multifunction Selection BF-UM-C-DP C010.CN-EN June 2024... -
Page 2: Important Notice

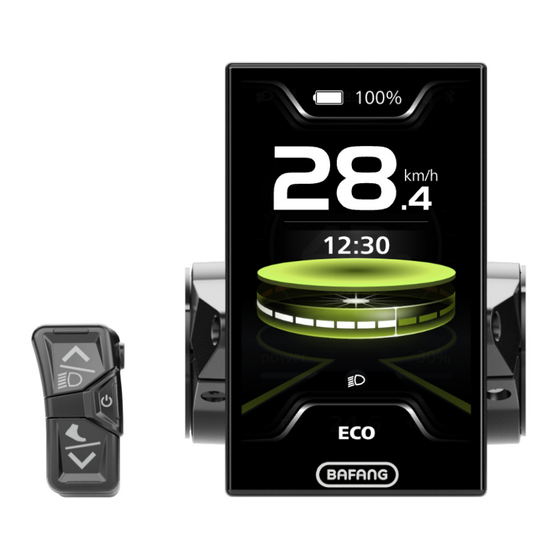

7.2 INTRODUCTION OF DISPLAY • Model: DP C010.CN • The housing is made of PC+ABS; the LCD display windows is made of tempered glass; the button is made of ABS:... -
Page 3: Product Description
• Error code and warn code indiaction • Bluetooth • USB charge (max. charge current: 1A) • Navigation mapping • Service indication • Clock indication • 3 Themes (Sporty, Fashion, Technology) • 6 Languages (English, German, Dutch, French, Italian, Czech) BF-UM-C-DP C010.CN-EN June 2024... -
Page 4: Display
Power-assisted mode indication (4 Modes/ 6 Modes) Unit of speed (km/h, mph) Multifunction indication (Clock. Trip, ODO, MAX, AVG, Range, CAL, Cadence, Time) Icon indication (Headlight, USB, Service, Bluetooth) 7.5 KEY DEFINITION Up/ Headlight Power on/off Down/ Walk assistance BF-UM-C-DP C010.CN-EN June 2024... -
Page 5: Normal Operation
The headlight can be switched on manually or automatically. When the HMI powers on, the auto light function works. Press and hold (>2S) to turn on the headlight and reduce the brightness of backlight. Press and hold (>2S) again to turn off the headlight and increase the brightness of backlight. BF-UM-C-DP C010.CN-EN June 2024... -
Page 6: Walk Assistance
HMI, controller, sensor and battery through the 7.6.5 Multifunction Selection Bluetooth. This HMI can be connected to the Bafang Briefly press button (<0.5S) to switch the Go+ APP through Bluetooth. different function and information. -
Page 7: Usb Charging
When the HMI is off, insert the USB cable to the charge port on the HMI, and then turn on the HMI to start charging. The maximum charge voltage is 5V and the maximum charge current is 1A. BF-UM-C-DP C010.CN-EN June 2024... -
Page 8: Settings
"Quick settings" interface. Briefly press the button (<0.5S) to select the desired “Theme”, and briefly Note: “OFF” means the "Auto off" function press the button to save the selection. is off. BF-UM-C-DP C010.CN-EN June 2024... -
Page 9: Display Settings" Interface
Then select the level of the light sensitivity as “OFF”/“1”/ “2”/“3”/“4”/“5” with the button and briefly press the button (<0.5S) to save and exit back to the "Display settings" interface. BF-UM-C-DP C010.CN-EN June 2024... -
Page 10: Information" Interface
7.7.3.1 “Wheel size” & “Speed limit” to enter the password when powering on. After entering the "Information" page, you Select the 4-digit number as “0”/“1”/“2”/“3” can see "Wheel size --inch" and "Speed limit /“4”/“5”/“6”/“7”/“8”/“9”with the --km/h" directly. BF-UM-C-DP C010.CN-EN June 2024... - Page 11 "Information" interface. 7.7.3.4 “HMI info” Briefly press the button (<0.5S) to select ”HMI info”, and briefly press the button to view the hardware version and 7.7.3.7 “Error code” software version. Briefly press the button (<0.5S) BF-UM-C-DP C010.CN-EN June 2024...
-
Page 12: Language" Interface
(Fashion) 7.7.6 Navigation Mapping The function is enabled when the user uses the HMI with BAFANG GO+. When the user 7.7.4 “Language” Interface starts navigation with the app, the naviga- tion route will map to the HMI in real time. -
Page 13: Error Code Definition
Note: Please read carefully the description of the error code. When the error code appears, please first restart the system. If the problem is not eliminated, please contact your dealer or technical personnel. See Appendix B for the detailed error code list. BF-UM-C-DP C010.CN-EN June 2024...
