  • Page 1: Table Of Contents

    7 DEALER MANUAL FOR DP C230.CAN CONTENT 7.1 Important Notice 7.7.3 Headlights / backlighting 7.2 Introduction of Display 7.7.4 Walk Assistance 7.3 Product Description 7.7.5 Selection Mode 7.7.6 Display of battery capacity 7.3.1 Specifications 7.7.7 USB charging function 7.3.2 Functions Overview 7.4 Display Installation...

  • Page 2: Important Notice

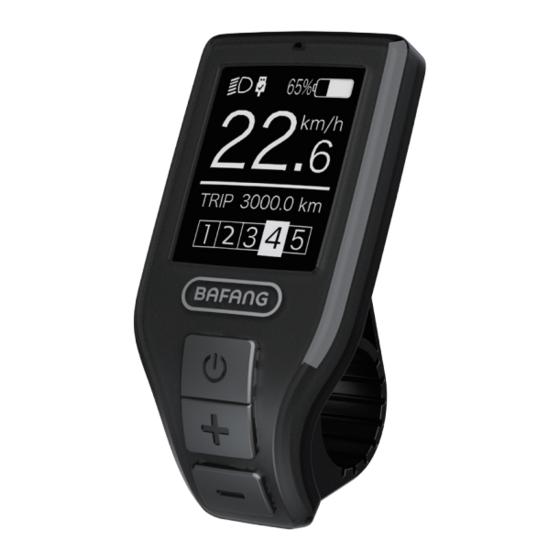

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C230.CAN BUS • The label marking is as follows: • The housing material is PC; the Display Glass...

  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION • Indication of performance support. 7.3.1 Specifications • Motor input power indicator. • Operating temperature: -20℃~45℃ • Time display for total journeys. • Storage temperature: -20℃~50℃ • Kilometer stand (including single-trip • Waterproof: IP65 distance, total distance and remaining •...

  • Page 4: Display

    7.5 DISPLAY The display shows this symbol, if the light is on. USB charging indicator displays the icon , if an external USB device is connected to the display. Speed display in real time. Trip: Daily kilometers (TRIP) - Total kilometers (ODO) - Top speed (MAX) - Average speed (AVG) - Range (RANGE) - Output power (POWER) - Energy Consumption (CALORIES) -...

  • Page 5: Normal Operation

    7.7 NORMAL OPERATION 7.7.1 Switching the System ON/OFF Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. If the "automatic shutdown time" is set to 5 minutes it can be set with the "Auto Off" function See "Auto Off", the display will automatically be turned off within the desired time when it is not in operation.

  • Page 6: Walk Assistance

    7.7.4 Walk Assistance The Walk assistance can only be activated with a standing pedelec. Activation: Press the button until this symbol appears. Next hold down the button whilst symbol is displayed. Now the Walk assistance will activate. The symbol will flashes and the pedelec moves approx.

  • Page 7: Display Of Battery Capacity

    7.7.6 Display of battery capacity The indicator displays the capacity in real time, when battery is fully charged, it shows 100%, if it is less than 5%, then the outline of indicator will flash, that means the battery needs to be charged immediately.

  • Page 8: Settings

    7.8 SETTINGS 7.8.1 “Setting” After the display is turned on, press the button (>2S) synchronously, to Press the button (<0.5S) to select access the “SETTINGS” menu. By pressing "Setting", and then briefly press the button (<0.5S) , you can select: button (<0.5S) to access the following Setting, Information or EXIT.
  • Page 9 7.8.1.3 “Sensitivity” Automatic Headlight press the button (<0.5S) to save and exit sensitivity to the "Setting" interface. Press the (<0.5S) button to high- light “Sensitivity” in the Setting menu, and then press (<0.5S) to select. Then with button choose between "0" / "...

  • Page 10: Information

    7.8.2 “Information” The "Speed Limit” cannot be changed, this information is here to be viewed only. Once the system is turned on, Press the button (>2S) synchronously, to access the "SETTINGS" menu. Press button (<0.5S) to select "Information", and then press the button (<0.5S) to confirm your selection.
  • Page 11 7.8.2.6 Torque Information Content Explanation Press the button (<0.5S) to high- Hardware Version light "Torque Info", and then press the (<0.5S) button to confirm. Once you have Software Version viewed your desired information press the NOTE: If no data is detected, "--" is displayed. button (<0.5S) to exit to the "Informa- tion"...

  • Page 12: Error Code Definition

    7.9 ERROR CODE DEFINITION The display can show the errors of a pedelec. If an error is detected, the error code appears on the display and one of the following error codes will be displayed. Note: Please read the description of the error code carefully. If you see the error code, restart the system first. If the problem is not resolved, please contact your dealer.
  • Page 13 Error Declaration Troubleshooting 1. Check all connectors from the battery are correctly connected to the motor. Error with the temperature sensor inside of the battery 2. If the problem still occurs, please change the Battery. 1. Allow the pedelec to cool down and restart the The protection temperature system.
  • Page 14 Error Declaration Troubleshooting 1. Check that all connections are connected correctly. 2. Please connect the pedelec to the BESST system to see if speed signal can be read by the BESST tool. Speed signal of the torque 3. Change the Display to see if the problem is solved. sensor has an error 4.
  • Page 15 Error Declaration Troubleshooting Using the BESST tool update the controller to see if WDT circuit is faulty this resolves the problem. If not, please change the controller or contact your supplier. Total voltage from the battery is Please change the battery. too high Total voltage from the battery is Please Charge the battery.
  • Page 16 BF-DM-C-DP C230-EN November 2019...
