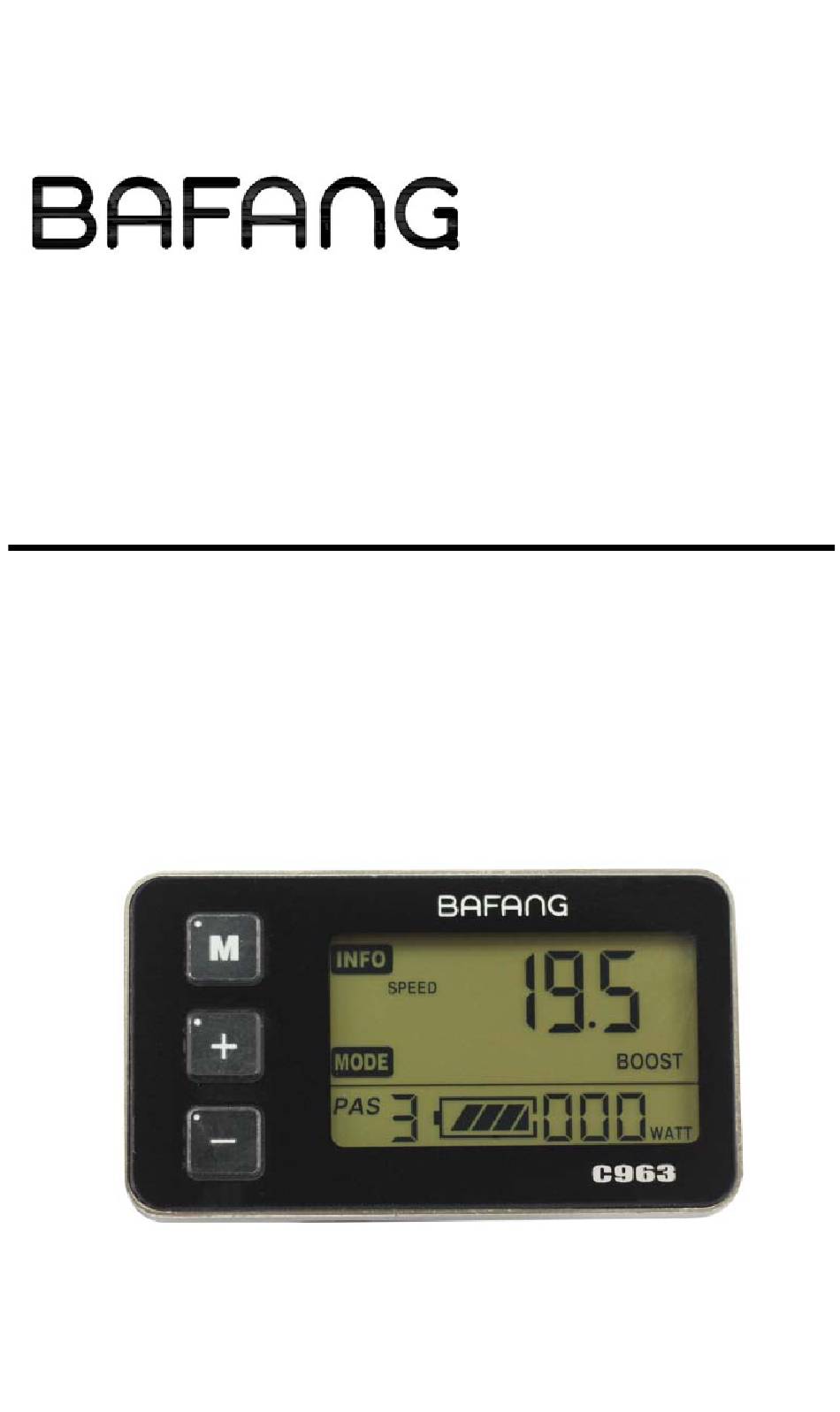

- Page 1 Manual C963...
-
Page 2: Table Of Contents
Contents Preface···································································· 3 Appearance & size····················································· 4 Material & color··················································· 4 Function & button·······················································5 Function·····························································5 Display······························································ 5 Button································································6 Attentions································································· 6 Installation································································ 7 Operation································································· 7 ON/OFF····························································· 7 Interface·····························································7 Assist walking····················································· 8 Backlight···························································· 9 Levels································································9 Capacity··························································· 10 Power······························································ 10 Error code·························································10 Setting····································································11 Preparation·······················································... - Page 3 Speed limit··················································13 FAQ·······································································14 Warranty·································································14 Wire definition··························································15 Software version······················································ 16 Error code·······························································17 - 2 -...
-
Page 4: Preface
Preface Dear, Please read this manual before using it. - 3 -... -
Page 5: Appearance & Size
Appearance and size Material & color C963 made of PC is able to work well under -20℃to 60℃. Picture and size (Unit: mm) - 4 -... -
Page 6: Function & Button
Function & button Function C963 gets many function for your enjoying riding. Show context: ◆Capacity ◆Power ◆Speed (Speed/ MAX/AVG) ◆Distance (TRIP/ ODO) ◆TRIP time ◆ Assist walking ◆Backlight ◆Error code ◆ Configuration setting Interface - 5 -... -
Page 7: Button
Button C963 gets three buttons: MODE , UP DOWN Attention: Don’t plug in/out this display when power on. Avoid collision. Keep the membrane for waterproof performance. Don’t abuse parameters resetting, in case out of working. Call service if display out of working. -
Page 8: Installation
Installation Install display on handlebar and adjust it’s location. Plug it into controller when power off. ON/OFF Long press to start display. Long press again to switch off. When off, display dose’t consume battery. Its leak current< 1uA. Display off automatically after no any operation on vehicle for three munites. -
Page 9: Assist Walking
Speed TRIP time TRIP Assist walking Long press , to start assist walking. PUS highlights on scree. Vehicle goes at 6km/h. Only in case of pushing, can this function be used. Please don’t abuse when riding. - 8 -... -
Page 10: Backlight
Backlight Long pree to switch on backlight on scree, and front light on as well if front light available. Long press again to switch it off. Note: Automatical backlight is available if controller gets this function. Backlight & front light on automatically according to the lightness outside if controller gets light sensor inside. -
Page 11: Capacity
Capacity Five sections highlights when battery is full. Frame flashes at 1 Hz when low power. Frame flashes at 1 Hz when low power. Power Output power is available on screen as below: Error code When something goes wrong with system, error code will flash on scree. -
Page 12: Setting
Setting Preparation Makes sure good connection then power on. Setting Long press to start display. Long pree press to setting mode. TRIP clearance Bottom left of screen shows set 1. TC means TRIP clearance. TC-N/TC-Y for option. Default TC-N means don’t, TC-Y means do. Press save and skip to backlight setting. -
Page 13: Backlight
Backlight Bottom left of screen shows set 2. BL meas backlight. Level option 1/2/3. Default value 1. Press to change the brightness. Press to save and skip to wheel size setting. Or long press to save and exit. Wheel size Bottom left of screen shows set 3. -
Page 14: Speed Limit
Speed limit Bottom left of screen shows set 4. LS means speed limit. Limit range from 12Km/h to 40Km/h. Press to change the limit. Press to save and loop to TRIP setting . Or long press save and exit. Default 25Km/h. - 13 -... -
Page 15: Faq
Q: Why can’t it be on? A: Please check power on/off and wires. Q: What to do to when error? A: Please check the probable problem according to the error code list. Please call service if user can’t remove error. Warranty Under warranty: 1\ Warranty term 24 months. -
Page 16: Wire Definition
Wire definition: - 15 -... -
Page 17: Software Version
Software version This C963 adopts Bafang protocol V4.0, and only comminate with controller installed this protocol. Error may happen if with other protocol. - 16 -... -
Page 18: Error Code
Attached list: Error code Definition Throttle abnormality Low voltage protection Over voltage protection Hall sensor abnormality Phase line abnormality Controller overheat Temperature sensor in controller abnormality Current sensor abnormality Stator overheat Temperature sensor in motor abnormality Speed sensor abnormality Communication abnormality in BMS Front light abnormality Front light sensor abnormality Communication abnormality in system...
