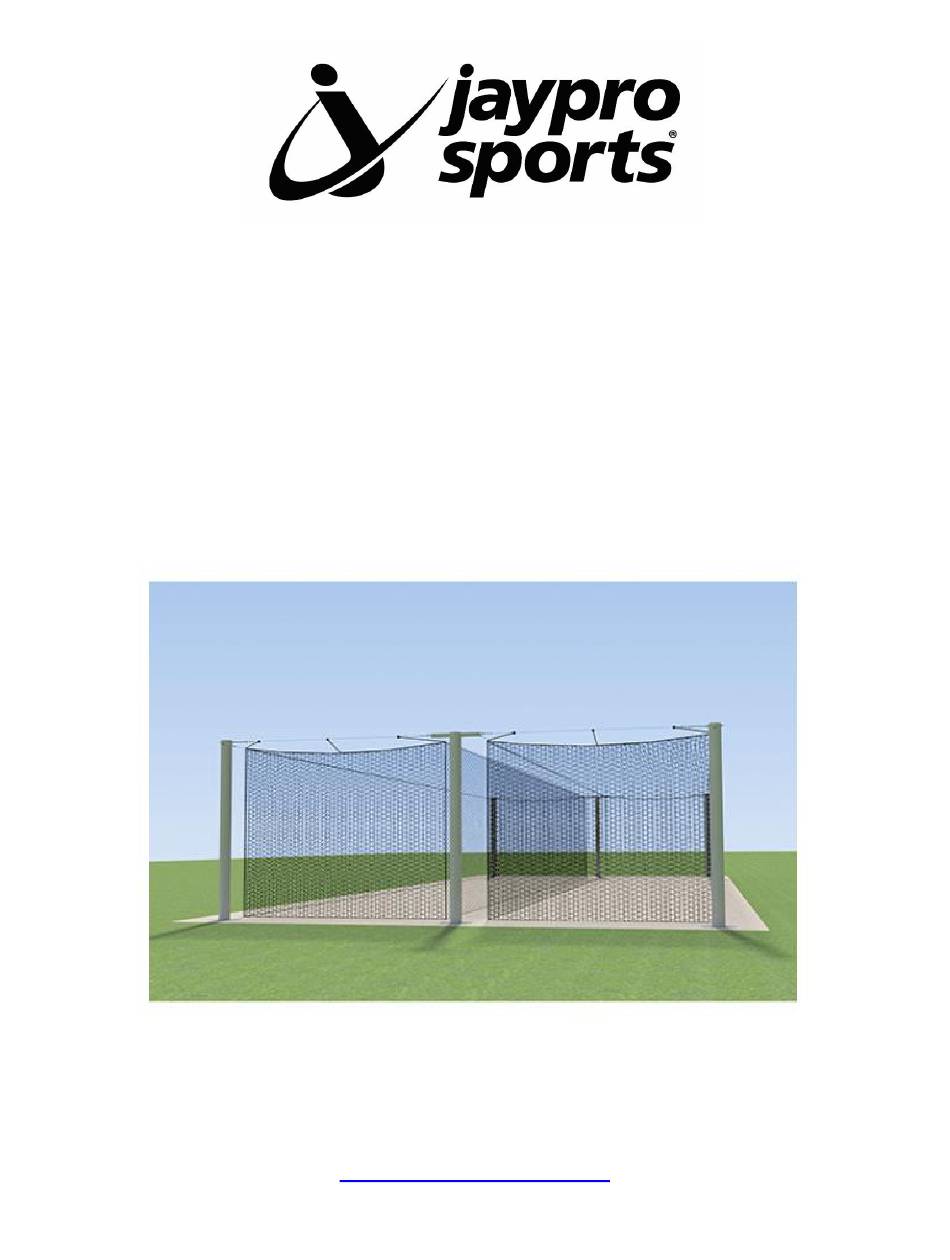

- Page 1 -- MPCTF-55D – -- MPCTF-70D – 55ft and 70ft MEGA POST & CABLE OUTDOOR BATTING TUNNEL FRAME CAGE Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Page 1 of 11...
- Page 2 MEGA POST & CABLE OUTDOOR BATTING TUNNEL FRAME CAGE PARTS LIST (QTY: SINGLE UNIT) ITEM IMAGE DESCRIPTION 17’-0” UPRIGHT POST P/N: MBT-8U CENTER BRACKET WELDMENT P/N: MBT-8CUA 1/4” CABLE THIMBLE P/N: HM6079 3/8” QUICK-LINK P/N: HM6052 1/4” CABLE CLAMP P/N: HM6078 1/2"...
- Page 3 ITEM IMAGE DESCRIPTION 1/2”-13 EYE NUT P/N: HN5078 1/2”-13 x 10” LONG HEX BOLT P/N: HS5384 1/2”-13 x 9” LONG HEX BOLT P/N: HS5385 1/2”-13 x 5” LONG HEX BOLT P/N: HS5062 1/2” STD FLAT WASHER P/N: HW2044 1/2” SPLIT WASHER P/N: HW2124 1/2”-13 HEX NUT P/N: HN704...
-
Page 4: General Maintenance
AS A WALL OR CHAIN LINK FENCE. 11. TUNNEL NETS SHOULD BE REMOVED AND STORED PRIOR TO AN IMPENDING STORM WITH HIGH WINDS. 12. CONTACT JAYPRO SPORTS FOR REPLACEMENTS NETS AND HARDWARE GENERAL MAINTENANCE: • Batting tunnels nets should be removed and stored during the offseason or when not in use. - Page 5 1) Select a site for the tunnel frame that is flat and clear of obstructions. The ground should be level and free of debris. The minimum area required for a MPCTF-55D is 64 ft x 36 ft. - that required for MPCTF-70D is 79 ft x 36 ft.
- Page 6 Figure 1 Page 6 of 11...
- Page 7 5/8” x 48” STEEL REBAR Wired Together (By Others) Note: These are suggested dimensions for average soil conditions, consult local building codes. Figure 2 • Before Digging, Contact your local utility companies to locate buried electrical, gas, and water lines. Check for overhead utilities. •...
- Page 8 II. Assembly: Note: See Details A, B, C & D. 1) Make up the ends of the cable as shown in figure 4 of the 1/4” aircraft cable using thimbles & cable clamps. Note proper cable clamp positioning. Tighten the clamps on one end, but leave the other end somewhat loose to enable adjusting.
- Page 9 Detail D Detail B Snap Hooks, Spaced Detail A Approximately Every 3’ Figure 4 Page 9 of 11...
- Page 10 1/2”-13 x 9” LONG HEX BOLT 1/2” FLAT WASHER 1/2” FLAT WASHER 1/2” LOCK WASHER 1/2” EYE NUT Detail A Typical Corner Post 1/2”-13 x 9” LONG HEX BOLT 1/2” FLAT WASHER 1/2”-13 x 10” LONG HEX BOLT 1/2” FLAT WASHER 1/2”-13 HEX NUT 1/2”...
- Page 11 Detail C Plan View of Quick-Link & Turnbuckle Corner Assembly Detail D at center of net. Page 11 of 11...
