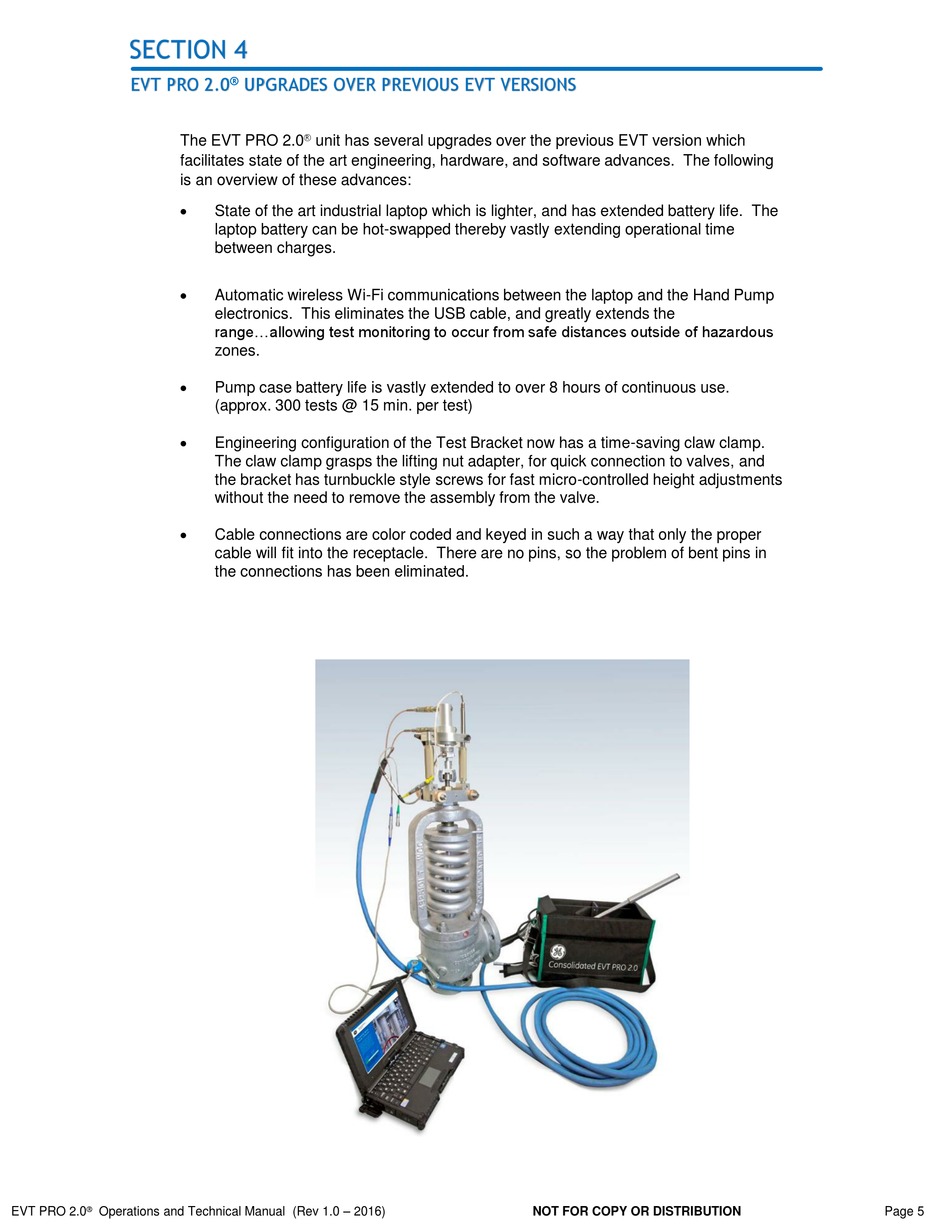

SECTION 4
EVT PRO 2.0
The EVT PRO 2.0
facilitates state of the art engineering, hardware, and software advances. The following
is an overview of these advances:





® Operations and Technical Manual (Rev 1.0 – 2016)
EVT PRO 2.0
®
UPGRADES OVER PREVIOUS EVT VERSIONS
®
unit has several upgrades over the previous EVT version which
State of the art industrial laptop which is lighter, and has extended battery life. The
laptop battery can be hot-swapped thereby vastly extending operational time
between charges.
Automatic wireless Wi-Fi communications between the laptop and the Hand Pump
electronics. This eliminates the USB cable, and greatly extends the
range...allowing test monitoring to occur from safe distances outside of hazardous
zones.
Pump case battery life is vastly extended to over 8 hours of continuous use.
(approx. 300 tests @ 15 min. per test)
Engineering configuration of the Test Bracket now has a time-saving claw clamp.
The claw clamp grasps the lifting nut adapter, for quick connection to valves, and
the bracket has turnbuckle style screws for fast micro-controlled height adjustments
without the need to remove the assembly from the valve.
Cable connections are color coded and keyed in such a way that only the proper
cable will fit into the receptacle. There are no pins, so the problem of bent pins in
the connections has been eliminated.
NOT FOR COPY OR DISTRIBUTION Page 5
