SECTION 6
EVT PRO 2.0
The EVT PRO 2.0
and hydraulic lifting cylinders 1 and 3. The lifting cylinders are separated between the
Load Cell case and the Bracket Case for better weight distribution for transport. Various
other items are housed in this case. Please refer to Figure 6.1 below for part identification.
Acoustic Sensor
Clamp
® Operations and Technical Manual (Rev 1.0 – 2016)
EVT PRO 2.0
® LOAD CELL CASE
®
Load Cell Case is a Pelican style case which houses the 4 load cells
Acoustic Sensor
20 kN Load Cell
Lift Sensor
Extra storage space
for Acoustic and Lift
Sensor Cables

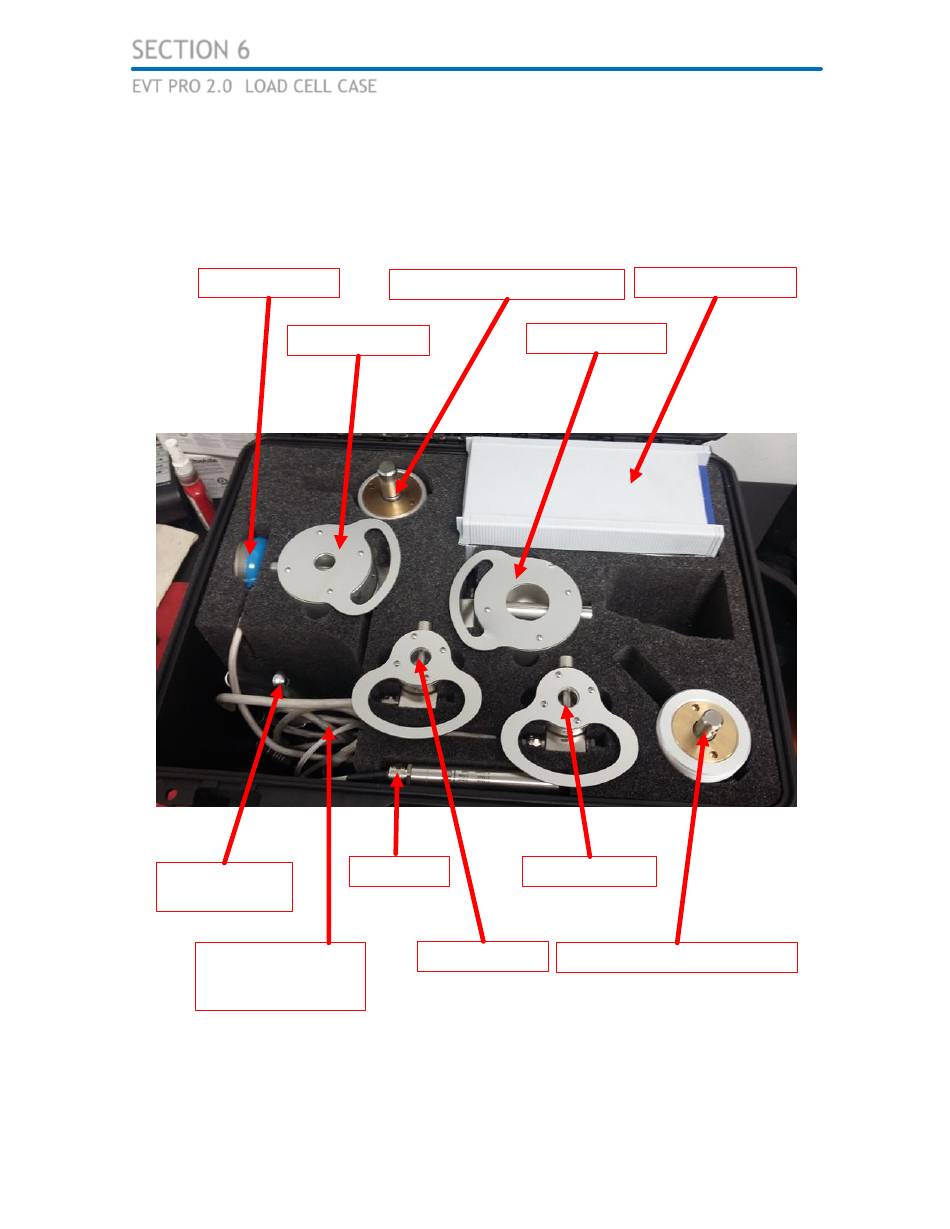

Figure 6.1 – EVT PRO 2.0
1kN Hydraulic Lift Cylinder #1
50 kN Load Cell
10 kN Load Cell
1 kN Load Cell
20 kN Hydraulic Lift Cylinder #3
®
Load Cell Case Assembly
NOT FOR COPY OR DISTRIBUTION
Spindle Adapter Kit
