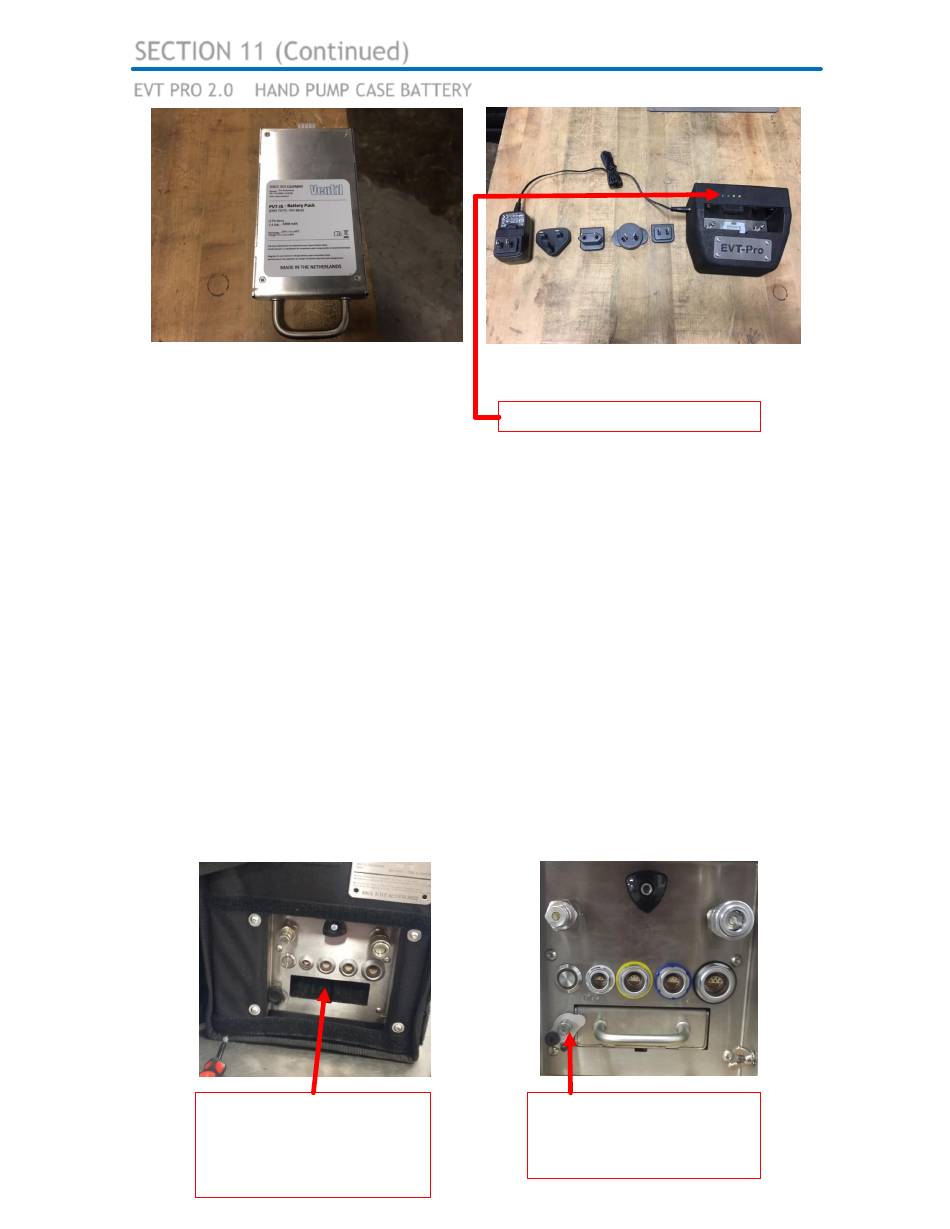

Figure 11.1 – Hand Pump Case Battery
The EVT PRO 2.0
battery case. Refer to figure 11.1. The battery charger is equipped with LED charging
status lights to indicate each of the batteries charging status. The battery charger LED
status light meaning is as follows:
® Operations and Technical Manual (Rev 1.0 – 2016)
EVT PRO 2.0
® HAND PUMP CASE BATTERY
®
Hand Pump Case Battery is actually two (2) batteries enclosed in one
• Red – Power is on, Adapter is on.
• Green 1 – Battery 1 is OK.
• Green 2 – Battery 2 is OK.
• Blinking Yellow 1 – Charging Battery 1.
• Faster Blinking Yellow 1 – Charging Battery 1 is almost full.
• Blinking Yellow 2 – Charging Battery 2.
• Faster Blinking Yellow 2 – Charging Battery 2 is almost full.
• Both Green (2) and Red LED's on – Battery 1 and 2 fully charged
NOTE 1: If you only see one (1) Green LED, that means the battery pack is bad.
"Two is a GO, One is a NO"
NOTE 2: If the battery pack is fully loaded and you place the battery on the charger again,
Only the RED LED will show because the battery pack is overload protected.
The Hand Pump Case Battery
receptacle is located on the
interface panel, which is on the
side panel of the Hand Pump
case.
Figure 11.2 – Universal Battery Charger
Battery Charging LED Status lights
This mechanical lock device
holds the battery firmly in
place, and prevents accidental
disconnection.
